Description
Overview:

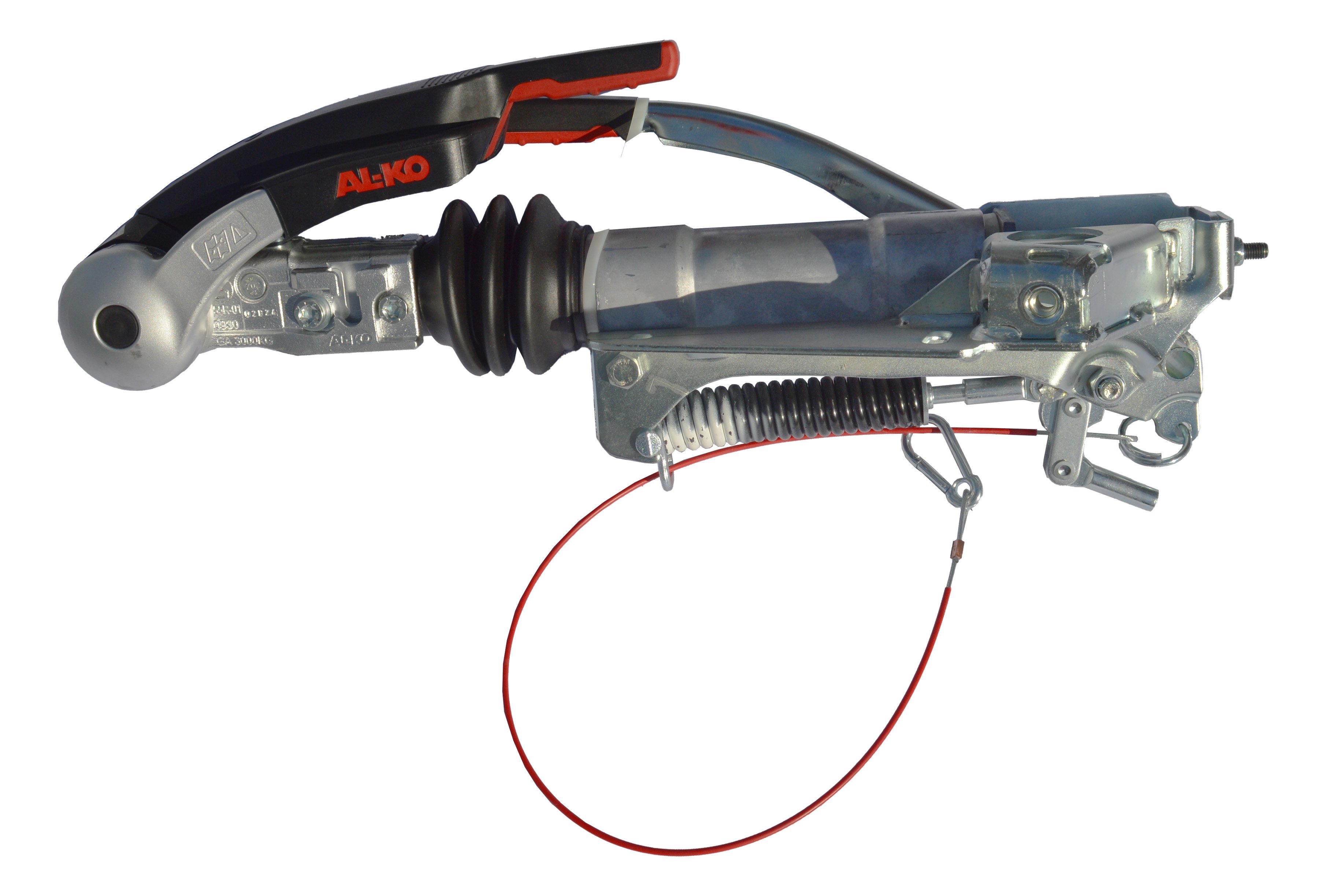

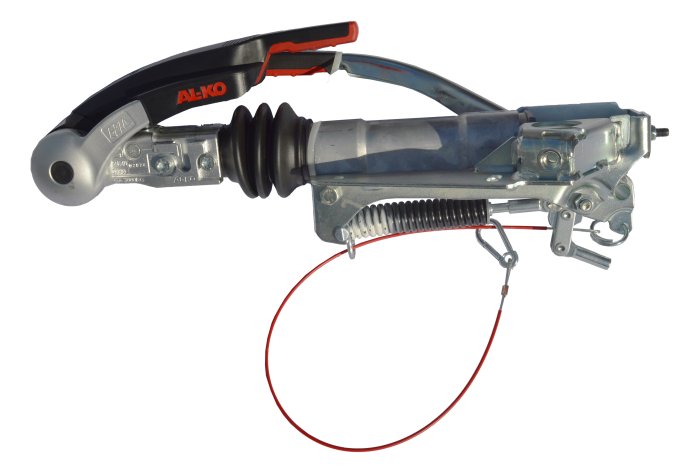

This is a complete AL-KO overrun device assembly to the Euro-2 150V pattern with an AKS 2051 stabiliser coupling head (MPN 764 179). It is a bolt-on, V-drawbar (A-frame) overrun brake unit designed for braked trailers and caravans using AL-KO Euro-2 geometry. The assembly transmits the compressive force generated under deceleration through a damped overrun mechanism to apply the trailer's brakes, improving stability and reducing stopping distances in tow. Supplied as a combined overrun housing and coupling head, it is intended for service replacement of worn or damaged units on compatible chassis. The steel construction and protective finish are suited to road use on leisure and commercial trailers alike. Use this assembly where the original equipment specification calls for an AL-KO Euro-2 150V device with an AKS 2051 stabiliser-type coupling head.
Key Features:
- AL-KO Euro-2 150V overrun device assembly for braked trailers and caravans
- Supplied with AKS 2051 stabiliser coupling head for improved towing control
- V-drawbar (A-frame) mounting pattern to suit Euro-2 installations
- Damped overrun mechanism for progressive brake application
- Robust steel body with corrosion-resistant protective finish
- Mechanical linkage output for connection to existing trailer brake system
- Direct replacement for units built to the Euro-2 150V specification
- Suitable for use on leisure, commercial and plant transport trailers using AL-KO running gear
- Supplied as an assembled overrun housing and coupling head to simplify installation
- Designed to integrate with standard AL-KO handbrake and brake rod/cable arrangements where fitted
Typical Applications:
Used on the A-frame of braked trailers and caravans originally equipped with AL-KO Euro-2 150V overrun devices and an AKS 2051 stabiliser coupling head. Common across touring caravans, general-duty braked trailers, plant and equipment transporters, and car transporters built on AL-KO chassis or running gear that follow the Euro-2 V-drawbar mounting pattern.
Also known as:
AL-KO Euro-2 150V Overrun Brake Coupling; Overrun Hitch Assembly; Stabiliser Hitch AKS 2051; Brake Overrun Device; AL-KO 764179
Product Specifications
| L&S Part No. | 764 179 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
