Description
Overview:

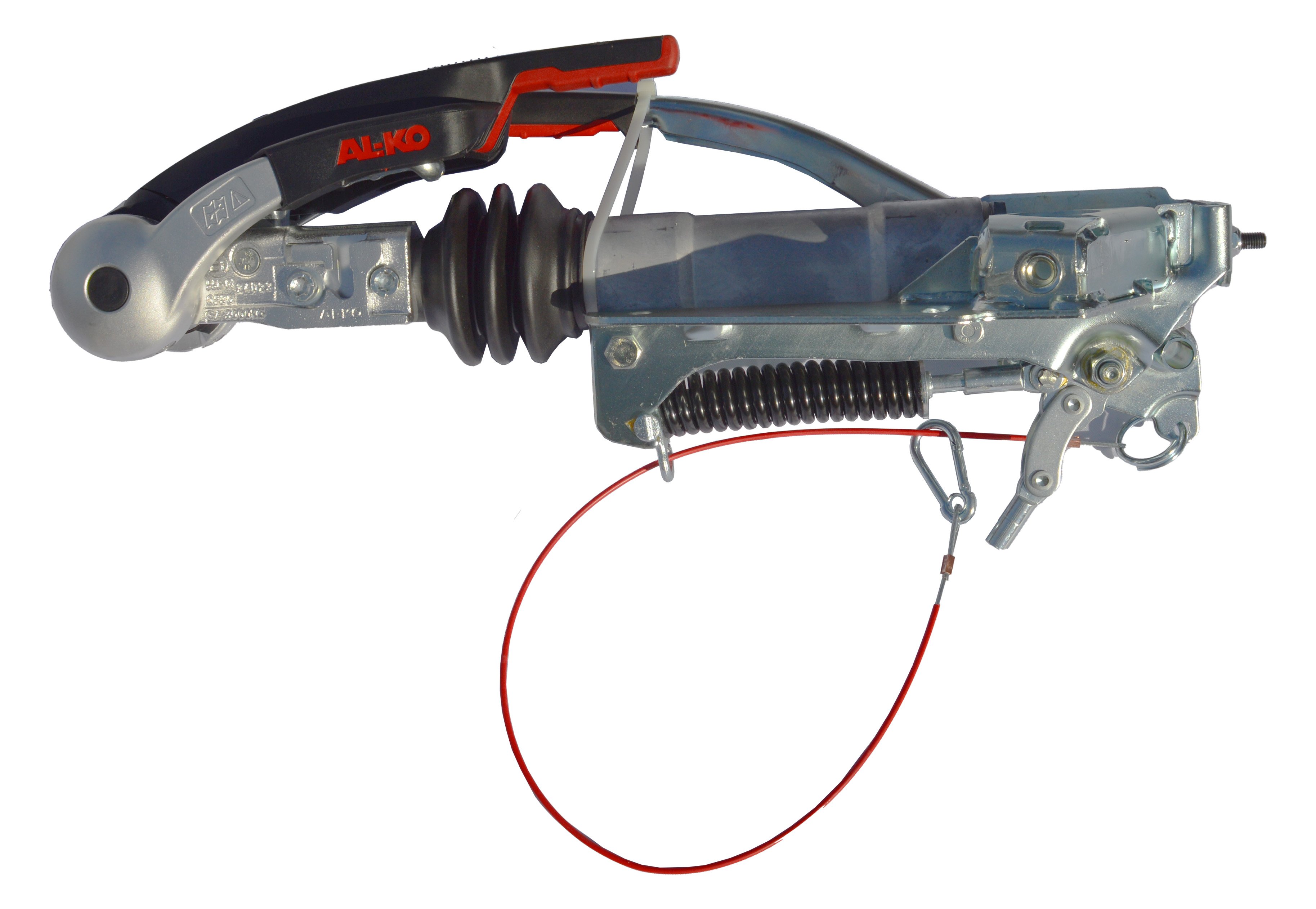

The Overrun Brake Device Assembly To Suit AL-KO Euro-2 200V, AKS 2361 (MPN 764 181) is a complete inertia-braking actuator for braked trailers and caravans built on the AL-KO Euro-2 A-frame standard. It mounts at the front of the drawbar to convert tow-vehicle deceleration into controlled brake application via the trailer's brake rod and cables. The assembly uses a sliding drawtube and damper to modulate braking effort smoothly, helping maintain stability and reducing shock loads through the towing setup. Built around a robust steel housing, it is designed for fleet, hire and long-distance use. This unit is configured to suit the Euro-2 200V family and to accept the AKS 2361 stabilising coupling head that clamps to a standard 50 mm towball. It is intended as a direct replacement for worn or damaged overrun devices where like-for-like fit is required, restoring correct braking performance and compliance on road-going braked trailers and caravans.
Key Features:
- Suits AL-KO Euro-2 200V overrun systems on braked trailers and caravans
- Compatible with AKS 2361 stabilising coupling head for 50 mm towballs
- Pre-assembled overrun actuator for straightforward replacement of existing units
- Heavy-duty steel body designed for durability in fleet and plant hire use
- Inertia operation using an internal sliding drawtube and damper for progressive braking
- Euro-2 layout with provision for brake rod connection and safety breakaway cable
- Helps restore correct braking performance and towing stability after wear or damage
- Suitable for professional workshop installation and routine service environments
Typical Applications:
Fitted at the front of the A-frame drawbar on braked caravans, general-duty trailers, plant and equipment transporters, and similar towing rigs using AL-KO Euro-2 200V overrun gear. Selected where the coupling head is the AKS 2361 stabiliser type and a like-for-like Euro-2 200V replacement overrun device is required to maintain safe, reliable braking in service.
Also known as:
Overrun Coupling
Inertia Brake Coupling
Surge Brake Actuator
Drawbar Overrun Unit
AL-KO Euro-2 200V Overrun Device
AKS 2361 Overrun Assembly
Product Specifications
| L&S Part No. | 764 181 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
