Description
Overview:

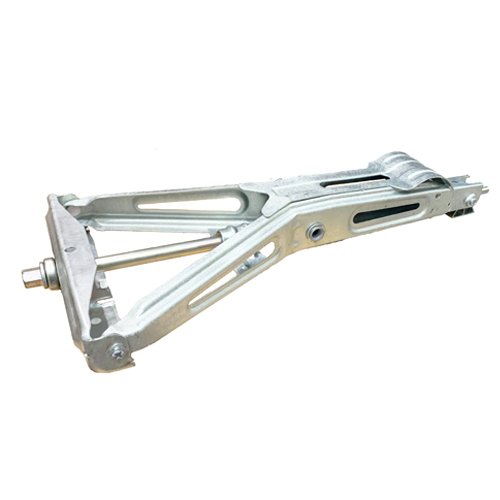

Heavy-duty AL-KO Stabilform corner steady for supporting and stabilising caravans during setup and standing. Galvanised steel construction for corrosion resistance. Designed for direct fitment to caravans built on AL-KO chassis. Supplied as a replacement unit, matching AL-KO specification ETI 811502 and superseding the obsolete part 205821.
Specification:
- Nose load capacity: 1000 kg
- Suitable for caravans up to 2000 kg gross weight
- Extended leg length: 470 mm
- Overall length (retracted): 700 mm
- Mounting hole centres: 190 mm
- Overall width across mount: 290 mm
- Finish: Galvanised steel
- AL-KO reference: ETI 811502
- Replaces: 205821
Typical Applications:
Used at the caravan corners to steady and level units fitted with AL-KO chassis during site setup or maintenance. Suitable as a like-for-like replacement where dimensions and mounting centres match the original installation.
Product Specifications
| L&S Part No. | 764 128 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
