Description
Overview:

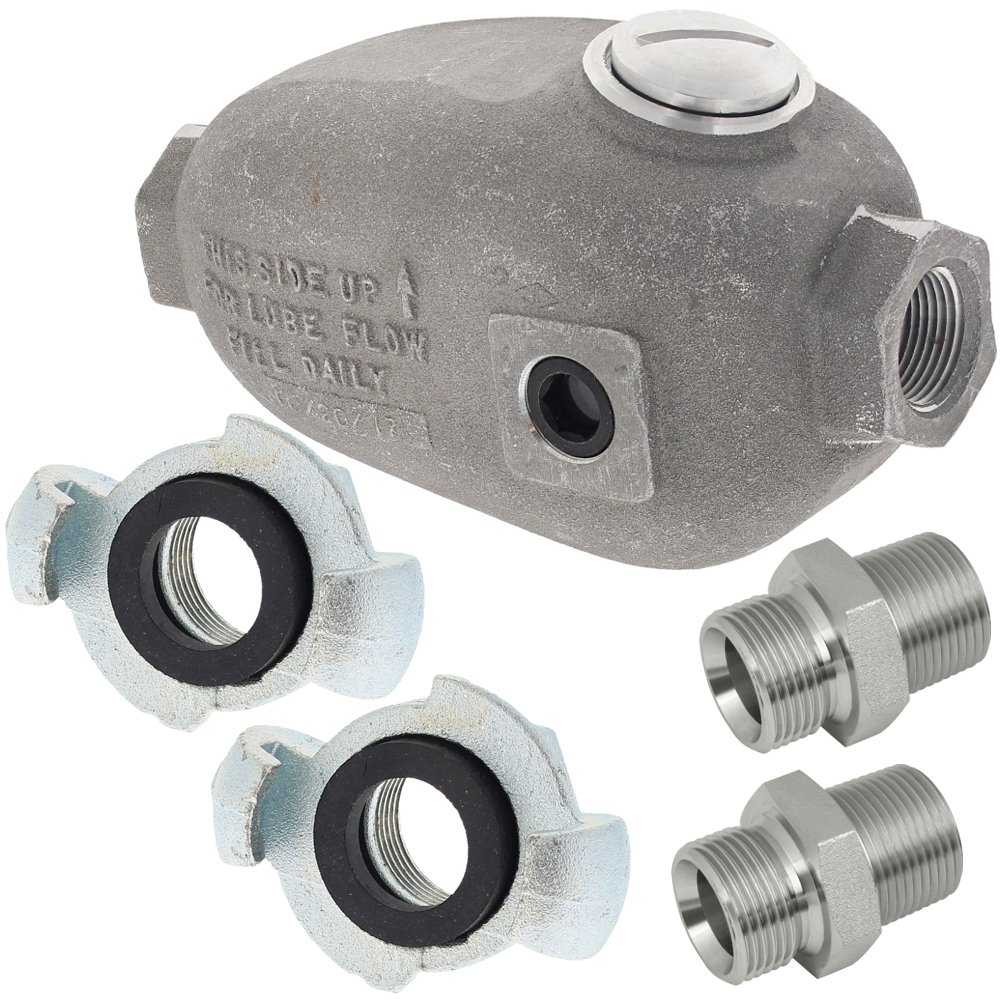

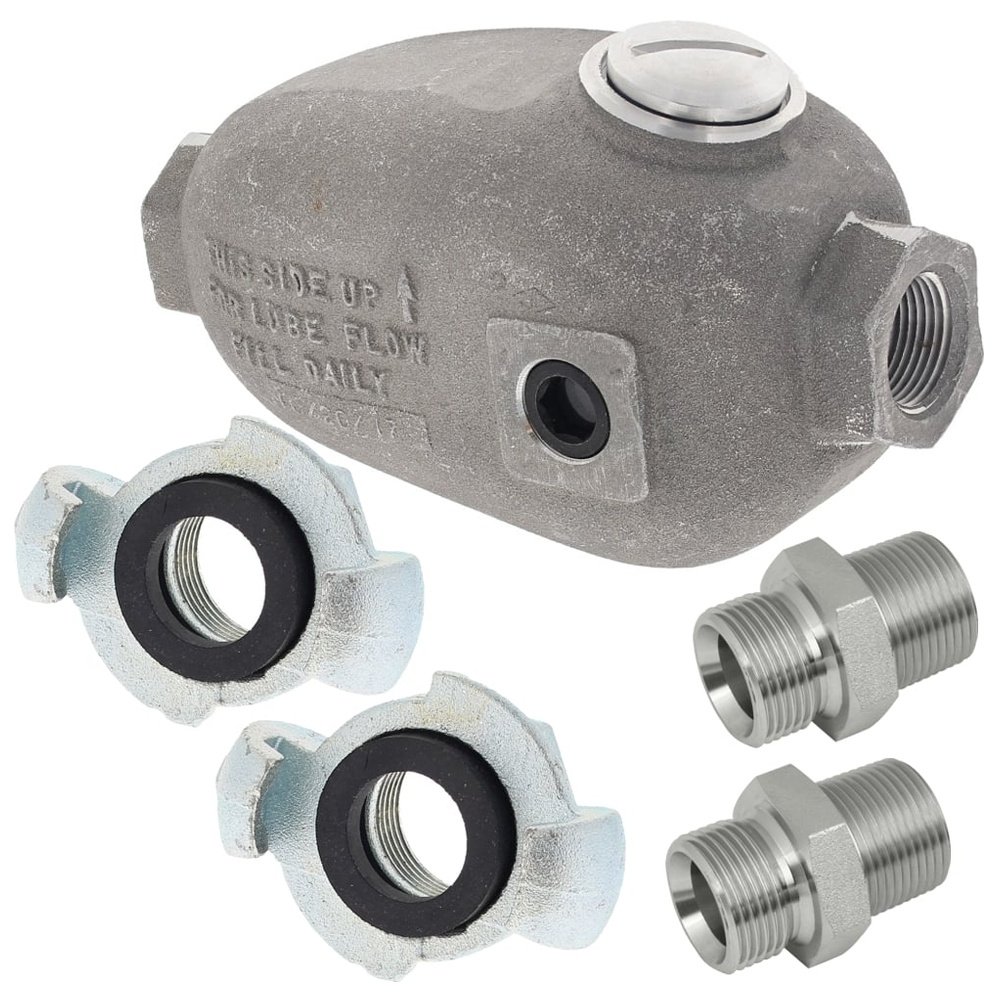

This aluminium air line lubricator (MPN 816 500) is a durable in-line oiler for hose-connected pneumatic tools that need dependable lubrication away from the compressor. Built from robust 356‐T6 aluminium, it meters oil into the air stream to keep breakers, chisels and similar tools running smoothly and to help prevent freezing in cold or wet conditions. With a 320 ml (11 fl. oz) reservoir, it supports longer shifts between refills. Supplied c/w 3/4 in (approx. 19 mm) couplings, a 3/4 in NPTF to 3/4 in BSPP male/male adaptor, and 3/4 in BSP female quick couplings, it integrates easily into common site hose setups. It is well suited to heavy-duty tools such as the CP222 and CP9 and should be installed within 7.6 m (25 ft) of the air tool.
Key Features:
- Tough 356‐T6 aluminium body for impact resistance and long service life
- 320 ml (11 fl. oz) oil capacity for extended operation between top-ups
- Supplied c/w 3/4 in (approx. 19 mm) couplings for straightforward hose connection
- Includes 3/4 in NPTF × 3/4 in BSPP male/male adaptor to bridge thread standards
- 3/4 in BSP female quick couplings for fast, secure attachment
- Efficient operation from 30 SCFM (approx. 850 L/min) airflow
- Install within 7.6 m (25 ft) of the tool for correct oil delivery and to reduce icing risk
- Supports consistent tool performance and reduces wear on internal parts
- Compact in-line form factor suits mobile site and workshop setups
- Simple to fit, service, and refill using standard pneumatic tool oil practices
Typical Applications:
Used on demolition breakers, chipping hammers, tampers, rock drills, impact wrenches, and other air tools operating far from a compressor. Ideal for construction sites, road and rail maintenance, utilities, plant hire, quarries, and workshops where reliable in-line lubrication helps prevent freezing, reduces downtime, and extends tool life.
Also known as:
In-line lubricator, air tool oiler, hose-line lubricator, pneumatic in-line oiler, mist lubricator, tool oiler, air line oiler. These terms refer to the same function: metering oil into the compressed air supply to protect and maintain air-powered tools.
Fits Models:
CP222, CP9, FL22, Thor 234, Thor 24, Thor234, Thor24
