Description
Overview:

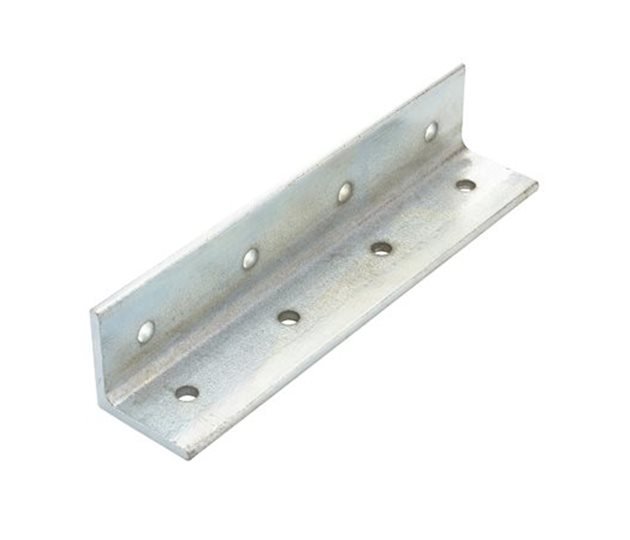

The Body Mounting Bearer Bracket 40 x 40 x 4 mm (MPN 800 1338) is a pressed mild steel angle bracket with a durable JS500 finish. It is designed to secure a cross bearer to vehicle chassis runners and provides a universal fit across a wide range of commercial vehicle chassis. The bracket suits a 100 mm runner and a 100 mm bearer (3.94 in x 3.94 in), making it suitable for typical body mounting layouts used in the transport and trailer sector. Overall length is 189.5 mm (7.46 in). Each leg measures approximately 38 mm x 38 mm (1.50 in x 1.50 in) with a 4 mm (0.16 in) material thickness for robustness. Eight 7 mm (0.28 in) fixing holes allow straightforward bolting to chassis and cross bearers. The JS500 finish provides strong corrosion resistance for trucks and trailers working in demanding conditions.
Key Features:
- Pressed mild steel construction for strength and durability
- JS500 corrosion-resistant finish for extended service life
- Overall length: 189.5 mm (7.46 in)
- Leg dimensions: 38 mm x 38 mm (1.50 in x 1.50 in)
- Thickness: 4 mm (0.16 in)
- Eight fixing holes: 7 mm diameter (0.28 in)
- Suits 100 mm runner and 100 mm bearer (3.94 in x 3.94 in)
- Universal fitting to suit various commercial vehicle chassis
Typical Applications:
Used on trucks and trailers to secure cross bearers to the chassis runners during body mounting or repair work, providing a reliable interface between the chassis and body structure in general haulage and plant transport applications.
Also known as:
Angle Bracket 40 x 40 x 4
Chassis Runner Angle Bracket
Crossmember Mounting Bracket
Truck Body Bracket
Product Specifications
| L&S Part No. | 800 1338 |
|---|---|
| Unit of Sale | 1 |
