Description
Overview:

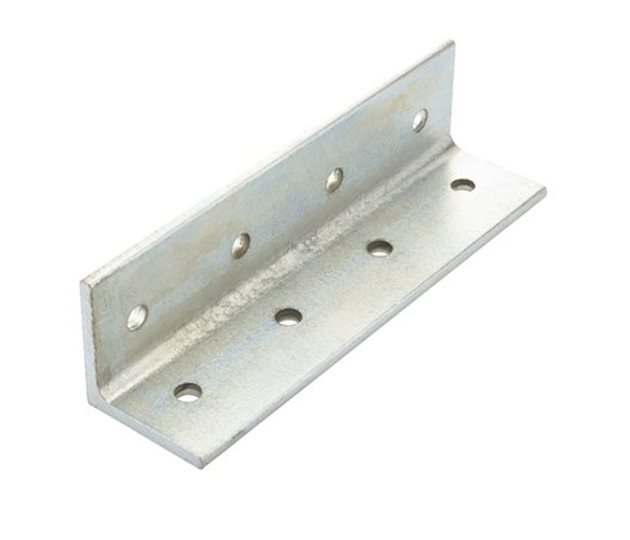

The Body Mounting Bearer Bracket, 50 x 50 x 4 mm, JS500 Galvanised (MPN 800 1339) is a pressed mild steel bracket used to secure a cross bearer to vehicle chassis runners. Designed as a universal fitting for a range of commercial vehicle chassis, it suits a 100 mm (3.94 in) runner and a 100 mm (3.94 in) bearer. The bracket measures 189.5 mm (7.46 in) in length, 50 mm (1.97 in) in width and 50 mm (1.97 in) in height, with a 4 mm (0.16 in) material thickness for robust support. A JS500 galvanised finish provides strong corrosion resistance for service in demanding fleet and bodybuilder environments. Pre-punched with eight 8.5 mm (0.33 in) holes to facilitate straightforward positioning and fastening, it supports consistent alignment of the bearer-to-chassis interface on trucks and trailers.
Key Features:
- Pressed mild steel construction
- JS500 galvanised finish for enhanced corrosion resistance
- Universal fitting to suit various chassis
- Suits 100 mm (3.94 in) runner and 100 mm (3.94 in) bearer
- Overall length: 189.5 mm (7.46 in)
- Section size: 50 mm x 50 mm (1.97 in x 1.97 in)
- Material thickness: 4 mm (0.16 in)
- Pre-punched with 8 x Ø8.5 mm (0.33 in) fixing holes
Typical Applications:
Used on truck and trailer chassis to mount and secure cross bearers to the chassis runners, providing a reliable interface for body or floor structures in general haulage and transport operations.
Also known as:
Angle bracket, Chassis bearer bracket, Cross bearer bracket, Body bearer mounting bracket, Chassis runner bracket, Body mounting angle
Product Specifications
| L&S Part No. | 800 1339 |
|---|---|
| Unit of Sale | 1 |
