Description
Overview:

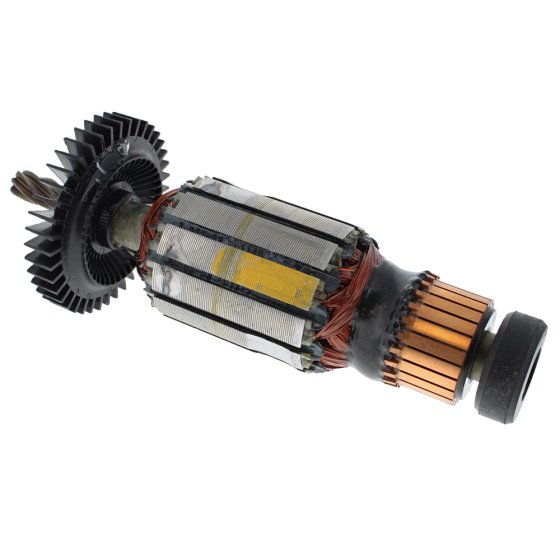

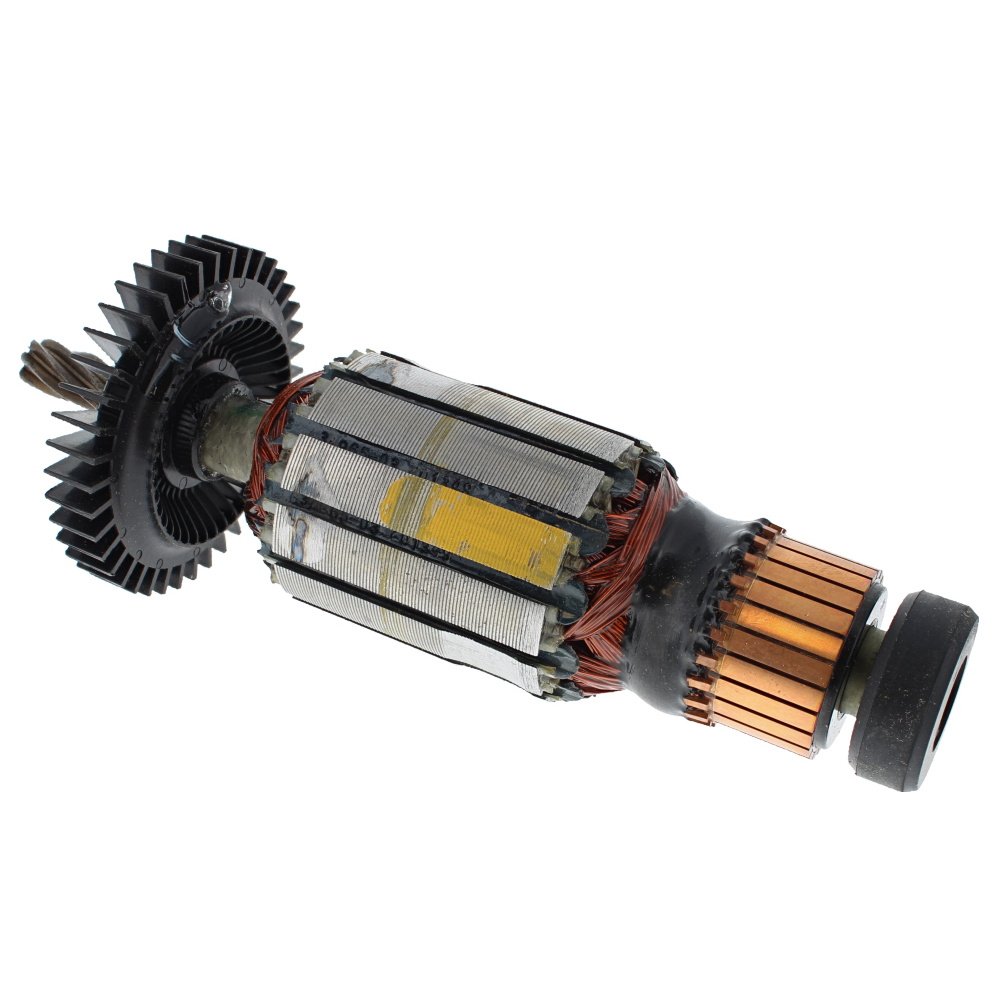

This genuine armature (MPN 647864-03SV) is an OEM DeWalt (Black & Decker) motor component for corded hammer drills such as the DWD522KS and DWD530KS. It is built with a laminated steel core, precision‐wound copper coils, a multi‐segment copper commutator and an integrated cooling fan to deliver smooth, efficient rotation under load. The armature is the rotating part of the motor that drives the chuck and hammer mechanism; replacing a worn or burnt rotor restores power, reduces sparking and helps keep speed and torque consistent. Manufactured to original tolerances for balance and durability, it is suitable for regular trade use and workshop repairs. Supplied as a direct‐fit part, it helps extend tool life and maintain reliable drilling performance in masonry, timber and metal.
Key Features:
- Genuine DeWalt OEM part for assured compatibility and reliability
- MPN 647864-03SV for accurate identification during servicing
- Laminated steel core and copper windings for efficiency and heat control
- Precision-balanced rotor helps reduce vibration and motor noise
- Durable copper commutator for consistent brush contact and reduced arcing
- Direct replacement to match original performance and dimensions
- Supports heavy-duty drilling and hammer action in demanding tasks
- Suitable for competent DIY or professional installation with basic tools
Typical Applications:
Restores motor performance in DeWalt hammer drills used for drilling and impact drilling into brick, block, concrete, stone, timber and metal. Ideal for workshop overhauls, site maintenance, and keeping trade tools working reliably for construction, electrical, plumbing and carpentry jobs.
Also known as:
Motor rotor, rotor assembly, rotating coil, commutator rotor, armature assembly, electric motor armature, drill rotor, motor core.
Fits Models:
D21570K, DWD522KS, DWD524KS, DWD525KS, DWD530KS
Alternate Part Numbers:
647864-03sv, 64786403sv, 64786403SV
Product Specifications
| L&S Part No. | 647864-03SV |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | DeWalt/Black and Decker |
| OEM No. | 647864-03SV |
| Unit of Sale | 1 |
| Applications | D21570K, DWD522KS, DWD524KS, DWD525KS, DWD530KS |
| Machine Type | Hammer Drill |
| Fits Brands | Black & Decker, DeWalt |
| Fits Models | D21570K Type 1 | DWD522KS Type 1 | DWD524KS Type 1 | DWD525KS Type 1 | DWD530KS Type 1 |
