Description
Overview:

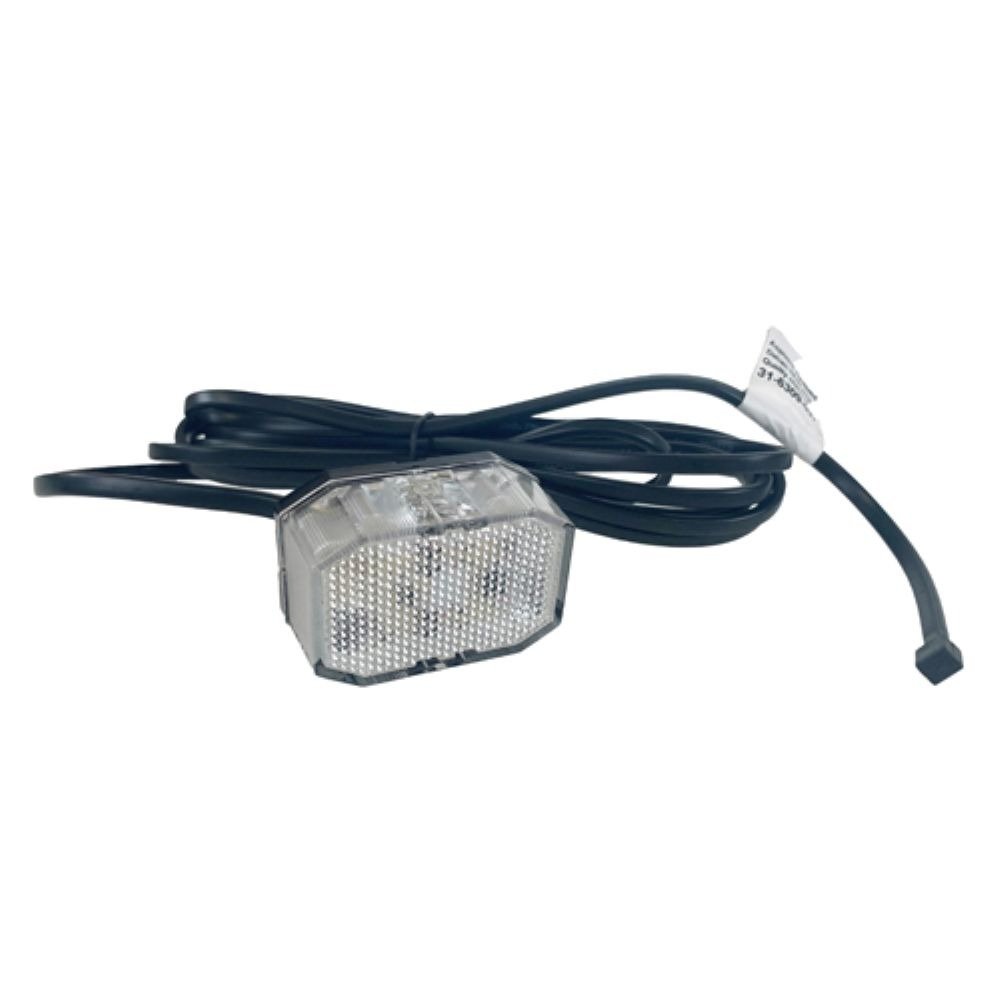

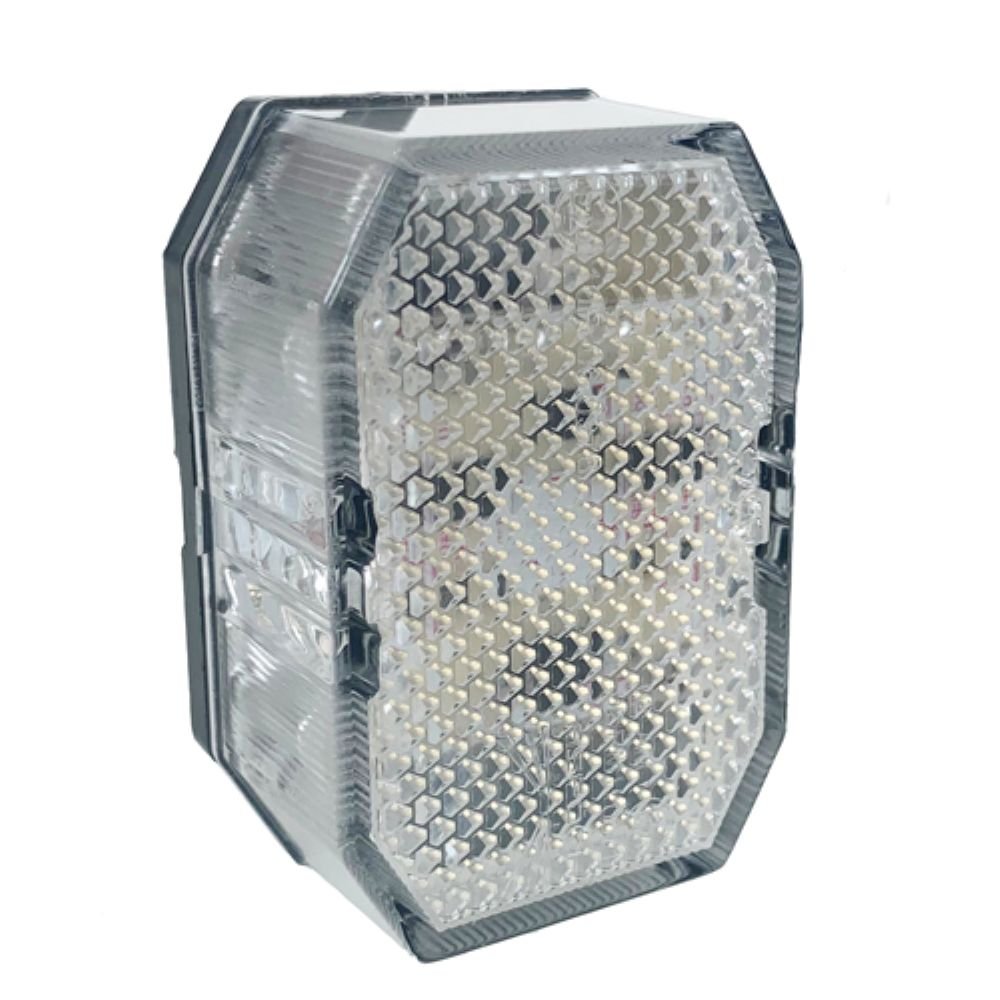

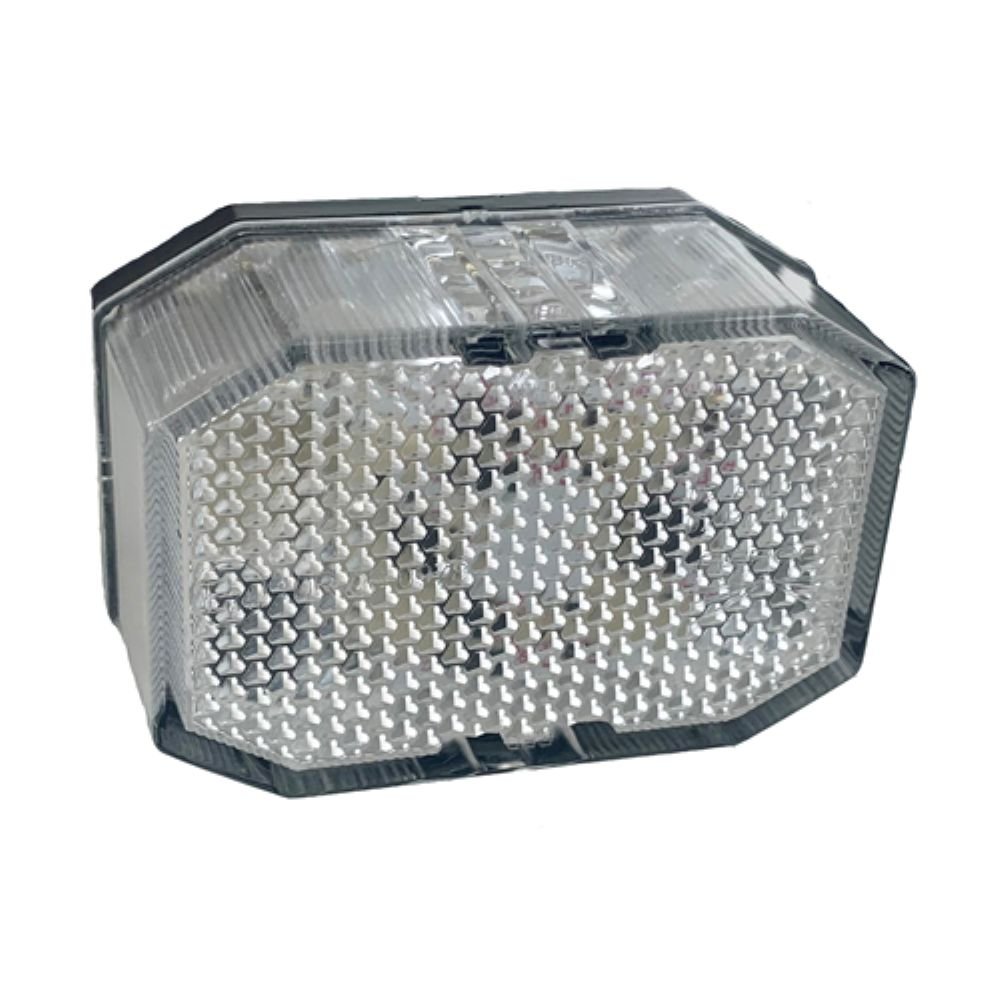

The LED Marker Lamp Red/White 12/24V Aspock Flexipoint (MPN 763 708) is a compact, bi‐colour LED position/outline marker for use on trailers and commercial vehicles. It provides a white forward-facing marker and a red rear-facing marker from a single lamp body to indicate the extremities of a vehicle or trailer in low‐light conditions. Designed to run on both 12 V and 24 V DC electrical systems, it suits light trailers, plant and agricultural equipment, rigid bodies and HGV trailers. The solid‐state LED design offers low current draw and high vibration resistance compared with filament bulbs, supporting long service life in demanding fleet use. The Flexipoint pattern is widely used on UK and EU‐built trailers and bodies where a slim marker lamp is required at the front and rear corners or along the sides to aid visibility and help define vehicle length.
Key Features:
- Dual-voltage operation: 12 V and 24 V DC (multivolt)
- Bi-colour output: white forward-facing and red rear-facing from one lamp
- LED light source for low current draw and long service life
- Compact marker format suitable for tight mounting locations
- Robust solid-state design with no filament to fail under vibration
- Suited to trailers, plant and commercial vehicle bodywork as a position/outline marker
- Common Aspock Flexipoint pattern used across many UK and EU trailer builds
Typical Applications:
Used as an outline/position marker at the front and rear corners of trailers, plant transporters, box vans, tippers, recovery bodies and similar commercial vehicle bodywork. Suitable for light trailers and caravans through to HGV trailers and rigid bodies running 12 V or 24 V DC systems. Often mounted at the edges of mudguards, headboards, tailboards, or along side rails where a white forward and red rear indication is required.
Also known as:
Side marker lamp
Clearance marker light
Outline marker lamp
Position lamp
Bi-colour marker light
Aspock Flexipoint red/white LED marker
Product Specifications
| L&S Part No. | 763 708 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Dual-voltage operation: 12 V and 24 V DC - Bi-colour output: white forward-facing, red rear-facing - LED light source for low current draw - Compact design for tight mounting locations - Robust solid-state design resists vibration |
