Description
Overview:

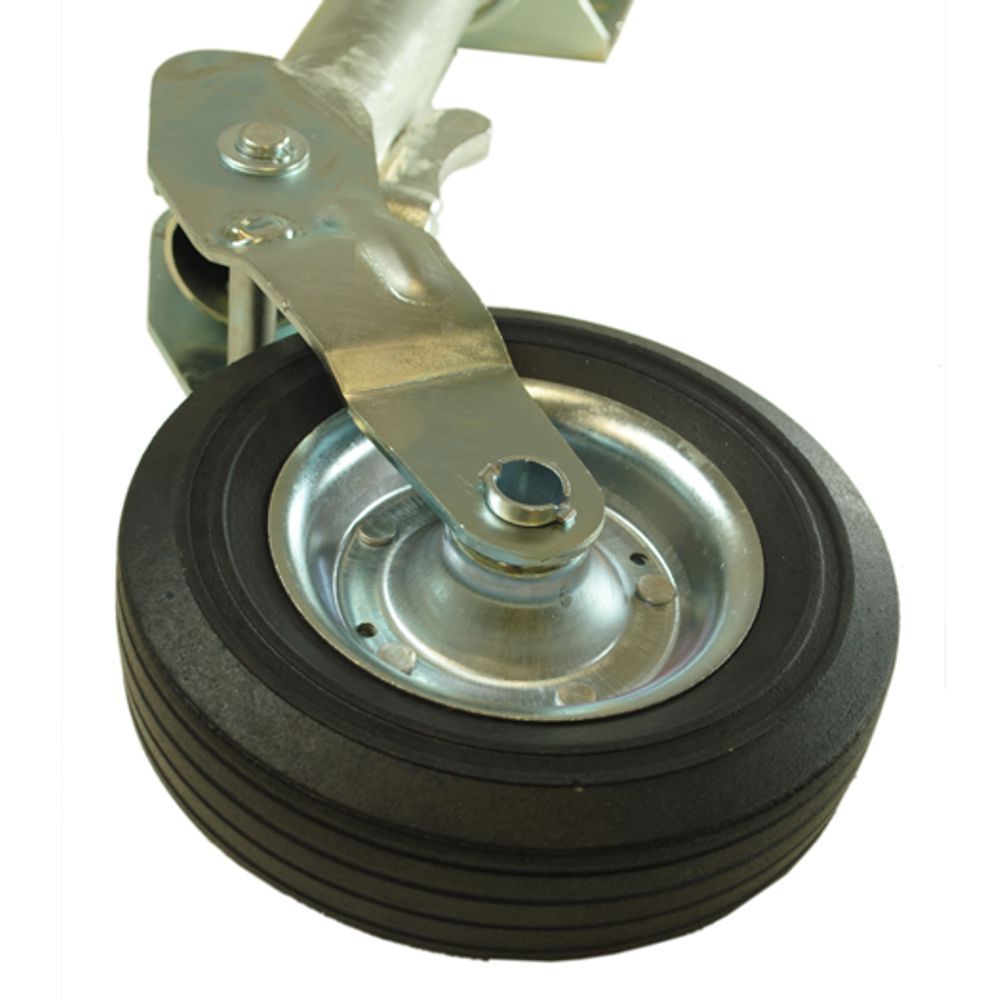

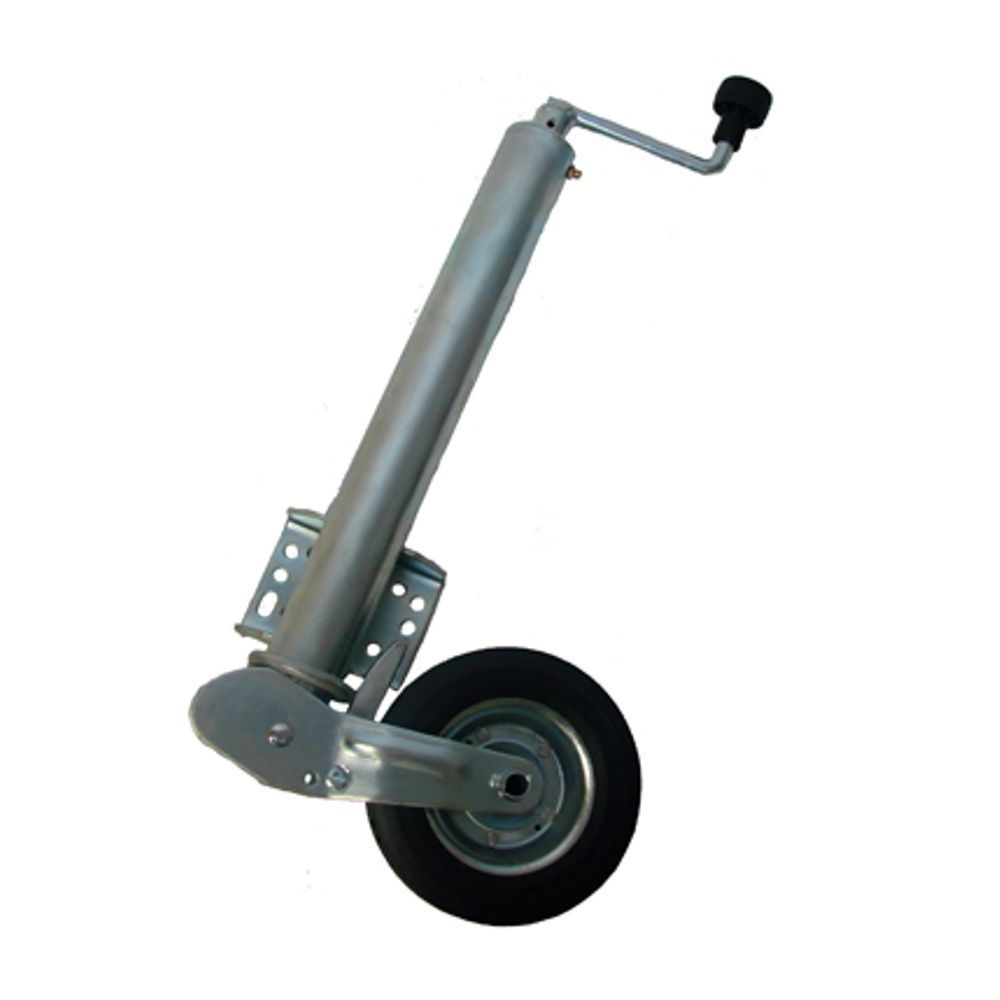

The Auto Fold 60mm Jockey Wheel 300KG is a heavy-duty support and manoeuvring wheel for trailers, plant trailers and lighting towers, including models such as VB9. Built around a 60 mm diameter steel tube with a plate-mounted bracket, it supports a static nose weight of up to 300 kg. The 200 mm x 40 mm rubber wheel automatically swings into a raised position as the leg is wound up and returns to the ground when wound down, helping speed up hitching and parking. A grease nipple is fitted for straightforward bearing lubrication. The unit offers a height extension range of 490 mm, a mounting plate of 100 mm x 130 mm, and a 130 mm handle extension for comfortable operation. This is a Non Genuine Part, suitable as a cost-effective replacement where a reliable auto-fold jockey wheel is required.
Key Features:
- 60 mm diameter steel tube for strong, stable support
- Rated to 300 kg static nose weight for demanding trailer duties
- 200 mm x 40 mm rubber wheel for controlled rolling and positioning
- Auto-fold mechanism retracts the wheel when wound up and deploys when wound down
- 490 mm height extension range to suit different coupling heights

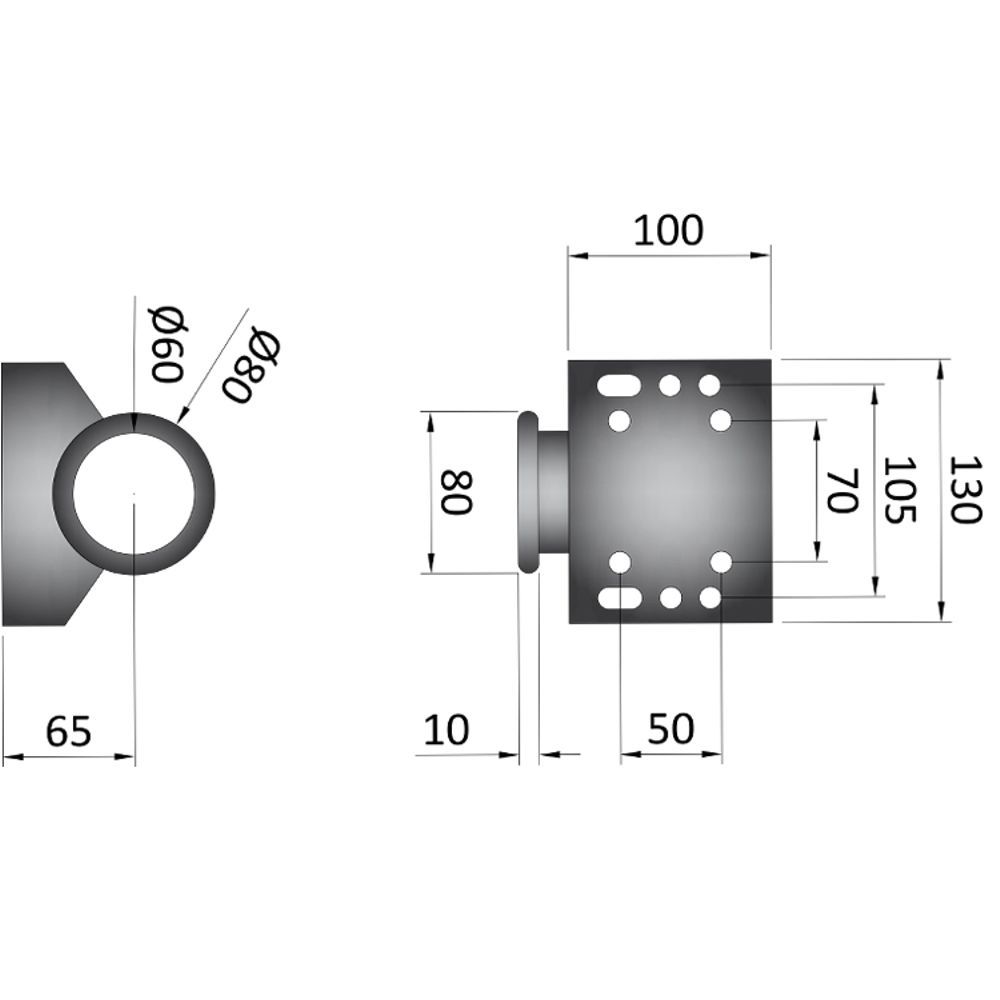

- Plate-mounted design; mounting plate size 100 mm x 130 mm
- Grease nipple for easy bearing maintenance and long service life
- 130 mm handle extension for easier winding under load
- Suitable for trailers, plant trailers, tower lights and transporters
- Non Genuine Part replacement for dependable day-to-day use
Typical Applications:
Used for supporting and manoeuvring trailers during hitching, unhitching, parking and storage. Common on plant trailers, car transporters, horse boxes and site lighting towers (e.g. VB9 and similar). Helps position trailers in yards or on site with better control while reducing strain on the tow vehicle and coupling.
Also known as:
Trailer nose wheel, swing-up jockey wheel, swing-away jockey wheel, retractable jockey jack, trailer jack wheel, auto-fold jockey jack, trailer support wheel, drawbar jockey wheel.
Fits Models:
Tower Lights, Trailers, VB9
Alternate Part Numbers:
13760
Product Specifications
| L&S Part No. | 207 977 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Applications | Tower Lights, Trailers, VB9 |
| Machine Type | Lighting Towers, Trailers |
| Fits Brands | Toro |
| Fits Models | VB9 |
