Description
Overview:

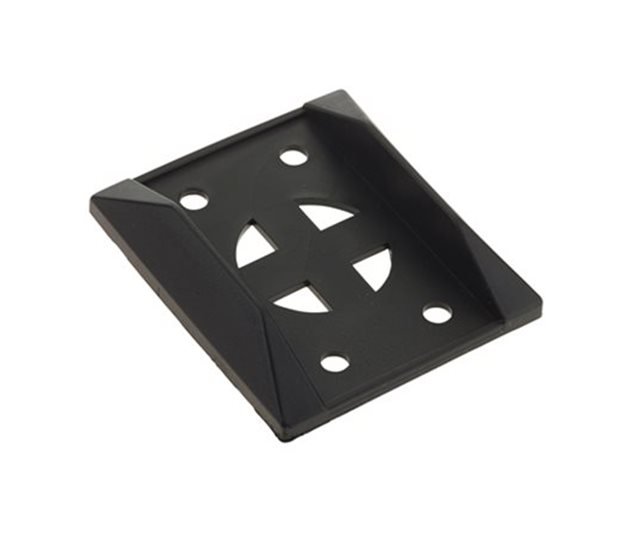

T-Bar Door Retainer Back Plate, Black Plastic, 70.5 x 60 mm (MPN 800 1414). A moulded black plastic backing plate used with T-bar door hold-back hardware to provide a stable mounting face and spread load on the door or body panel. It is designed for use with Albert Jagger T-bar door retainer and catch components, pairing with the retainer 9810/3350 and the catch plate 9810/3370 to complete a typical door hold-back installation. The plate measures 70.5 mm long (approx. 2.78 in) by 60 mm wide (approx. 2.36 in) and accepts fixings through 5.5 mm diameter holes (approx. 0.22 in). Suitable for commercial vehicle bodies and site equipment where a durable, non-metallic back plate is required, including trucks, trailers, containers and modular buildings.
Key Features:
- Moulded plastic construction for a stable backing surface
- Black finish to match common door hold-back hardware
- Length: 70.5 mm (approx. 2.78 in)
- Width: 60 mm (approx. 2.36 in)
- Fixing hole diameter: 5.5 mm (approx. 0.22 in)
- Compatible with T-bar door retainer 9810/3350 and catch plate 9810/3370
- Non-metallic back plate helps protect painted panels from marking
- Suited to door hold-back applications on commercial bodies
Typical Applications:
Used as the backing plate for T-bar door retainers on trucks and trailers, on container doors, and on modular or site building doors where a hold-back device is fitted. Commonly installed on rear or side doors to support the retainer and catch assembly and distribute fixing loads into the door skin or frame.
Also known as:
T-bar hold-back backplate; Door retainer backing plate; Catch plate backing pad; Door hold-open back plate; Retainer mounting pad
Product Specifications
| L&S Part No. | 800 1414 |
|---|---|
| Unit of Sale | 1 |
