Description
Overview:

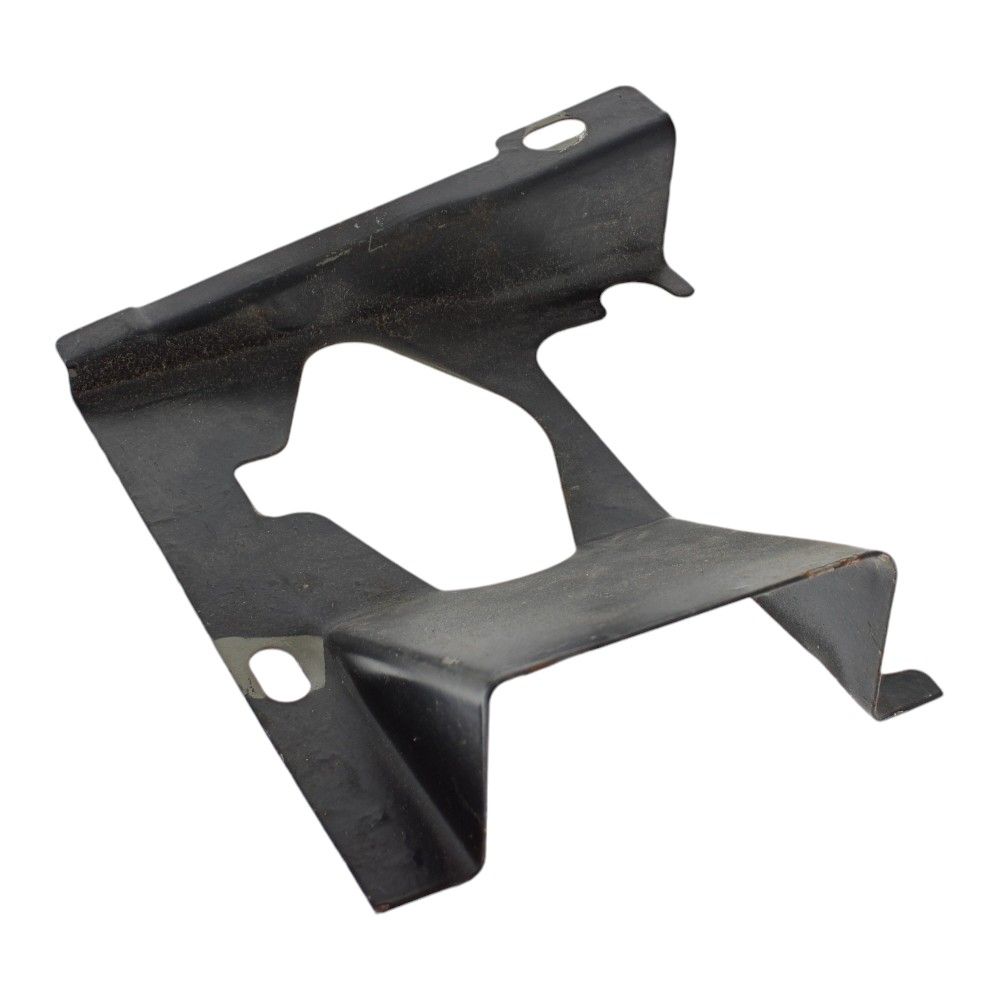

The Baffle for Kohler M10 Magnum Series Engines is a genuine Kohler metal airflow guide designed to manage cooling air inside the engine shrouding. By directing air from the flywheel fan across the cylinder and other hot areas, it helps stabilise operating temperature and prevents localised hot spots that can shorten engine life. This OEM component is built for Kohler Magnum single‐cylinder engines, including M10 variants such as M10-461513 and M10-461524, and selected M12 models listed below. Supplied to OEM No. 47 063 11-S, it offers an exact-fit replacement for worn, bent, or missing baffles so your machine maintains reliable cooling performance. Suitable for lawn and garden equipment, small industrial machinery, and other tools powered by Kohler Magnum engines.
Key Features:
- Genuine Kohler part for assured compatibility and quality (OEM 47 063 11-S)
- Robust metal construction engineered for heat, vibration, and long service life
- Restores correct airflow through the shroud for consistent cooling performance
- Helps prevent overheating and premature wear, supporting engine reliability
- Precise fit for listed Kohler M10 Magnum and selected M12 Magnum engines
- Straightforward replacement for maintenance or repairs using normal workshop practices
- Direct replacement for the original baffle with no guesswork on dimensions or fit
- Suitable for routine servicing to keep engines running at their designed temperature
Typical Applications:
Used during engine services, overhauls, or repairs where the original baffle is missing, corroded, or distorted. Common on lawn tractors, ride‐on mowers, compact generators, water pumps, and other light industrial or garden machinery powered by Kohler M10/M12 Magnum engines. Helps ensure steady power output and dependable running in regular professional and DIY use.
Also known as:
Air deflector, cylinder air guide, blower housing baffle, shroud baffle, cooling air guide plate, cylinder baffle plate, airflow guide, engine air shroud insert.
Fits Models:
M10-461513 Magnum, M10-461524 Magnum, M10-461526 Magnum, M10-461537 Magnum, M10-461543 Magnum, M10-461550 Magnum, M10-461551 Magnum, M12-471525 Magnum, M12-471529 Magnum, M12-471530 Magnum
Alternate Part Numbers:
47 063 11S, 4706311-S, 4706311S
Product Specifications
| L&S Part No. | 47 063 11-S |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Kohler |
| OEM No. | 47 063 11-S |
| Unit of Sale | 1 |
| Applications | M10-461513 Magnum, M10-461524 Magnum, M10-461526 Magnum, M10-461537 Magnum, M10-461543 Magnum, M10-461550 Magnum, M10-461551 Magnum, M12-471525 Magnum, M12-471529 Magnum, M12-471530 Magnum |
| Machine Type | Engines |
| Fits Brands | Kohler |
