Description
Overview:

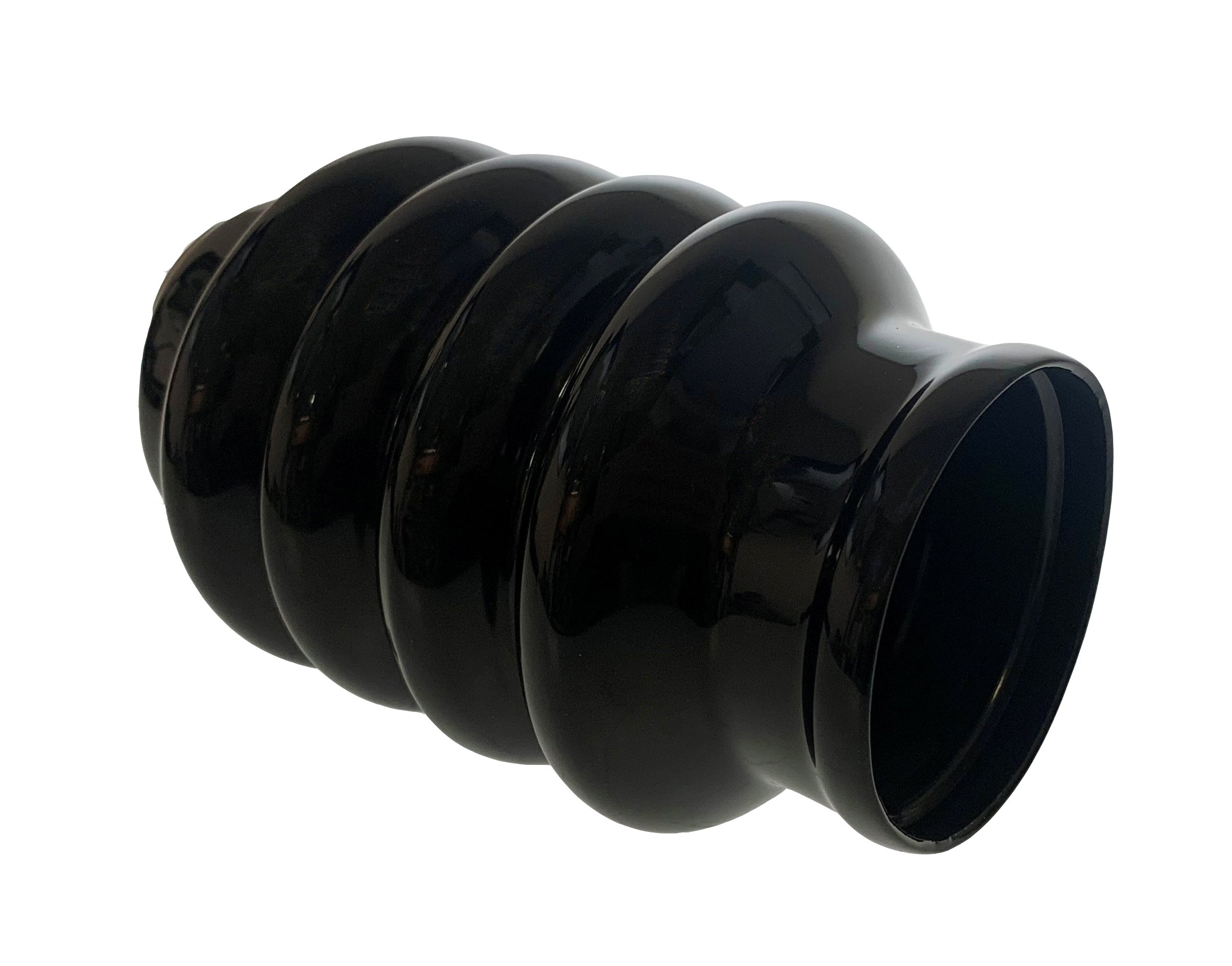

This vented trailer coupling bellows (MPN 763 315) is a rubber gaiter used on the drawtube of compatible Knott overrun brake couplings. It shields the grease and bearing area from dust, grit and spray, helping to maintain smooth operation and reduce wear. The bellows is vented, allowing trapped air and any water to be expelled as the coupling compresses under braking, which helps protect seals. This version is supplied without a bolt cover. It features four folds for controlled movement and sealing, with stepped ends measuring 55 mm (2.17 in) and 60 mm (2.36 in) to suit the mating parts of the coupling. Overall length is 140 mm (5.51 in). Suitable for service replacement on trailers and plant transport that use compatible Knott KFG-series vented couplings.
Key Features:
- Vented bellows design to discharge air and water on compression
- Supplied without bolt cover for use on vented couplings
- Compatible with Knott KFG13 to KFG30 overrun couplings (vented type)
- Four folds for travel, flexibility and sealing
- End diameters: 55 mm and 60 mm (2.17 in / 2.36 in)
- Overall length: 140 mm (5.51 in)
- Moulded rubber construction for durability and flexibility
- Helps keep contaminants away from drawtube grease and bearings
- Suitable as a like-for-like replacement for worn or split gaiters
Typical Applications:
Fitted to the drawtube area of braked overrun couplings on trailers, including general duty, plant and machinery transport, car transporters, utility trailers and caravans using compatible Knott KFG13-KFG30 vented couplings. Used during routine service to replace damaged or perished bellows and maintain coupling protection.
Also known as:
- Overrun Coupling Gaiter
- Trailer Coupling Bellows 55/60mm x 140mm
- Knott Vented Bellows (No Bolt Cover)
- Maypole part number MP2038B
Product Specifications
| L&S Part No. | 763 315 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
