Description
Overview:

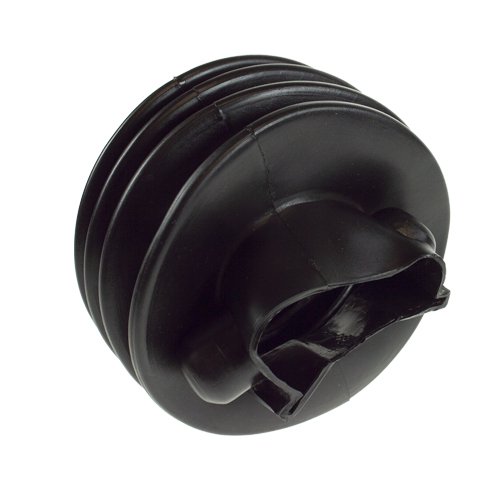

Vented rubber bellows with an integrated bolt cover for AL-KO 161S and 251S couplings. Fits over the drawtube to help keep contaminants away from the grease and bearing area, reducing wear. The venting allows trapped air and water to be expelled when the coupling compresses under braking. Four folds provide the required movement while maintaining a seal around the drawtube.
Specification:
- Fits: AL-KO 161S / 251S couplings
- Material: Rubber
- Design: Vented bellows with bolt cover
- Folds: 4
- End diameters: 54mm / 49mm (2.13 in / 1.93 in)
- Overall length: 125mm (4.92 in)
- Manufacturer reference: MP2036B
Typical Applications:
Used on braked trailer couplings to protect the drawtube and lubrication area from dust, dirt and water. Common on general duty, plant and caravan trailers fitted with AL-KO 161S or 251S couplings.
Product Specifications
| L&S Part No. | 763 295 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
