Description
Overview:

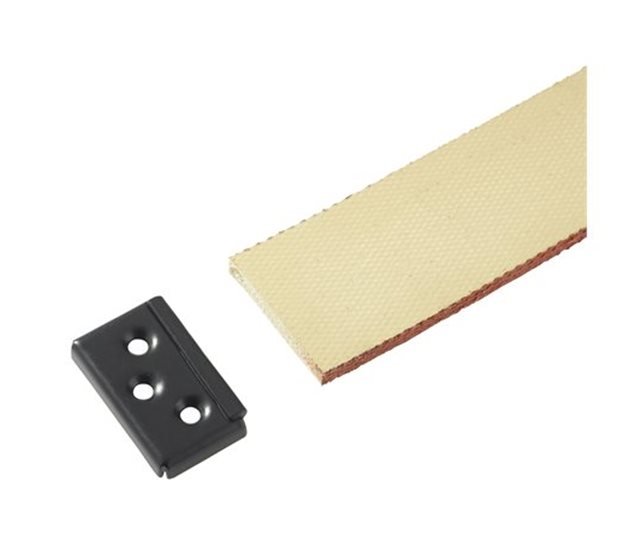

The Door Check Strap Fixing Plate (MPN 800 1092) is a pressed mild steel end plate with a black japanned finish, designed to secure balata belting door check straps. It provides a neat, durable termination for the strap and a solid interface to the door or body panel. Sized at 48 mm (1 7/8 in) long by 28 mm (1 1/8 in) wide, with a plate thickness of 1.5 mm (1/16 in), it is compact enough for tight door frames while offering ample bearing area. The plate takes Ø5 mm (3/16 in) countersunk fixings for a flush fit when installed. Typical uses include side and rear doors on trucks and trailers, van doors, generator set enclosures and cab doors where a balata belting check strap is required to limit door travel and prevent panel damage. Supplied in a black finish to match standard balata strap hardware.
Key Features:
- Pressed mild steel construction for a robust strap end plate
- Black japanned finish
- Length: 48 mm (1 7/8 in)
- Width: 28 mm (1 1/8 in)
- Plate thickness: 1.5 mm (1/16 in)
- Ø5 mm (3/16 in) countersunk fixing
- Suited to balata belting door check straps
- Colour: Black
Typical Applications:
Used on commercial vehicle door systems to terminate and fix balata belting check straps. Suitable for trucks, trailers and vans, as well as generator set enclosures and cab doors on plant and transport equipment, helping to control door opening and protect hinges and panels.
Also known as:
Balata Belt End Plate, Check Strap End Plate, Door Strap Fixing Plate, Balata Belting Fixing Plate, Door Retainer Strap Plate
Product Specifications
| L&S Part No. | 800 1092 |
|---|---|
| Unit of Sale | 1 |
