Description
Overview:

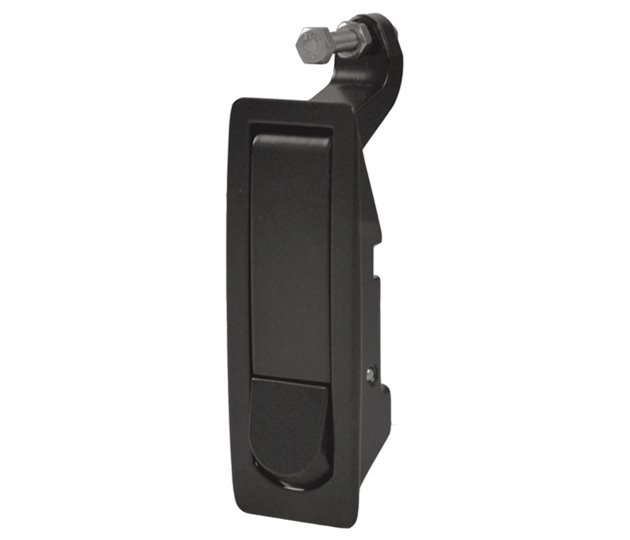

This Raised Compression Latch (MPN 800 1223) is a black, non-locking latch for secure closure of access panels, lockers and enclosures on commercial vehicles and equipment. The body is manufactured from zinc alloy die-casting for strength and durability, and it is supplied with a zinc-plated pressed steel clamp plate to engage behind the frame. The raised style provides a positive grip for operation, while the compression action draws the door or lid firmly against the frame to help minimise rattle and vibration. With an overall length of 109 mm (4.29 in) and width of 33.5 mm (1.32 in), and an adjustable grip range of 1-24 mm (0.04-0.94 in), it covers typical door build-ups used across truck bodies and trailers through to buses, generator sets, horseboxes, toolboxes, storage boxes and lockers where a non-locking compression mechanism is preferred.
Key Features:
- Zinc alloy die-cast latch body for durability
- Black finish for a uniform, discreet appearance
- Non-locking operation for quick access where key control is not required
- Raised compression action to pull the panel tight and reduce vibration
- Supplied with zinc-plated pressed steel clamp plate
- Overall length: 109 mm (4.29 in)
- Overall width: 33.5 mm (1.32 in)
- Adjustable grip range: 1-24 mm (0.04-0.94 in)
- Suitable for use on commercial vehicles and equipment enclosures
- Category: Compression latches for panels, doors and lockers
Typical Applications:
Commonly fitted to side lockers, underbody boxes, service hatches and equipment access doors on trucks, trailers and buses. Also used on generator canopies, plant and site equipment cabinets, horsebox tack lockers, cabs, toolboxes and storage boxes where a reliable, non-locking compression catch is required.
Also known as:
Compression catch; Cam compression latch; Toolbox catch; Locker catch
Product Specifications
| L&S Part No. | 800 1223 |
|---|---|
| Unit of Sale | 1 |
