Description
Overview:

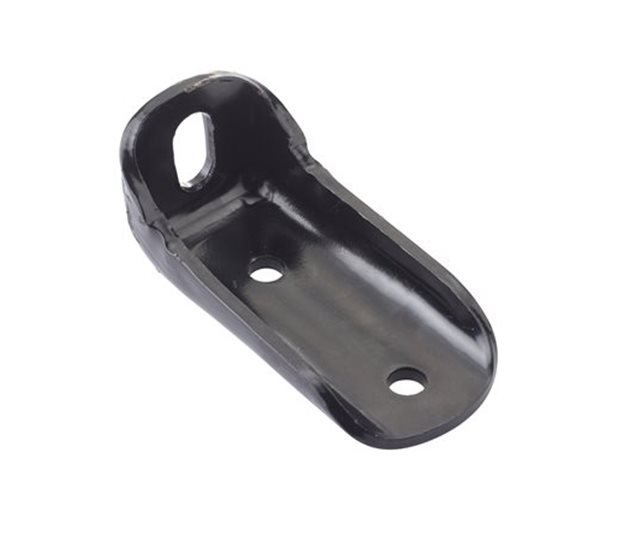

This pressed mild steel body mounting bracket (MPN 800 1332) is a universal chassis/bodywork fixing for commercial vehicles. Manufactured from 5 mm (0.20 in) mild steel and finished in a black powder coat, it provides a durable mounting point between a body or subframe and the chassis. The bracket measures 124 mm (4.88 in) in length, 61.5 mm (2.42 in) in width and 57 mm (2.24 in) in height, with a drilled and slotted fixing pattern to suit common layouts. It includes two round holes at Ø11 mm (0.43 in) and one adjustable slot at 14 x 28 mm (0.55 x 1.10 in). Suitable for use with various chassis featuring approximately 125 mm (4.92 in) runners, it is intended for general-purpose installation on trucks and trailers where a compact, pressed steel mounting is required. The powder coated finish helps resist corrosion and abrasion in service, while the slotted feature provides allowance for alignment during fit-up. This bracket is supplied as a single component and is part of a universal body mounting range.
Key Features:
- Pressed mild steel construction, 5 mm (0.20 in) thickness
- Black powder coated finish for durable surface protection
- Overall size: 124 mm (4.88 in) length x 61.5 mm (2.42 in) width x 57 mm (2.24 in) height
- Two round fixing holes: Ø11 mm (0.43 in)
- One slotted fixing: 14 x 28 mm (0.55 x 1.10 in) for positional adjustment
- Suits chassis runners around 125 mm (4.92 in)
- Universal bracket for body-to-chassis mounting on commercial vehicles
Typical Applications:
Used on trucks and trailers for securing bodywork, subframes or ancillary equipment to the chassis runners, where a compact pressed steel bracket with round and slotted fixings is required.
Also known as:
Body mount bracket; Chassis body bracket; Body support bracket; Universal body mounting bracket; Pressed steel bracket
Product Specifications
| L&S Part No. | 800 1332 |
|---|---|
| Unit of Sale | 1 |
