Description
Overview:

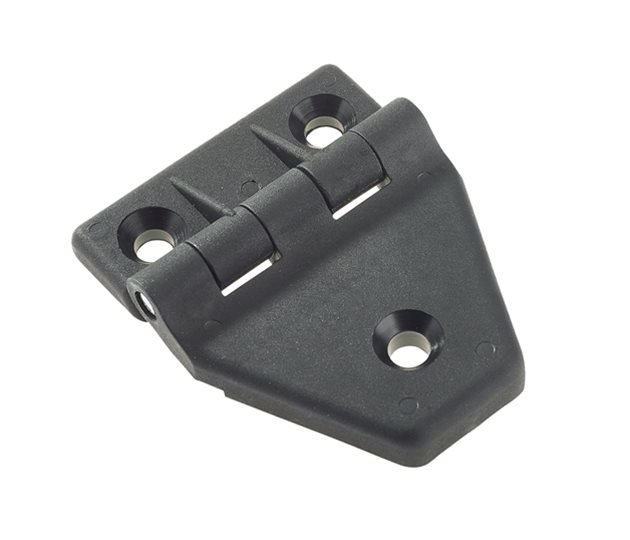

The Plant-On Window Hinge Black Nylon 100 x 80 mm With Grommet & Spacer (MPN 800 1140) is a compact hinge designed for mounting directly to cab glazing on agricultural and construction plant. The body is moulded from reinforced nylon in a black finish, with a zinc-plated steel pin for strength and corrosion resistance in outdoor use. Overall dimensions are 100 mm long by 80 mm wide by 12 mm thick (3.94 in x 3.15 in x 0.47 in). It suits glass of approximately 5 mm thickness (0.2 in) and is supplied with a grommet and spacer to protect and locate the glazing at the fixing points. Installation is via countersunk fixing holes of Ø9 mm (0.35 in) for a flush, secure fit. This hinge is commonly used on tractor and machinery cabs for side or rear opening windows, vents and access panels, and is suitable for OEM build or service replacement where a durable plant-on window fitting is required.
Key Features:
- Reinforced nylon hinge body with black finish
- Zinc-plated steel hinge pin for durability and corrosion resistance
- Size: 100 mm length x 80 mm width x 12 mm thickness (3.94 in x 3.15 in x 0.47 in)
- Countersunk fixing holes Ø9 mm (0.35 in) for flush mounting
- Supplied with grommet and spacer for mounting through glass
- Suits approximately 5 mm (0.2 in) glass panels
- Plant-on design for direct fitment to cab glazing
- Lightweight construction suitable for off-highway environments
- Trade-quality window fitting for agricultural and plant cabs
Typical Applications:
Used on agricultural tractor cabs and similar machinery cabs for hinged side and rear windows, ventilation flaps and small access panels in glazing, where a compact plant-on hinge is required.
Also known as:
Cab window hinge; plastic window hinge; reinforced nylon hinge; Centaur window hinge; plant cab hinge
Product Specifications
| L&S Part No. | 800 1140 |
|---|---|
| Unit of Sale | 1 |
