Description
Overview:

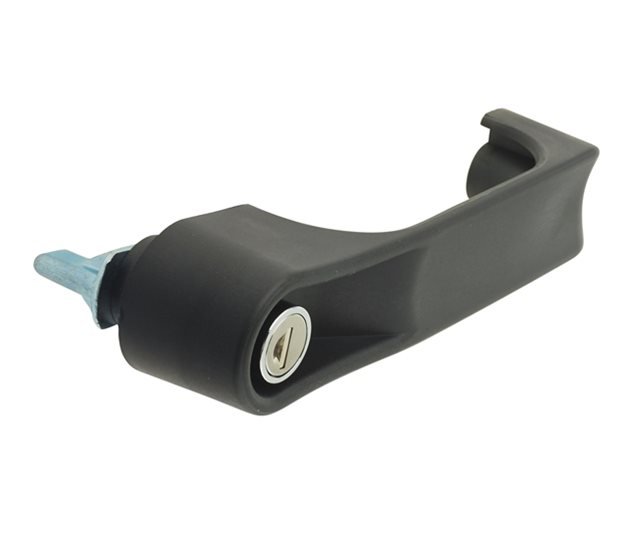

This locking push button handle (MPN 800 1351) is a compact, surface-mount unit designed for service doors, lockers and enclosures on commercial and specialist vehicles. The body is moulded from black glass reinforced polyester with a light etch texture to provide a durable, non-metallic housing. A die-cast zinc alloy cam provides positive engagement with the keeper, while concealed rear fixings use threaded brass inserts to keep the exterior clean and tamper-resistant. The handle measures 180mm (7.09") in overall length, with a 37mm (1.46") face width and 36.5mm (1.44") body thickness. Supplied keyed alike, it enables multiple handles across a body or fleet to operate from the same key profile. Suitable for use on trucks, trailers, buses, generator sets, horseboxes, cabs and emergency vehicles.
Key Features:
- Locking push button handle, keyed alike across matching sets
- Body material: glass reinforced polyester (black, light etch texture)
- Cam: zinc alloy, die-cast for consistent action
- Hidden rear fixing via threaded brass inserts for a clean exterior
- Overall length: 180mm (7.09")
- Face width: 37mm (1.46")
- Body thickness: 36.5mm (1.44")
- Fixing thread size: M6
- Discreet, low-profile face with push-button operation
- Suitable for exterior or interior locker and compartment doors
Typical Applications:
Used on bodywork and enclosures for commercial vehicles and plant transport, including truck and trailer side lockers, bus and coach panels, generator set housings, horsebox lockers, cab storage doors and emergency vehicle compartments where a keyed alike locking handle and concealed fixings are required.
Also known as:
Trimount 9300 Series Handle, Keyed-Alike Cam Latch, Locker Latch, Flush Button Lock, GRP Locker Lock
Product Specifications
| L&S Part No. | 800 1351 |
|---|---|
| Unit of Sale | 1 |
