Description
Overview:

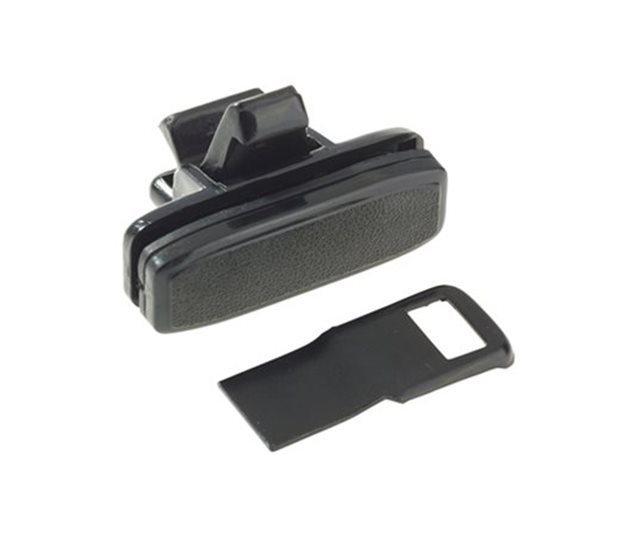

This clamp-style window stop (MPN 800 1153) is a compact fitting designed for controlling and limiting the travel of a sliding window pane. Manufactured from durable black polypropylene, it is suitable for sliding windows that use 4 mm (0.16 in) panels and is sized for use on agricultural machines and cab environments where robust, low-maintenance hardware is required. The stop is supplied as a complete assembly with a clamp plate, fixing screws, a gasket to help protect the mounting surface, and a pressed steel catch plate to provide a positive mating surface. With a body length of 58 mm (2.28 in), width of 22 mm (0.87 in) and thickness of 35 mm (1.38 in), it provides a compact footprint for fitting within the confines of cab window frames. Typical uses include tractor cabs and other machinery cabs where a simple, reliable stop is needed for a sliding side or rear window panel.
Key Features:
- Suited to 4 mm (0.16 in) sliding window panels
- Material: Polypropylene (PP) for impact resistance and low maintenance
- Finish/Colour: Black
- Body length: 58 mm (2.28 in)
- Body width: 22 mm (0.87 in)
- Body thickness: 35 mm (1.38 in)
- Supplied with clamp plate, fixing screws and gasket
- Pressed steel catch plate included for a positive stop surface
- Compact design for use in confined cab window frame spaces
- Intended for general window fitting use on plant and agricultural equipment
Typical Applications:
Used on sliding windows in agricultural machinery, tractors and operator cabs. Suitable for side or rear cab windows where a defined stop position and neat, robust hardware are required on plant, farm vehicles and similar off‐highway equipment.
Also known as:
Sliding Window Clamp Stop, Sliding Window Stop, Cab Window Stop, Window Retainer, Window Catch Plate Stop
Product Specifications
| L&S Part No. | 800 1153 |
|---|---|
| Unit of Sale | 1 |
