Description
Overview:

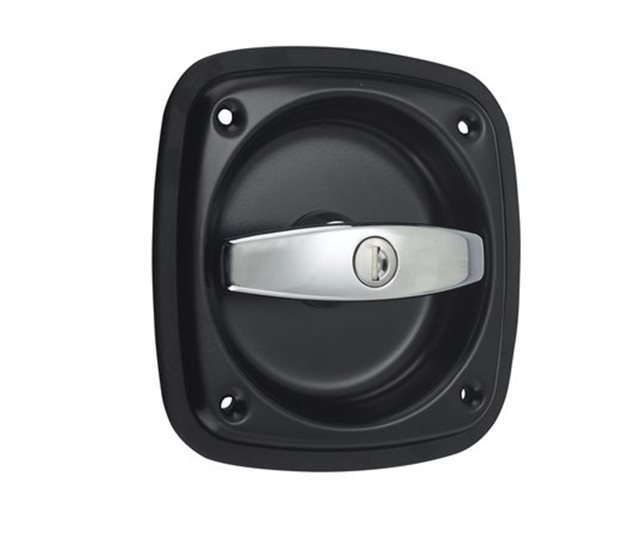

This recessed tee handle assembly (MPN 800 1296) is a robust latch solution for doors, hatches and access panels on commercial and specialist vehicles. It pairs a chrome plated T‐handle with a black powder coated mild steel square dish that mounts flush to the panel. The unit incorporates a locking cylinder keyed alike, allowing multiple handles on a fleet or body to be operated with the same key code. The recessed dish is 140 mm x 140 mm (5.51 in x 5.51 in) with a 20.5 mm (0.81 in) dish depth. A 135 mm x 8 mm (5.31 in x 0.31 in) square drive shaft provides positive engagement to the latch mechanism. Fixing holes are Ø5 mm (0.20 in). Designed for reliable service on trucks, trailers, buses, gensets, horseboxes and cabs where a flush, tamper‐resistant handle is required.
Key Features:
- Recessed tee handle with flush‐mount square dish for secure, low‐profile installation
- Mild steel dish with black powder coated finish for durability and corrosion resistance
- Chrome plated T‐handle for wear resistance and clean operation
- Locking, keyed alike cylinder to standardise keys across multiple handles
- Dish size: 140 mm x 140 mm (5.51 in x 5.51 in)
- Dish depth: 20.5 mm (0.81 in)
- Square drive shaft: 135 mm length x 8 mm across flats (5.31 in x 0.31 in)
- Fixing holes: Ø5 mm (0.20 in) for straightforward panel mounting
- Suitable for use with common latch/rod linkages driven by 8 mm square drives
- Brand: Albert Jagger
Typical Applications:
Used on truck and trailer body side doors, lockers and toolboxes; bus and coach access panels; generator and plant enclosure doors; horsebox compartments; and cab storage hatches where a recessed, lockable handle is needed to reduce snagging and improve security.
Also known as:
Recessed dish handle; Tee handle lock; Flush T‐handle latch; Square drive T‐handle; Flush mount toolbox handle
Product Specifications
| L&S Part No. | 800 1296 |
|---|---|
| Unit of Sale | 1 |
