Description
Overview:

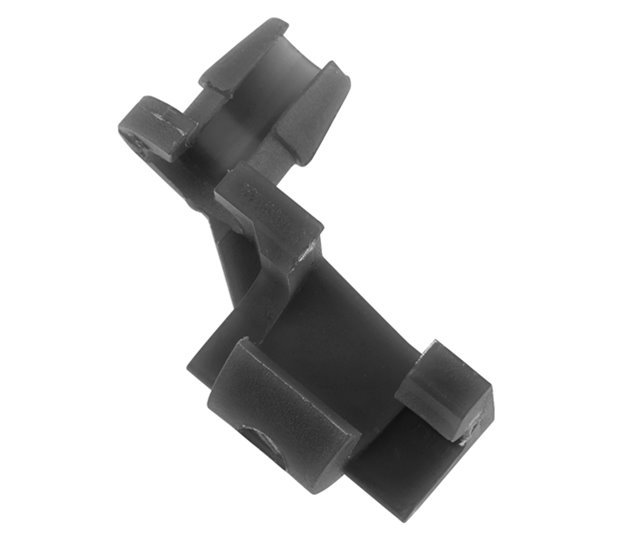

This Actuator Rod Clip (MPN 800 1401) is a black, injection‐moulded plastic component for securing an actuator rod to a latch or paddle handle linkage on vehicle and equipment doors. Designed for TriMark latch systems, it accepts a Ø4 mm (0.16 in) actuator rod and suits 3.6 mm (0.14 in) door panels, including use with TriMark 9306/1829 hardware families. The compact body measures approximately 18.5 mm (0.73 in) in length and 10 mm (0.39 in) in width, with a section thickness around 4.5 mm (0.18 in). It provides a positive, serviceable connection between the control rod and the operating lever to support reliable opening and locking action. Typical installations include truck bodies, trailers, buses, generator enclosures, horseboxes and cab doors where a durable, low-profile rod retention clip is required.
Key Features:
- Type: Actuator rod clip for latch/linkage retention
- Material: Injection‐moulded plastic
- Finish/Colour: Black
- Suits actuator rods: Ø4 mm (0.16 in)
- Suits door panels: 3.6 mm (0.14 in)
- Body length: approx. 18.5 mm (0.73 in)
- Body width: approx. 10 mm (0.39 in)
- Section thickness: approx. 4.5 mm (0.18 in)
- Brand compatibility: TriMark systems, including 9306/1829 handles/latches
- Application areas: Trucks, trailers, buses, gensets, horseboxes, cabs
Typical Applications:
Used on commercial vehicle bodies, trailers, buses and plant transport to retain the lock or paddle latch actuator rod in door and locker mechanisms. Also suitable for generator set enclosures, horseboxes and cab doors where a compact clip is required to secure the linkage between the operating handle and the latch.
Also known as:
Door lock rod clip, latch rod retainer, linkage clip, paddle latch rod clip, control rod clip
Product Specifications
| L&S Part No. | 800 1401 |
|---|---|
| Unit of Sale | 1 |
