Description
Overview:

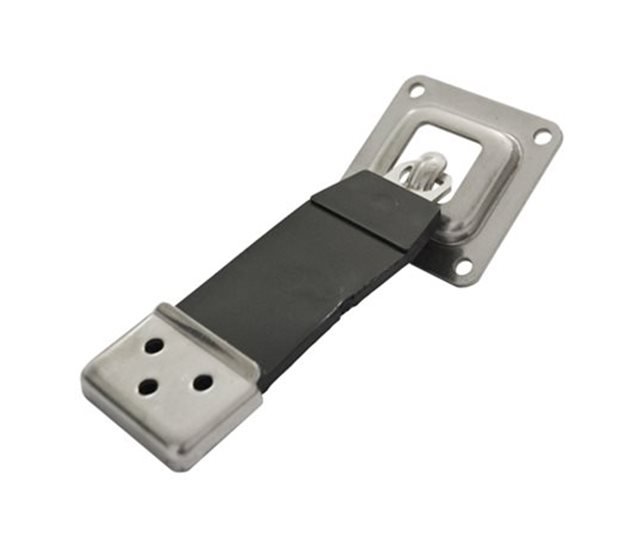

This Door Check Strap (MPN 800 1263) is a compact hold-back assembly designed to secure doors in the open position on commercial and industrial vehicles and enclosures. It combines a black rubber retainer strip with a stainless steel end plate and a matching stainless steel catch plate, providing a durable solution that resists corrosion in everyday service. The strap set is intended for use on body access doors where controlled retention is needed to prevent unwanted movement in wind or during loading. Nominal dimensions are 124 mm in length (approximately 4.88 in), with plates 40 mm wide (about 1.57 in) and 2.5 mm thick (around 0.10 in). Fixing is via 5 mm diameter holes (approximately 0.20 in), allowing straightforward installation with common M5 hardware. The stainless components are supplied in self colour (mill) finish, ready for fitting to trucks, trailers, vans, generator sets and cabs where a reliable, low-maintenance door retainer is required.
Key Features:
- Black rubber retainer strap with stainless steel end and catch plates
- Stainless steel components in self colour (mill) finish
- Nominal length: 124 mm (approx. 4.88 in)
- Plate width: 40 mm (approx. 1.57 in)
- Plate thickness: 2.5 mm (approx. 0.10 in)
- Fixing holes: 5 mm diameter (approx. 0.20 in), suitable for M5 fixings
- Supplied as strap, end plate and catch plate set for door retention
- Designed for durability and corrosion resistance in fleet environments
Typical Applications:
Used on trucks, trailers and vans for retaining body access doors; on generator sets (gensets) to hold enclosure doors open during service; and on cabs where a compact check strap is required to secure panels or small doors in the open position.
Also known as:
Door retainer; Door hold-back; Door stay; Rubber door strap; Door holder; Door catch strap; Check strap
Product Specifications
| L&S Part No. | 800 1263 |
|---|---|
| Unit of Sale | 1 |
