Description
Overview:

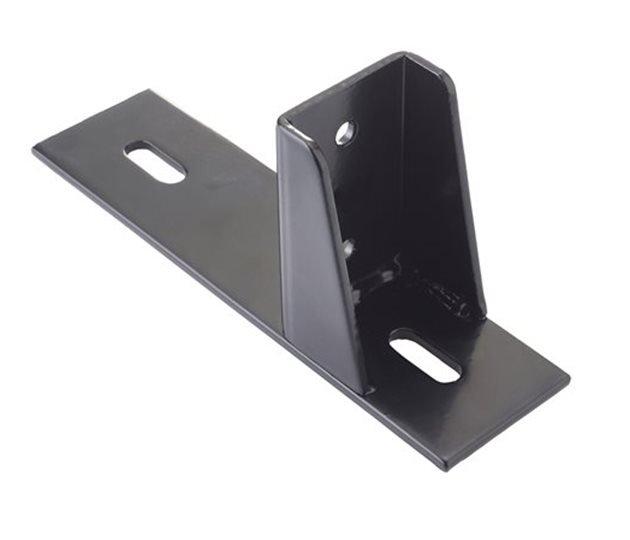

Body Mounting Bracket Pedestal (MPN 800 1334) for lower fitment, fabricated from mild steel and finished in black e‐cote to provide durable corrosion protection. Designed to secure a body or subframe to the chassis rail, this pedestal suits pre‐2010 Citroen Relay, Fiat Ducato and Peugeot Boxer 3.5T chassis, and is also useful in general truck and trailer bodybuilding where a pedestal‐style mount is required. Overall size is 226mm long (8.90 in), 50mm wide (1.97 in) and 95mm high (3.74 in), with a 5mm (0.20 in) material thickness for strength. It provides two round fixing holes and two slotted holes to assist alignment during installation and accommodate chassis tolerances. Supplied in a universal pattern widely used by body builders and fleet repairers for replacement or refurbishment of van bodies, dropsides and box bodies on light commercial chassis.
Key Features:
- Fabricated mild steel construction for robust body-to-chassis mounting
- Black e‐cote finish for enhanced corrosion resistance on commercial vehicles
- Lower fitment pedestal design for chassis rail mounting
- Length 226mm (8.90 in), width 50mm (1.97 in), height 95mm (3.74 in)
- Material thickness 5mm (0.20 in) for load-bearing stability
- 2 x round holes Ø8.5mm (0.34 in) for standard fixings
- 2 x slots 11 x 40mm (0.43 x 1.57 in) to aid alignment and tolerance take-up
- Universal range component suitable for bodybuilders and fleet maintenance
- Compatible with pre‐2010 Citroen Relay, Fiat Ducato and Peugeot Boxer 3.5T
- Applicable across truck and trailer body installations where a pedestal is required
Typical Applications:
Used to mount or support van bodies and subframes to chassis rails on light commercial vehicles and small trucks, including box bodies, dropsides, tippers and plant transporters. Also suitable for general truck and trailer bodybuilding and repair where a universal lower pedestal bracket is specified.
Also known as:
Chassis body pedestal; Body-to-chassis mounting bracket; Lower body mount; Body support bracket; Pedestal mounting bracket
Product Specifications
| L&S Part No. | 800 1334 |
|---|---|
| Unit of Sale | 1 |
