Description
Overview:

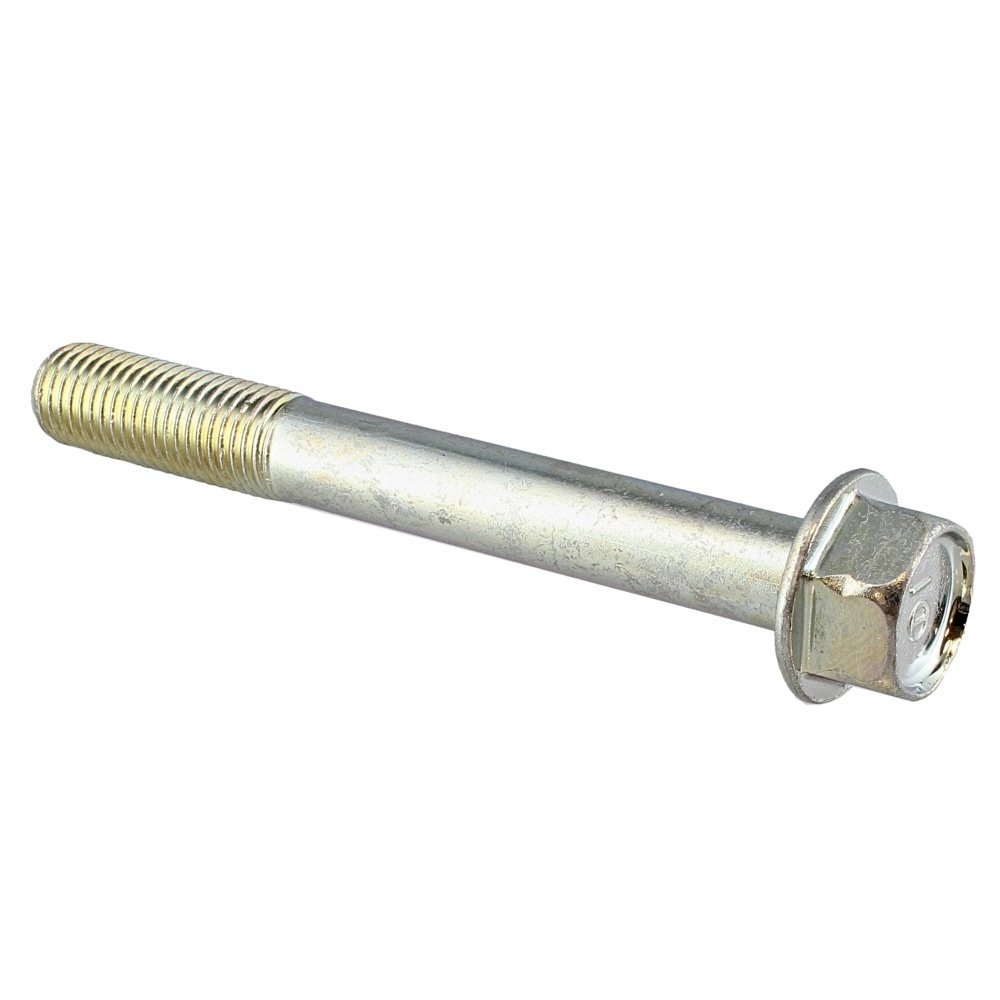

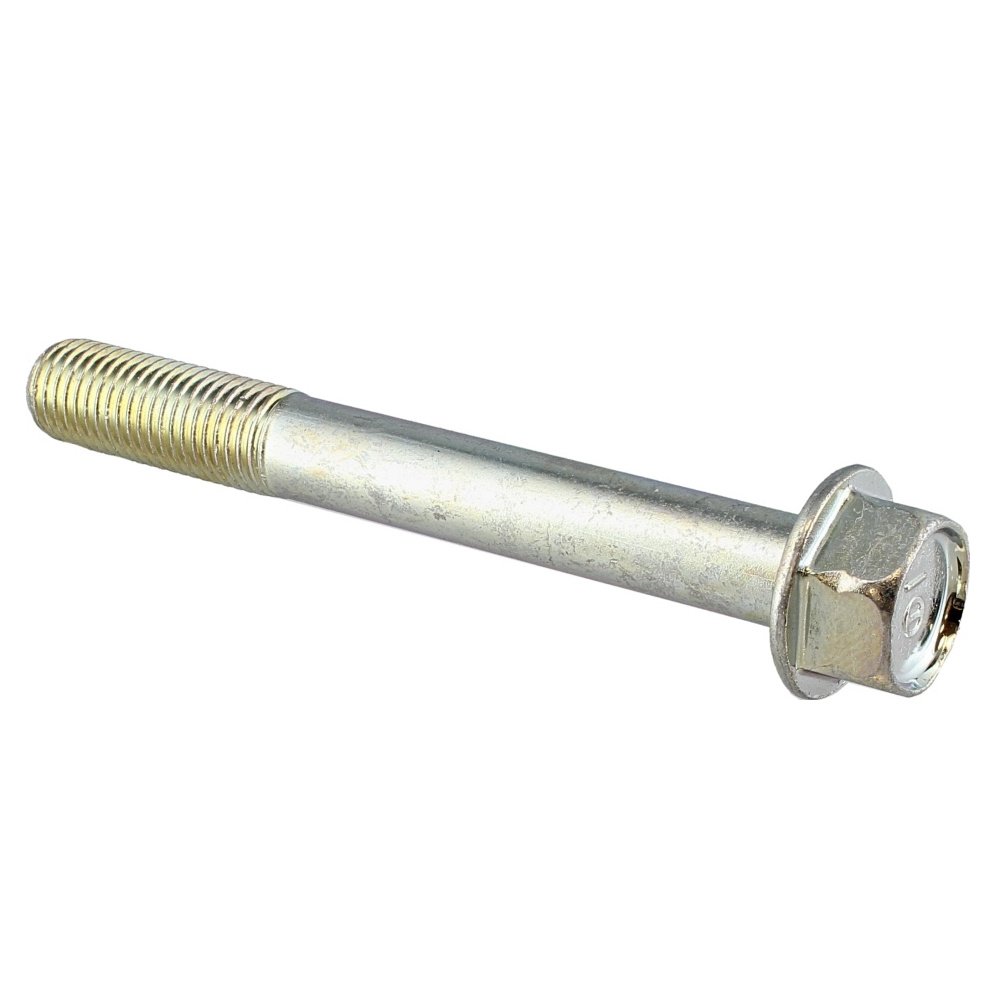

The Bolt Flange 10mm x 80mm is a steel hex-flange bolt designed to secure engine components on Honda-powered equipment. It uses a built-in washer face to spread load and resist loosening in high-vibration settings. Finished with a protective zinc coating, it offers good corrosion resistance in outdoor and on-site use. Sized at 10 mm diameter (approx. 0.39 in) by 80 mm length (approx. 3.15 in), it matches the Honda reference MPN 95701-1008000 for easy identification. Intended for Honda engines found on generators and similar machinery, including the EC5000, it is suitable for brackets, covers, casings, and general engine fixings where an M10 flange bolt of this length is specified. A practical replacement when original fasteners are worn, corroded, or missing.
Key Features:
- Honda reference MPN 95701-1008000 for straightforward cross-checking and ordering
- Dimensions: 10 mm diameter (approx. 0.39 in) x 80 mm length (approx. 3.15 in) for the correct reach and engagement
- Nominal M10 thread; core diameter approx. 9.8 mm for secure fastening and alignment
- Hex flange head distributes clamping force and helps reduce the need for a separate washer
- Steel construction with a zinc finish for durability and corrosion resistance
- Suited to engine environments with vibration and heat cycles
- Consistent machining for clean thread engagement and predictable torqueing
- Straightforward to fit using standard hand tools
- Helpful as a like-for-like replacement where the original fastener specification is required
- Versatile use across multiple engine attachment points (covers, brackets, frames)
Typical Applications:
Used for fastening engine brackets, frames, guards, and cover plates on Honda engines used in generators, construction equipment, and garden machinery. Common on assemblies where an M10 x 80 mm flange bolt is specified, such as the Honda EC5000 generator set. Suitable for maintenance, repair, and overhaul tasks where reliability and correct clamping are important.
Also known as:
M10 x 80 flange bolt, hex flange bolt, flanged hex screw, integral washer bolt, engine mounting bolt, Honda engine fastener, JIS flange bolt, metric flange head bolt.
Fits Models:
EC5000
Product Specifications
| L&S Part No. | 95701 10080 00 |
|---|---|
| Manufacturer | Honda |
| OEM No. | 957011008000 |
| Unit of Sale | 1 |
| Applications | EC5000 |
| Machine Type | Engines |
| Fits Models | EC5000 |
