Description
Overview:

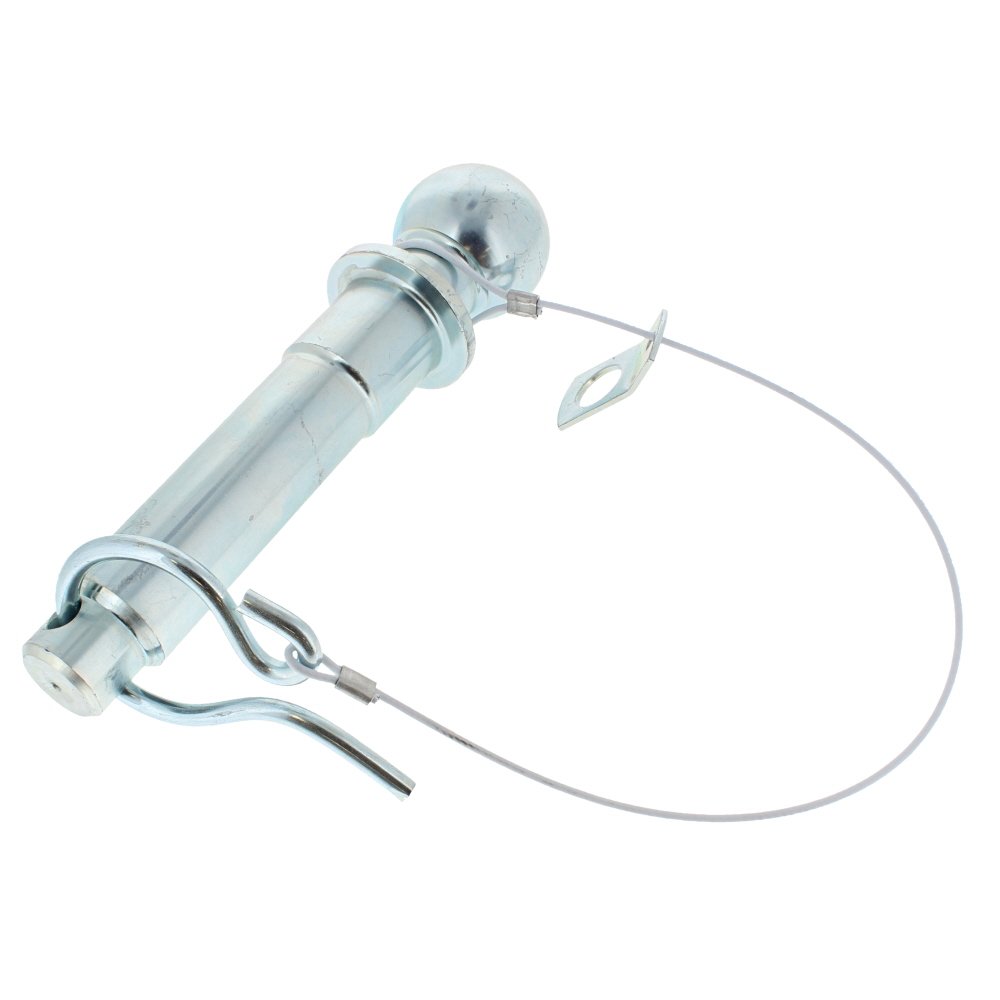

Replacement ball and pin assembly for the Bradley E100TC four-bolt jaw, pin and ball coupling. Carries a 50mm tow ball on a 32mm diameter pin, so the one assembly restores both the ball coupling and the pin coupling function of the parent unit. Supplied with a retaining wire, safety pin and chain. Type approved. Fitted as a wear item where the ball has worn beyond limits or the pin has been lost, without replacing the coupling body.
Specification:
- Ball diameter: 50mm
- Pin diameter: 32mm
- Shank length: 126mm
- Capacity: 3500kg
- Supplied with safety pin and chain
- Type approved
- Manufacturer part number: 185012715
- Fits: Bradley E100TC
Typical Applications:
Service replacement on commercial vehicles and site transport running a Bradley E100TC combination coupling, where both towing eye trailers and 50mm ball couplings are in use.
Product Specifications
| L&S Part No. | KIT 170 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | AL-KO Kober |
| OEM No. | 185012715 |
| Unit of Sale | 1 |
