Description
Overview:

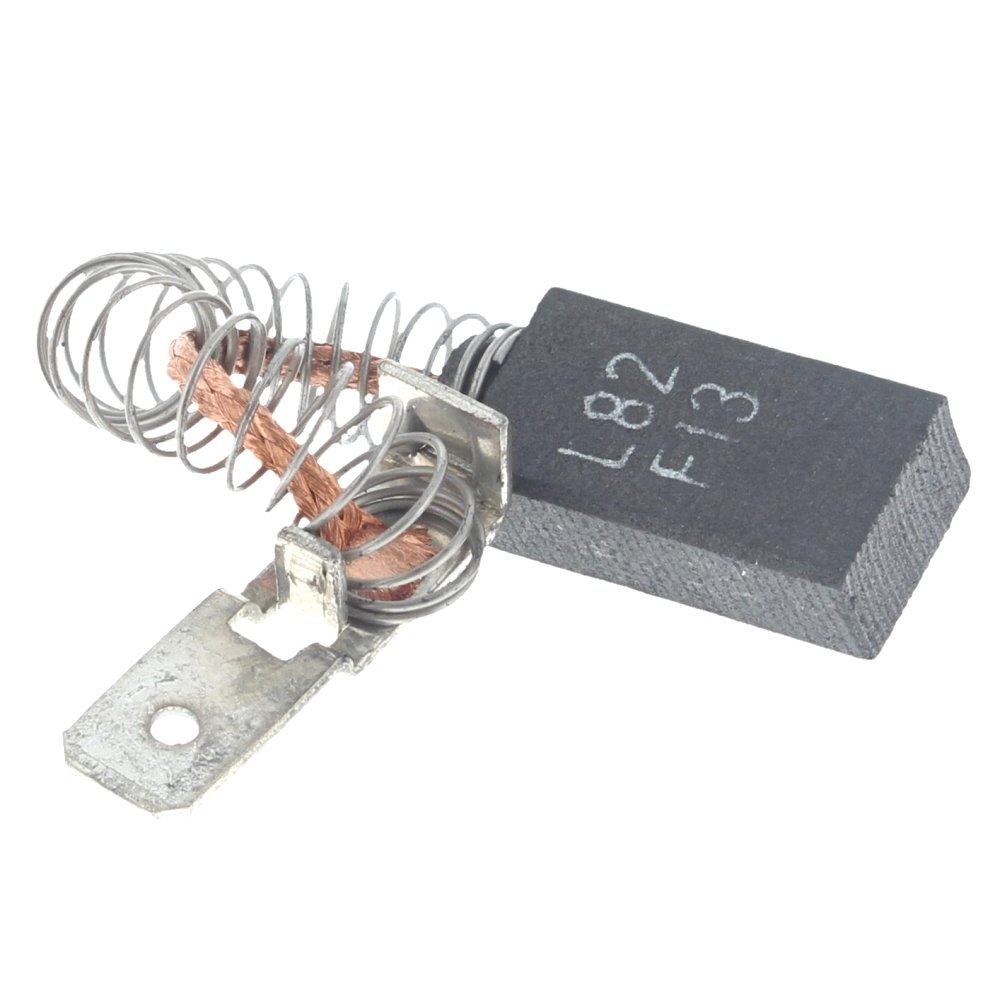

This Genuine DeWalt carbon brush (OEM No. 940146-00) is a service part for 230 V brushed motors used in DeWalt/Black & Decker power tools, including routers such as the DW624 and DW625E. Manufactured to DeWalt's specification, the high-grade carbon/graphite element with a pre-fitted spring and braided lead maintains consistent contact with the commutator, supporting smooth starting, steady power delivery, and reduced sparking. Replacing worn brushes helps protect the armature and extends overall motor life. The precise form and hardness ensure a correct fit and dependable performance in 230 V systems common to UK and EU mains. This Genuine Part offers reliable compatibility and is suitable for routine servicing, repair, and preventative maintenance in professional and DIY settings.
Key Features:
- Genuine DeWalt/Black & Decker part (OEM 940146-00) for assured fit and performance
- Designed for 230 V tools to suit UK/EU mains supplies
- Carbon/graphite brush with integrated spring and braided lead for stable electrical contact
- Helps reduce arcing and overheating, protecting the armature and commutator
- Restores lost performance caused by worn brushes and supports consistent power output
- Durable material grade for long service life and minimal motor wear
- Straightforward to fit during routine servicing; minimal downtime when replaced in pairs
- Suitable for professional workshops, site work, and DIY repairs where reliability matters
- Clear wear indicators: short brush length, excessive sparking, intermittent running
Typical Applications:
Routine maintenance and repair of DeWalt 230 V power tools, especially routers used in carpentry, joinery, shopfitting, and manufacturing. Ideal for hire fleets and trade users who need dependable tool uptime. Replace when brushes are worn to maintain smooth running, reduce motor damage risk, and keep cutting and routing tasks accurate and consistent.
Also known as:
Commutator brush, armature brush, electric tool brush, service carbon, carbon motor insert for DeWalt, electrical contact brush for power tools.
Fits Models:
DW624
DW625E
DW625EType4
DW625EType5
DW629
TY174
Product Specifications
| L&S Part No. | 940146-00 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | DeWalt/Black and Decker |
| OEM No. | 940146-00 |
| Unit of Sale | 1 |
| Applications | DW624, DW625E, DW625EType4, DW625EType5, DW629, TY174 |
| Machine Type | Mitre Saw |
| Fits Brands | Black & Decker, DeWalt |
| Fits Models | DW624 Type 1 | DW625E Type 4 | DW625E Type 5 | DW629 Type 1 | TY174 Type 1 |
