Description
Overview:

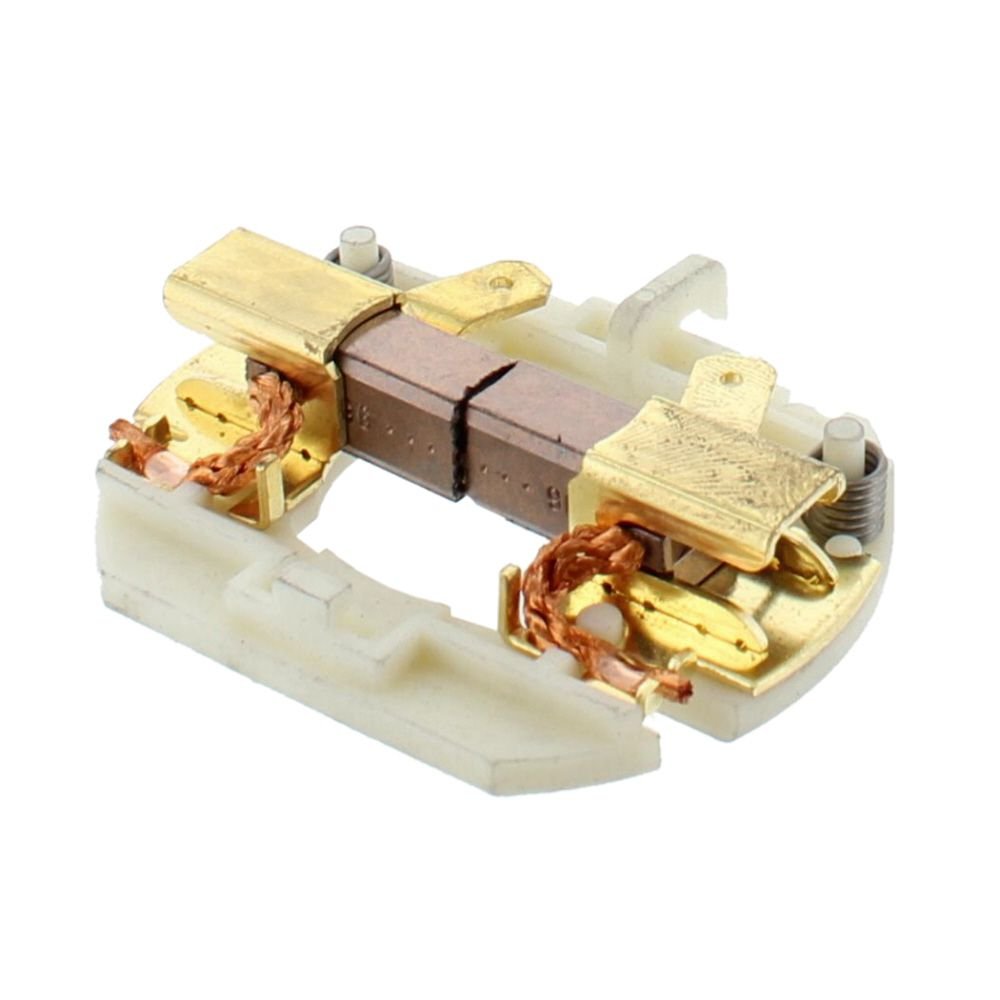

This Brush Plate is a genuine DeWalt/Black & Decker replacement for selected cordless drill drivers, including the DCD730L and DCD780C. It sits around the motor commutator and holds the carbon brushes in the correct position to maintain a reliable electrical path. Built with a tough moulded polymer body and copper contact tracks/terminals, it withstands vibration and regular use on site or in the workshop. Replacing a worn or heat-damaged plate restores smooth motor operation, helps reduce sparking, and supports consistent power delivery. As an OEM part, it matches the original specification for fit and function, so it installs cleanly inside the gearbox/motor housing and returns your DeWalt drill to dependable service.
Key Features:
- Genuine OEM DeWalt/Black & Decker part (N109433) for exact fit and function
- Maintains stable brush alignment and electrical connectivity to the motor
- Durable moulded body with copper conductors for long service life
- Helps reduce arcing and intermittent power loss caused by worn components
- Straightforward, no-modification replacement using basic hand tools
- Designed for repeated use in trade, site, and DIY environments
- Matches original mounting points and wiring layout for quick refitting
- Supports tool efficiency and helps extend overall drill lifespan
Typical Applications:
Used to replace a worn, cracked, or burnt brush carrier inside compatible DeWalt cordless drill drivers. Common when tools see heavy fastening, framing, joinery, kitchen fitting, maintenance, and light construction tasks. A fresh plate restores reliable starts, consistent speed, and smoother running, helping avoid downtime and keeping everyday drilling and screwdriving work on track.
Also known as:
Carbon brush holder, brush carrier assembly, motor brush housing, armature brush frame, motor end-cap brush housing, brush ring, contact plate assembly, commutator brush carrier.
Fits Models:
DCD730, DCD730C, DCD730L, DCD735, DCD735C, DCD735L, DCD780, DCD780C, DCD780L, DCD785, DCD785C, DCD785L
Alternate Part Numbers:
N109433
Product Specifications
| L&S Part No. | N109433 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | DeWalt/Black and Decker |
| OEM No. | 109433 |
| Unit of Sale | Each |
| Applications | DCD730, DCD730C, DCD730L, DCD735, DCD735C, DCD735L, DCD780, DCD780C, DCD780L, DCD785, DCD785C, DCD785L |
| Machine Type | Drills |
| Fits Brands | Black & Decker, DeWalt |
| Fits Models | DCD730 | DCD730 Type 10 | DCD735 | DCD735 Type 10 | DCD735L Type 1 | DCD780 | DCD780 Type 1 | DCD780C Type 1 | DCD785 | DCD785 Type 10 | DCD785L Type 1 |
