Description
Overview:

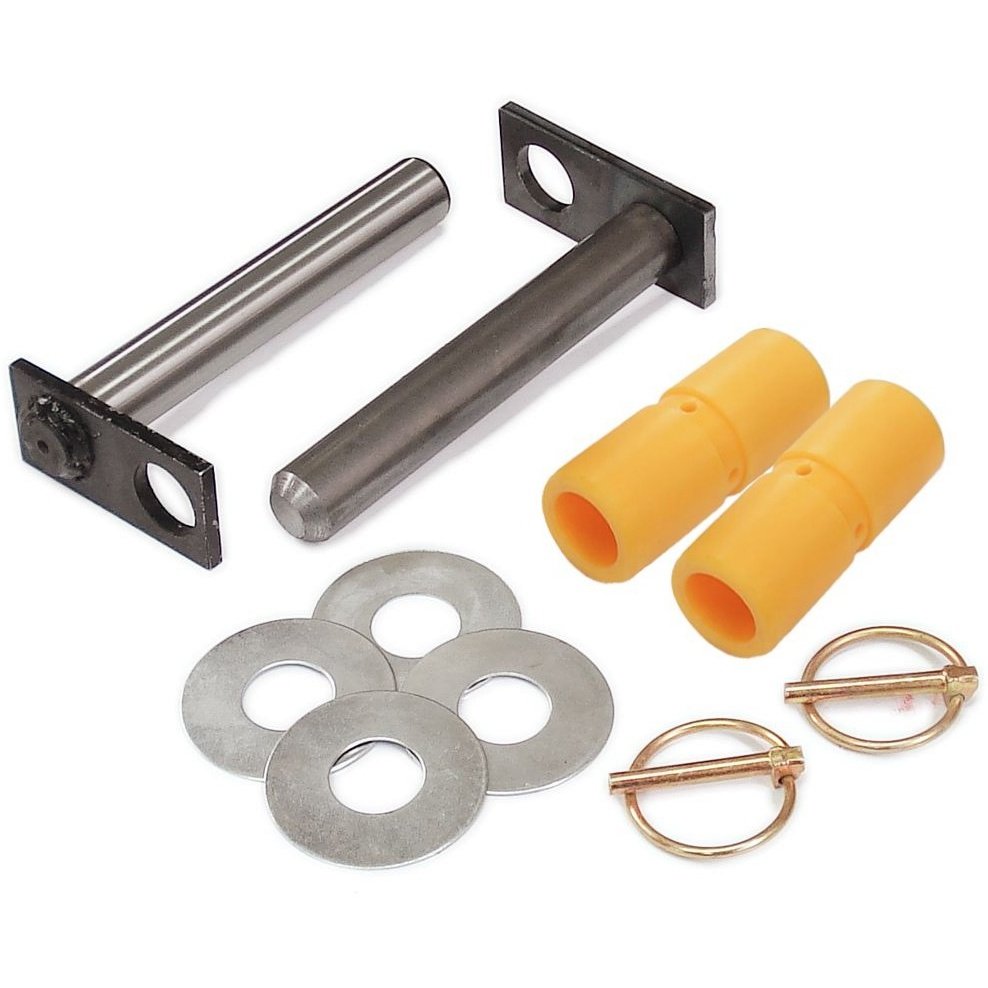

This Bucket Pin & Bush Kit is a service set for the bucket end of JCB mini excavators in the 2-4 tonne class. It restores a smooth, tight bucket pivot and helps prevent excess wear across the linkage. The kit includes two bucket pins, two bucket bushes, four 3 mm steel shims, and two lynch pins, giving you the core parts needed to refresh a worn bucket joint. Manufactured from durable, hardened steel with a corrosion-resistant finish, the components are built to handle daily digging and loading work. Suitable for a range of compact JCB machines, including the 802 and 803, this kit is designed for straightforward fitting and reliable operation on site, in the yard, or on landscaping projects.
Key Features:
- Complete set: 2 pins, 2 bushes, 4 x 3 mm shims, 2 lynch pins for securing
- Hardened steel construction for strength and long service life under heavy use
- Machined bushes support accurate alignment and smooth bucket movement
- 3 mm shims help set correct side clearance and reduce play in the joint
- Suited to JCB mini diggers in the 2-4 tonne range for broad compatibility
- Corrosion-resistant finish supports performance in wet and muddy conditions
- Straightforward installation with common workshop tools to minimise downtime
- Helps reduce knock, drift, and uneven wear at the bucket pivot points
- Practical maintenance solution for routine overhaul or during bushing work
- Designed to cope with typical site environments including soil, clay, and aggregates
Typical Applications:
Use when a bucket develops play, noise, or visible wear at the pivot. Ideal during bucket changeovers, linkage repairs, or scheduled maintenance on compact excavators. Suitable for construction, utilities, fencing, groundworks, agriculture, and landscaping where reliable bucket articulation is needed for digging, grading, loading, and trenching tasks.
Also known as:
Bucket linkage repair kit, pin and bush repair kit, excavator bucket pivot kit, bucket joint service kit, dipper-end pin and bush kit, mini digger bucket hinge kit.
Fits Models:
802, 802.4, 8024, 8025, 8025 ZTS, 8025ZTS, 8027, 8027 ZTS, 8027ZTS, 803, 8030, 8030 ZTS, 8030ZTS, 8032, 8032 ZTS, 8032ZTS, 8035, 8035 ZTS, 8035ZTS, 804
Product Specifications
| L&S Part No. | 202 806 |
|---|---|
| Unit of Sale | 1 |
| Size | 35mm |
| Applications | 802, 802.4, 8024, 8025, 8025 ZTS, 8025ZTS, 8027, 8027 ZTS, 8027ZTS, 803, 8030, 8030 ZTS, 8030ZTS, 8032, 8032 ZTS, 8032ZTS, 8035, 8035 ZTS, 8035ZTS, 804 |
| Machine Type | Excavators |
| Fits Brands | JCB |
| Fits Models | 802 | 802.4 | 803 | 804 | 8025 | 8027 | 8030 | 8032 | 8035 |
