Description
Overview:

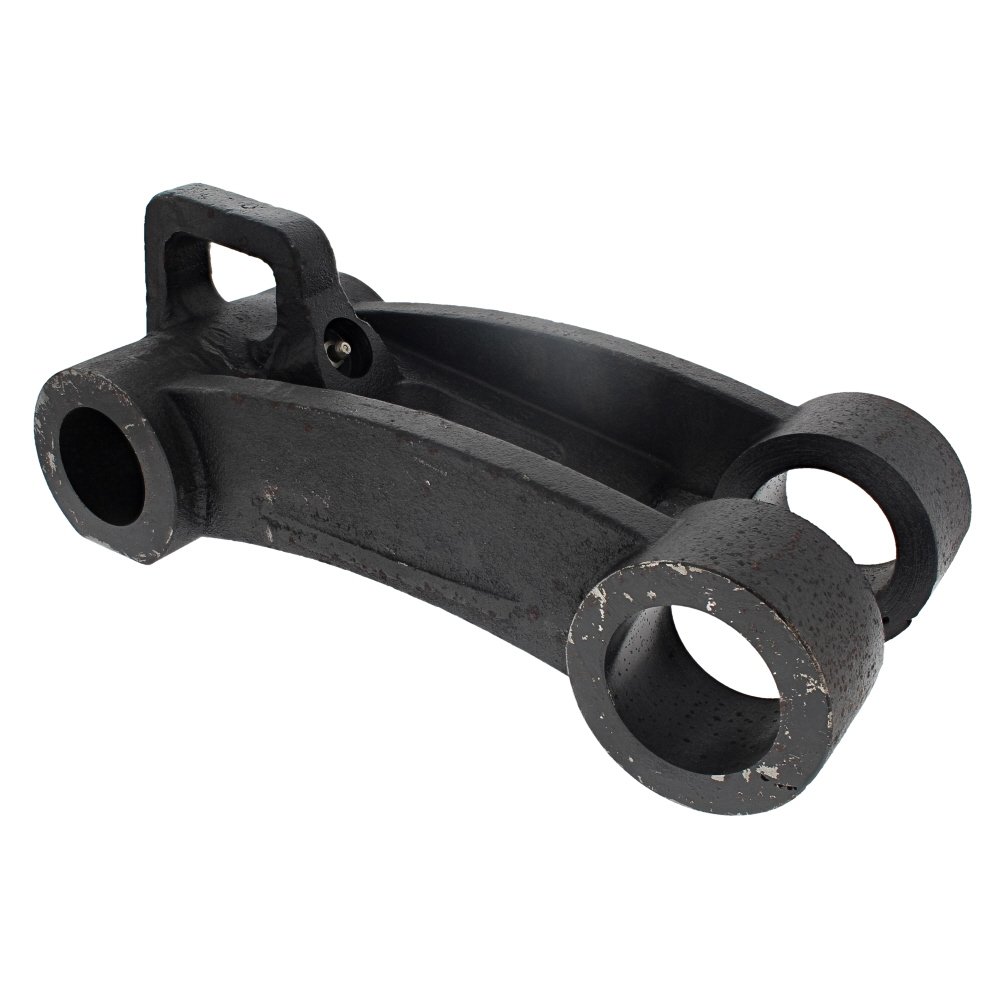

This Bucket Tipping Link is a non-genuine replacement part for JCB mini diggers, engineered to replace OEM number 232/03901. Built from heavy-duty steel with precision-drilled mounting eyes, it restores smooth, controlled bucket movement and reliable kinematics at the dipper end. Intended for compact excavators working on construction and landscaping tasks, it suits operators who need consistent performance and straightforward maintenance. Compatible with machines including the JCB 803 and 804, it supports the bucket's tipping function by linking the hydraulic ram to the bucket linkage, helping the machine load, tip and grade accurately. Robust construction and a practical fit make it a dependable choice for keeping older and hard-working mini diggers productive without excessive downtime.
Key Features:
- Non Genuine Part: quality aftermarket replacement for cost-effective upkeep
- Direct replacement for OEM 232/03901 to restore correct linkage geometry
- Tough steel construction designed for high pin loads and repetitive cycling
- Smooth tipping action for improved control during grading and loading
- Precision mounting eyes for consistent alignment and reliable operation
- Suitable for everyday site conditions and frequent articulation under load
- Helps reduce play in worn linkages when fitted with sound pins and bushes
- Straightforward installation with standard workshop tools
- Compatible with a range of JCB mini diggers for simplified fleet maintenance
- Ideal for proactive maintenance schedules to minimise unplanned downtime
Typical Applications:
Used on mini diggers handling trenching, grading, backfilling and spoil loading. Suitable for landscaping, utilities work, small construction projects and hire fleet maintenance. Helps maintain accurate bucket positioning where repeatable tipping and curling are needed for tidy trench walls, level pads and controlled discharge into barrows, skips or trailers.
Also known as:
Bucket link, bucket tipping link arm, rocker link, linkage arm, bucket lever, bucket actuator link, excavator bucket linkage component.
Fits Models:
802.7, 8025, 8027, 803, 8030, 804
Product Specifications
| L&S Part No. | 831 617 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Machine Type | Excavators |
| Key Features | - Non-genuine replacement for JCB mini diggers, OEM 232/03901 - Heavy-duty steel construction for high pin loads - Precision-drilled mounting eyes ensure reliable operation - Compatible with JCB models 802.7, 8025, 8027, 803, 8030, 804 - Supports smooth bucket tipping for accurate grading and loading |
| Fits Models | 803 | 804 | 8025 | 8030 | 802.7 |
