Description
Overview:

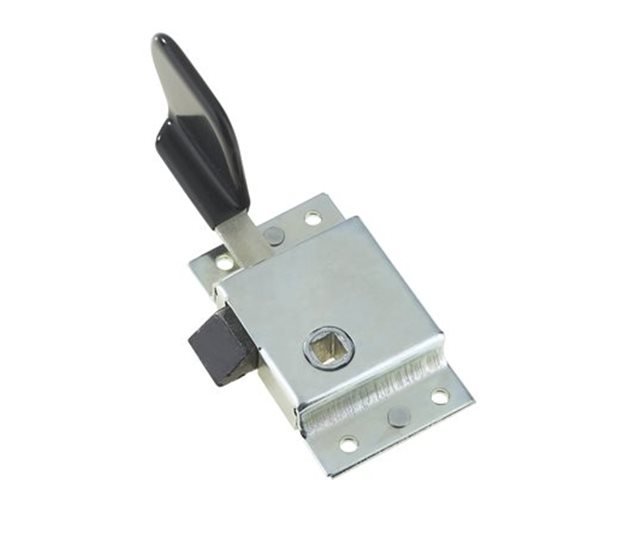

The Slam Lock With Handle, Right Hand, Zinc Plated, 86.5 x 52.5mm (MPN 800 1091) is a compact right-hand action latch for vehicle and equipment doors that need a positive "slam-to-close" operation. The body is pressed from mild steel and finished in zinc plating for corrosion protection in transport and bodywork environments. A malleable iron tongue provides a robust latch bolt, and the unit incorporates an 8 mm square drive. The lock is sized to suit compact door leaves and panels, with an overall footprint of 86.5 mm by 52.5 mm and a body thickness of 16 mm. It mounts via 5 mm diameter fixing holes for straightforward installation on metal or timber-faced doors. Typical uses include cab and body access doors on trucks and trailers, bus compartments, generator set enclosures and horsebox doors where a durable, easy-closing latch with an integral handle is required.
Key Features:
- Right-hand slam action with integral handle
- Pressed mild steel body with zinc-plated finish for corrosion resistance
- Malleable iron tongue (latch bolt) for durability
- 8 mm square drive interface
- Overall length: 86.5 mm (3.41 in)
- Width: 52.5 mm (2.07 in)
- Body thickness: 16 mm (0.63 in)
- Tongue size: 16 mm (0.63 in)
- Fixing holes: Ø5 mm (0.20 in)
- Suitable for slam-to-latch closures on vehicle and equipment doors
- Brand: Albert Jagger
Typical Applications:
Used on access doors and cabs across trucks, trailers and buses, as well as generator set enclosures and horseboxes. Suitable for vehicle bodywork doors and service compartments where a compact right-hand slam lock with handle is needed.
Also known as:
Slam latch, right-hand door latch, cab door latch, RH slam lock, square-drive latch
Product Specifications
| L&S Part No. | 800 1091 |
|---|---|
| Unit of Sale | 1 |
