Description
Overview:

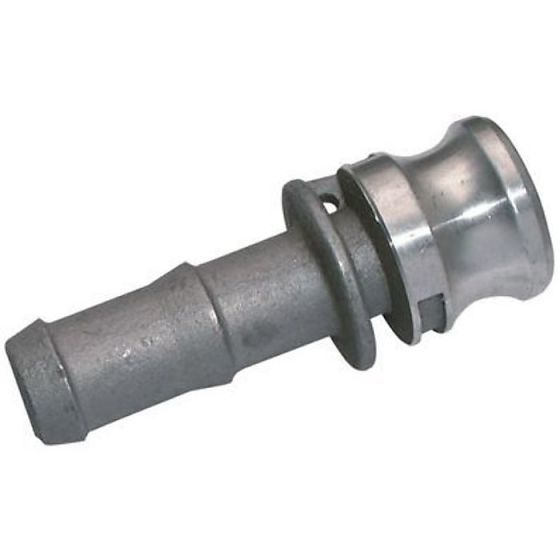

The Camlock 2" Hose Tail Coupling Type E Aluminium (MPN 884 200) is a male cam and groove adapter with a hose tail for fast, tool-free hose connections. Made from lightweight, corrosion-resistant aluminium in a natural silver finish, it is built for regular use in pumps, sprayers, and transfer systems on construction sites, farms, and industrial plants. This Type E adapter mates with Type C, B, and D couplers, as well as dust caps (DC), to create a secure coupling in seconds. Nominal size is 2" (50.8 mm). Measured dimensions are approximately 43.6 mm inner diameter and 46.4 mm outer diameter at the fitting end, and 52 mm inner diameter and 62 mm outer diameter at the hose tail, aiding selection and compatibility checks.
Key Features:
- Quick-connect cam and groove action for fast hook-up and release without tools
- Durable aluminium body for reliable service with reduced weight compared to brass or stainless steel
- Compatible with Type C, B, and D couplers, plus dust caps (DC), for flexible pairing in mixed systems
- Nominal size 2" (50.8 mm); hose tail end approx. 52 mm ID and 62 mm OD to suit common 2" hose assemblies
- Fitting end approx. 43.6 mm ID and 46.4 mm OD for accurate system matching
- Ribbed hose tail helps grip the hose when clamped with suitable worm-drive or T-bolt clamps
- Smooth internal bore supports steady flow and helps minimise pressure loss
- Simple to fit, clean, and maintain; seal is formed by the mating female coupler
Typical Applications:
Use on portable and fixed pumps, transfer lines, irrigation and washdown hoses, dewatering sets, tanker loading, and general fluid handling in agriculture, construction, manufacturing, and light chemical processing, where quick changeovers and reliable couplings are required.
Also known as:
Type E male adapter x hose tail, quick-release hose connector, hose tail camlock, barbed camlock fitting, hose spigot cam coupling, Type E cam adapter, quick-connect hose tail, male cam adapter hose tail.
Product Specifications
| L&S Part No. | 884 200 |
|---|---|
| Unit of Sale | 1 |
