Description
Overview:

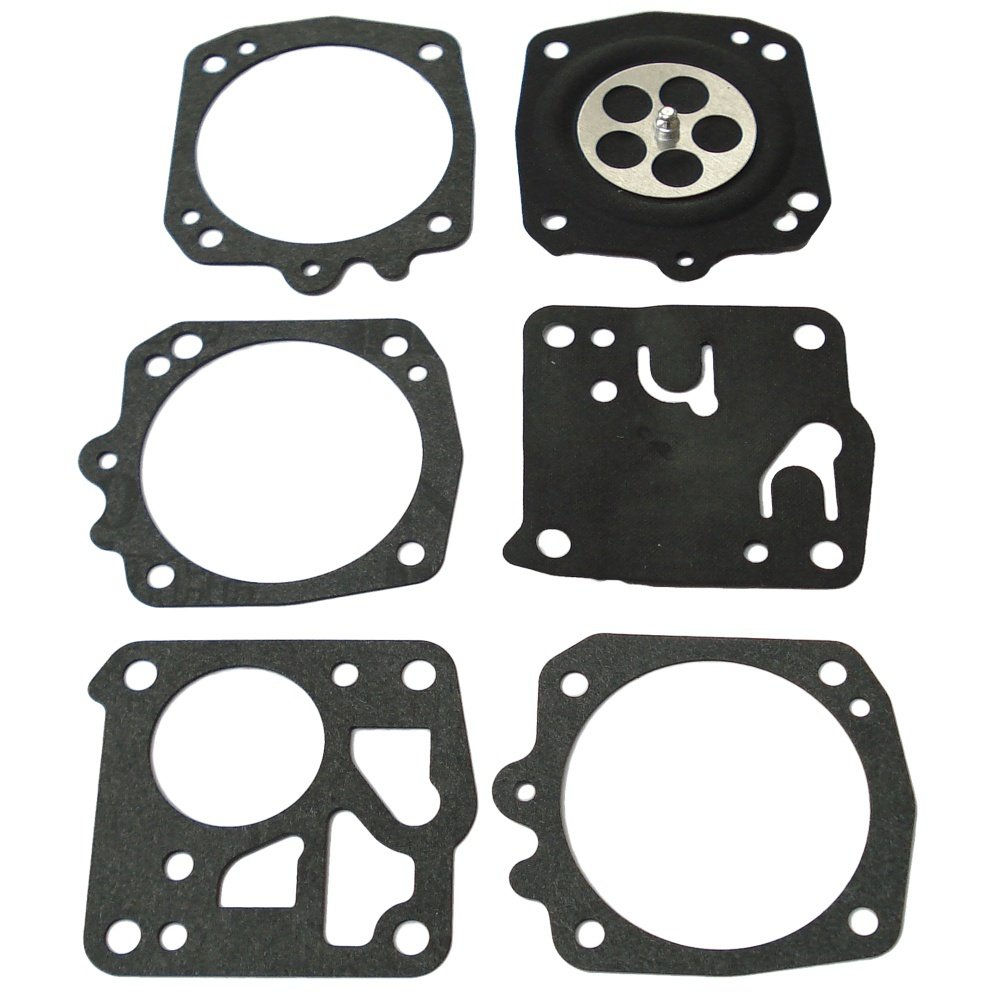

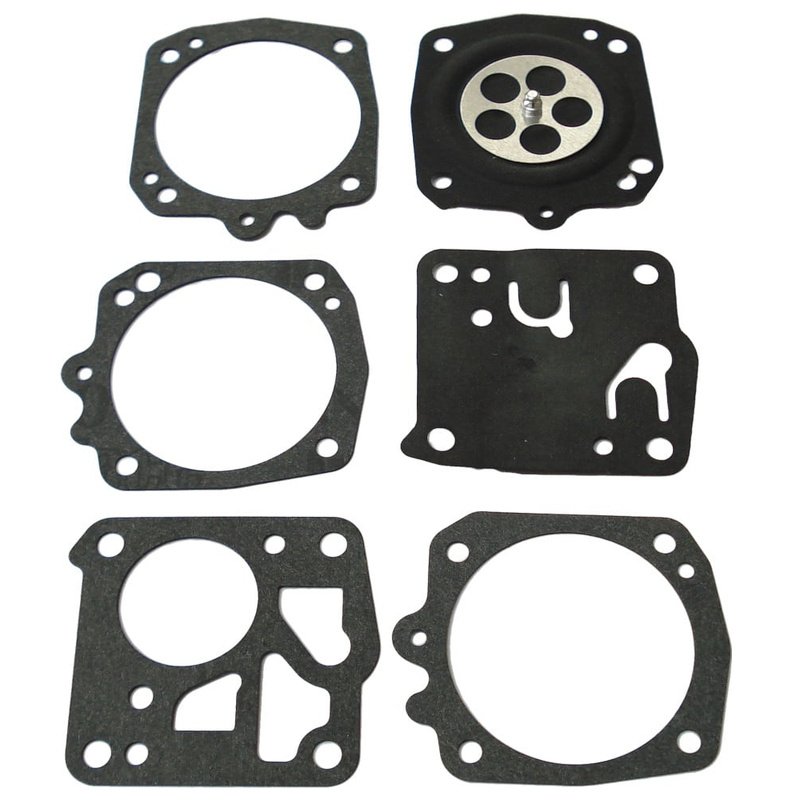

The Tillotson Carb Diaphragm Kit (G Carb) is a Genuine Part designed to restore reliable fuel delivery in small two‐stroke engines that use Tillotson HS‐series "G" carburettors. Built for hard‐working cut‐off saws, it is commonly found on Husqvarna/Partner models such as K650 Active and K950. The kit uses fuel‐resistant elastomer membranes and matching fibre gaskets to replace tired, shrunken, or torn originals, helping the carburettor meter fuel correctly across idle, acceleration, and full load. Replacing diaphragms is a routine service task on machines exposed to heat, vibration, and modern pump petrol; this kit provides a precise fit and dependable seal to keep performance consistent. It is a practical choice for professional users and DIY owners who want predictable starting, stable idle, and clean pickup.
Key Features:
- Genuine Tillotson quality for consistent fuel control and reliable sealing
- Fuel‐resistant diaphragm materials and fibre gaskets suited to tough site conditions
- Direct fit for Tillotson HS (G‐carb) used on selected Husqvarna/Partner cutters
- Helps cure hard starting, poor idle, hesitation, flooding, or lean running
- Supports smooth throttle response and stable engine speed under load
- Straightforward to install with basic hand tools; no machining required
- Durable construction to withstand vibration, heat cycles, and regular use
- Suitable for preventive maintenance to extend engine and carburettor life
Typical Applications:
Used during service or repair of cut‐off saws/disc cutters working on concrete, masonry, steel, and roadwork materials. Ideal when a machine has been stored for long periods, exposed to stale fuel, or shows symptoms of fuel metering issues. Restores dependable starting, idle stability, and cutting performance on busy job sites and in workshop maintenance programmes.
Also known as:
Carburettor diaphragm and gasket kit, carb rebuild kit, gasket/diaphragm set, membrane kit, HS service kit, G‐carb repair kit, carb service pack, Tillotson DG‐series kit, carb overhaul kit.
Fits Models:
K650 Active, K650Active, K950
Alternate Part Numbers:
DG10HS, HS15
Product Specifications
| L&S Part No. | DG-10-HS |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Tillotson |
| OEM No. | TDG-10HS |
| Unit of Sale | 1 |
| Applications | K650 Active, K650Active, K950 |
| Fits Brands | Husqvarna |
| Fits Models | K950 |
