Description
Overview:

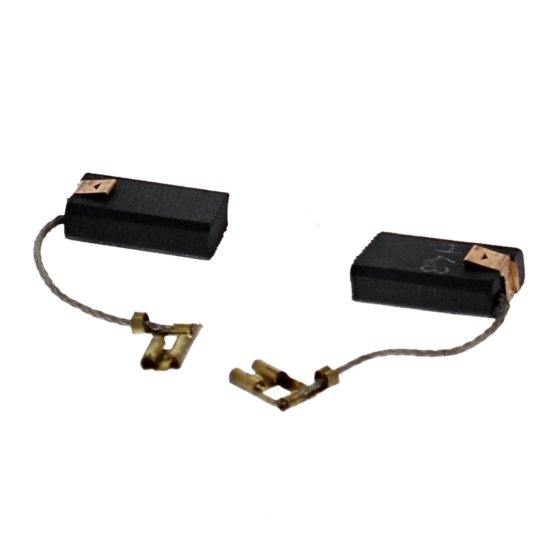

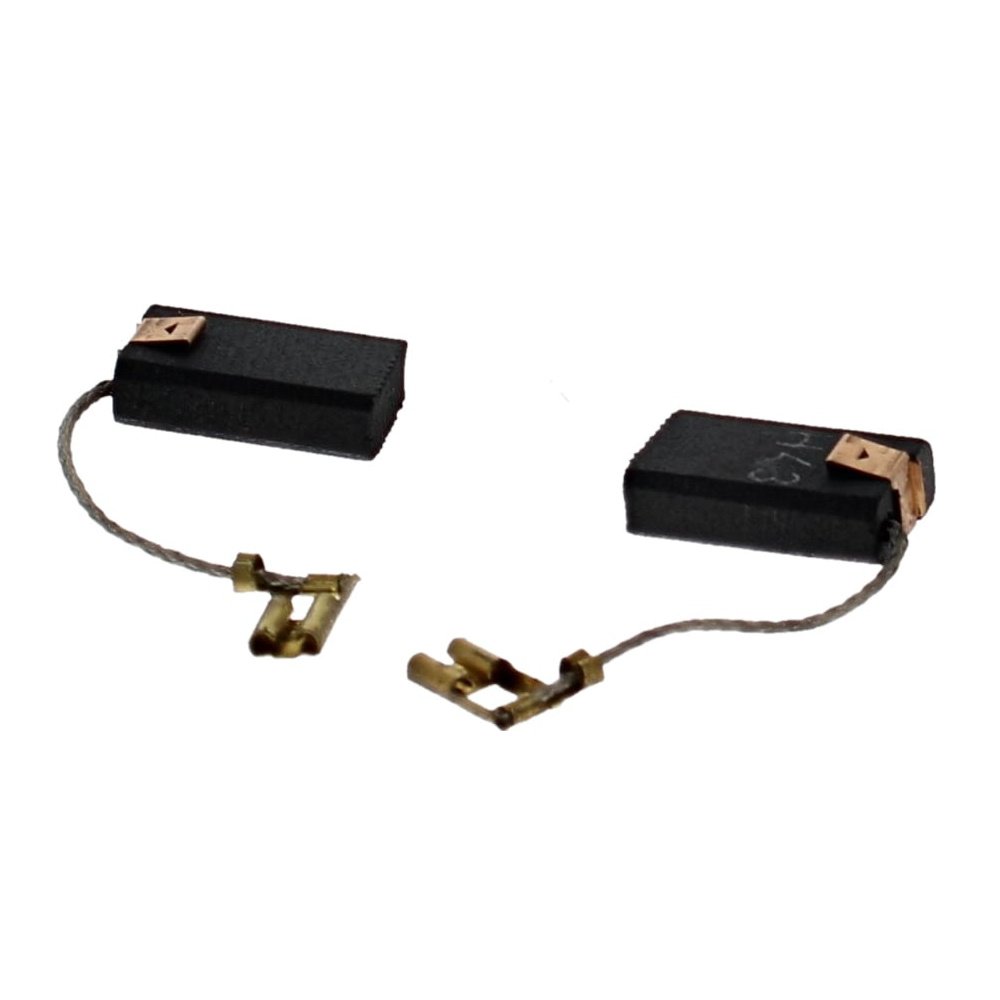

This Carbon-Brush Set is a genuine Bosch replacement for selected demolition hammers, including the GBH5DCE and 11230EVS. Made from durable carbon/graphite with conductive leads, the brushes maintain constant electrical contact with the commutator, helping the motor run efficiently and reliably. Replacing worn brushes restores power, reduces sparking, and protects the armature. Identified by OEM No. 1617014122, it is designed specifically for Bosch hammer and rotary hammer platforms, providing dependable performance for demanding site and workshop use. Suitable for routine maintenance and repair, it helps keep tools operating smoothly under load and supports a longer service life when brushes are replaced before reaching their wear limit.
Key Features:
- Genuine Bosch part (OEM 1617014122) for assured compatibility and performance
- Designed for Bosch demolition and rotary hammers listed below
- High-quality carbon/graphite for stable contact and consistent current flow
- Spring-tensioned brush design helps minimise arcing and brush bounce
- Direct replacement; straightforward to fit with basic hand tools
- Helps restore full power, smoother running, and reliable starting
- Supports preventative maintenance to reduce downtime on site
- Suitable for professional and DIY users maintaining Bosch hammers
Typical Applications:
Routine replacement of worn motor brushes in Bosch demolition and rotary hammers used for concrete breaking, chasing, drilling, and renovation work. Ideal when symptoms such as intermittent power, visible sparking, or reduced performance indicate brush wear. Keeps tools serviceable for construction, facilities maintenance, and hire fleets.
Also known as:
Motor brushes for Bosch hammers, electric motor brush set, armature brush kit, carbon motor contacts, Bosch hammer drill brushes, service brushes for demolition hammers, brush blocks for rotary hammers.
Fits Models:
11216EVS, 11219EVS, 11220EVS, 11227E, 11230EVS, 11232EVS, 11233EVS, 11244E, 11310EVS, 11312E, 11313EVS, GBH38, GBH5/40DCE, GBH5DCE, GSH 5 CE, GSH4, GSH5CE, PBH380
Alternate Part Numbers:
1617014122, 1 617 014 122, 1.617.014.122
Product Specifications
| L&S Part No. | 1617014122 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Bosch |
| OEM No. | 1617014122 |
| Unit of Sale | 1 |
| Applications | 11216EVS, 11219EVS, 11220EVS, 11227E, 11230EVS, 11232EVS, 11233EVS, 11244E, 11310EVS, 11312E, 11313EVS, GBH38, GBH5/40DCE, GBH5DCE, GSH 5 CE, GSH4, GSH5CE, PBH380 |
| Machine Type | Power Demolition Tools |
| Fits Brands | Bosch |
| Fits Models | GSH 5 CE |
