Description
Overview:

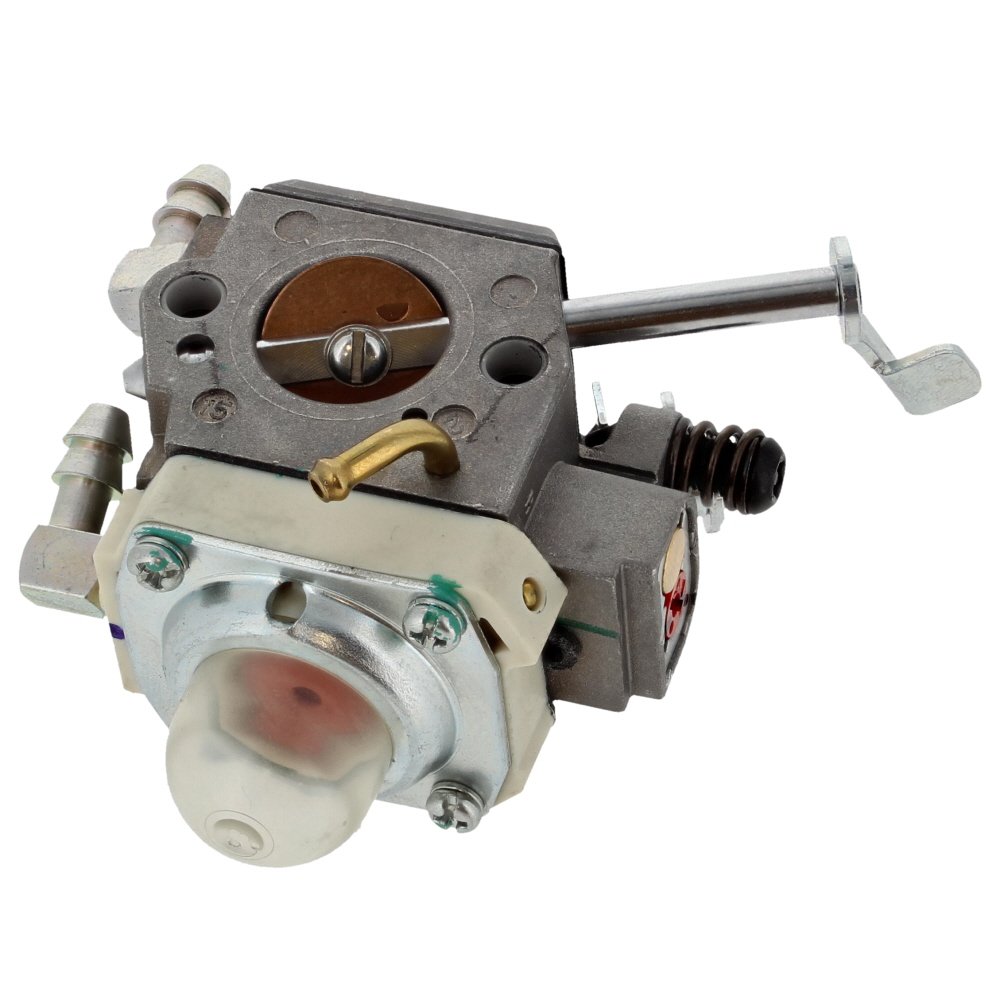

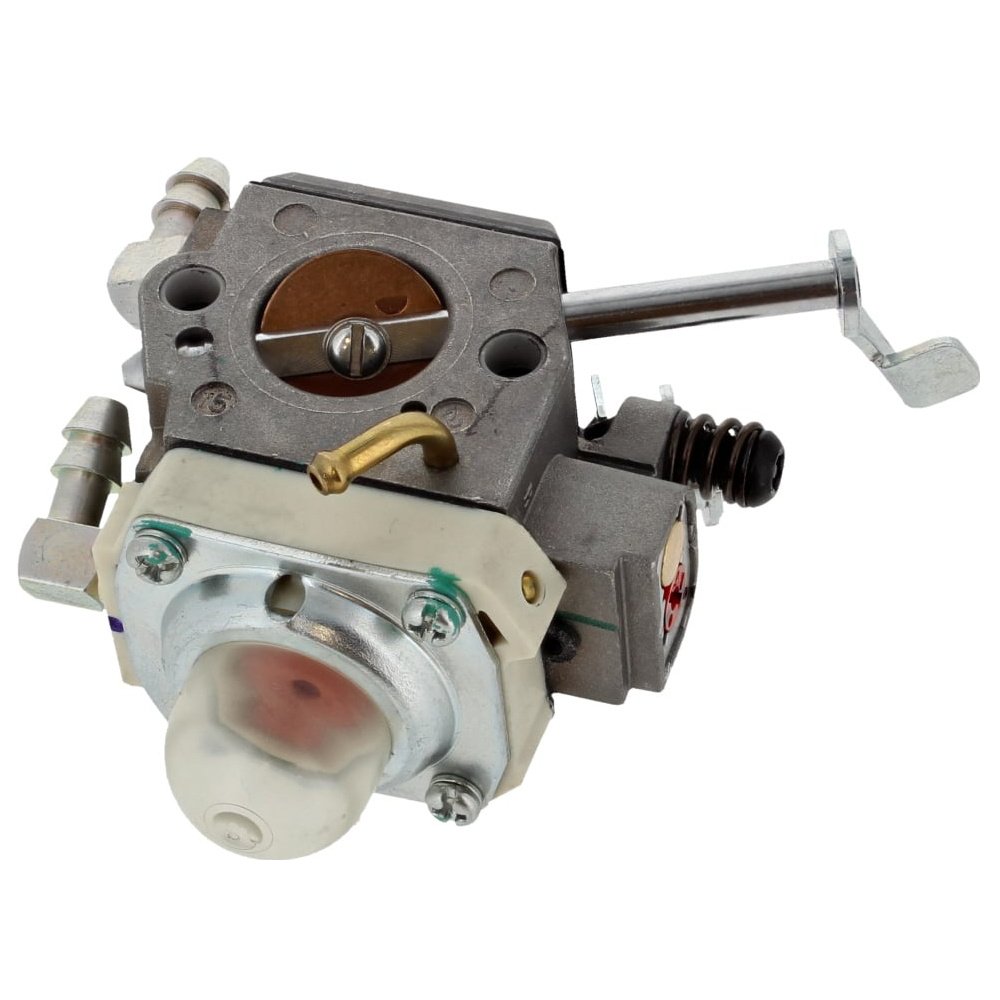

This genuine Honda carburettor (OEM 16100-ZDJ-V72) is built for the Honda GXR120RT engine and selected machines that use it, such as the BS70-4AS. The unit meters and mixes air and fuel for clean combustion, helping the engine start reliably, idle steadily, and run smoothly under load. Made with a robust die-cast aluminium body and quality components, it is designed for tough site conditions. As a direct replacement for the original unit, it restores correct fueling without modification. Suitable for construction equipment and light horticultural machinery powered by the GXR120 series, it is a dependable solution when the existing carburettor is worn, blocked, or damaged.
Key Features:
- Genuine Honda part for assured fit and performance
- Direct replacement for OEM 16100-ZDJ-V72 (replaces 5100015802)
- Compatible with Honda GXR120RT engines used in compactors and rammers
- Durable die-cast aluminium construction for long service life
- Precise fuel metering for smooth starting and stable idle
- Designed to withstand vibration and dusty site environments
- Uses existing mounting points, throttle and choke linkages
- Straightforward installation with basic hand tools, minimising downtime
- Supports efficient combustion with unleaded petrol when maintained correctly
- Suitable for routine maintenance or full carburettor renewal
Typical Applications:
Used on trench rammers, compactors and other light site equipment powered by the Honda GXR120RT. Also suitable for small horticultural machines using the same engine. Ideal when engines are hard to start, surge at idle, or show poor throttle response due to a worn or contaminated carburettor.
Also known as:
GXR120 carburettor, Honda carb assembly, carb, carburetor (US), fuel mixer, replacement carb unit, 16100-ZDJ-V72 carb, ZDJ-V72 carburettor.
Fits Models:
BS50-4AS
BS504AS
BS60-4AS
BS604AS
BS70-4AS
BS704AS
GXR120RT
Alternate Part Numbers:
16100 ZDJ V72, 16100-ZDJ-V72, 16100ZDJV72, 5100015802
Product Specifications
| L&S Part No. | 16100 ZDJ V72 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Honda |
| Unit of Sale | 1 |
| Applications | BS50-4AS, BS504AS, BS60-4AS, BS604AS, BS70-4AS, BS704AS, GXR120RT |
| Machine Type | Engines |
| Fits Brands | Honda |
