Description
Overview:

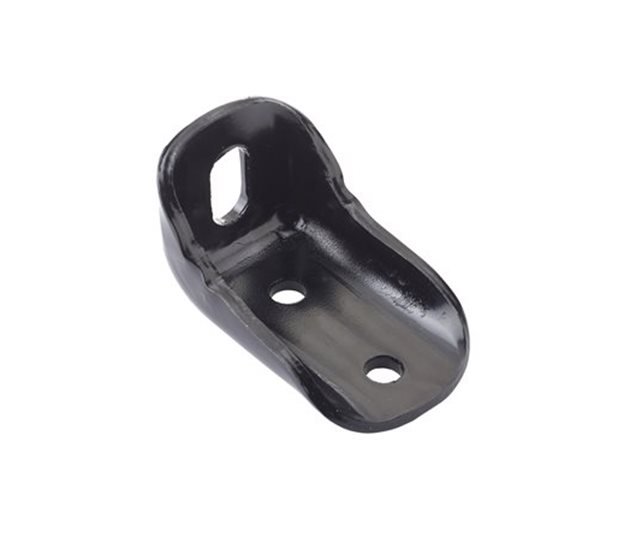

Pressed steel body mounting bracket (MPN 800 1326) for securing bodywork to chassis runners on commercial vehicles. Manufactured from mild steel and formed as a robust pressed component, it provides a compact mounting solution for bodies and ancillary fittings where a 100 mm (3.94 in) chassis runner is used. The bracket is finished in an E‐coat black coating to help resist corrosion during service. Overall dimensions are 94 mm long x 61 mm wide x 60 mm high (3.70 in x 2.40 in x 2.36 in), with a material thickness of 5.5 mm (0.22 in). Fixing options include two round holes of 11 mm (0.43 in) diameter and one slotted hole sized 14 mm x 28 mm (0.55 in x 1.10 in) to allow alignment during installation. Suitable for general body building on trucks and trailers where a universal, compact bracket is required.
Key Features:
- Pressed mild steel construction for strength and durability
- E‐coat black finish for corrosion resistance
- Suits chassis with 100 mm (3.94 in) runners
- Overall size: 94 x 61 x 60 mm (3.70 x 2.40 x 2.36 in)
- Material thickness: 5.5 mm (0.22 in)
- Two round fixing holes: Ø11 mm (0.43 in)
- One slotted hole: 14 x 28 mm (0.55 x 1.10 in) for positional adjustment
- Universal range component for truck and trailer body mounting
- Compact form suitable for constrained mounting locations
Typical Applications:
Used on trucks and trailers to mount bodywork or auxiliary equipment to chassis runners. Common in general body building where a universal bracket provides both fixed and slotted fixings to suit varying hole centres and allow final alignment.
Also known as:
Chassis body bracket; Body-to-chassis mount; Pedestal mounting bracket; Chassis runner bracket; Body bearer bracket
Product Specifications
| L&S Part No. | 800 1326 |
|---|---|
| Unit of Sale | 1 |
