Description
Overview:

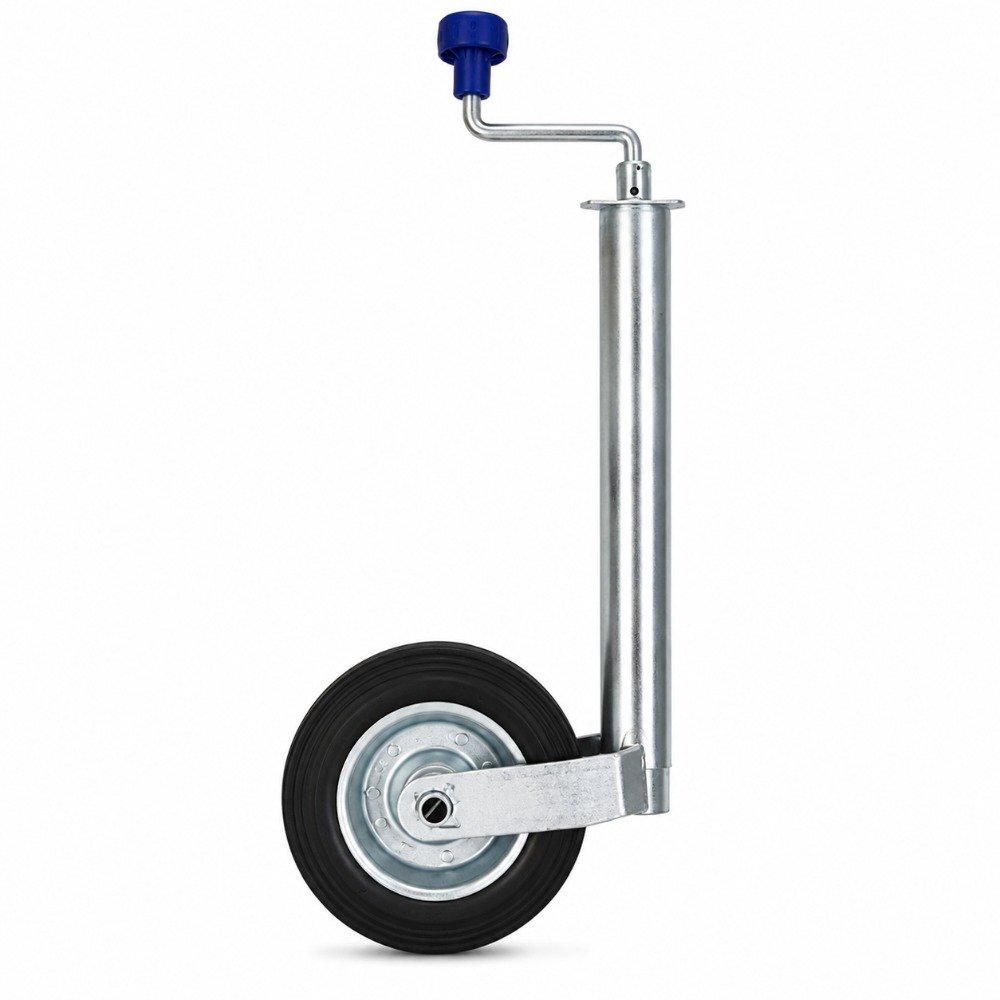

This 48mm telescopic jockey wheel, 100kg standard duty from Maypole (MPN TR436) is a drawbar support and manoeuvring wheel for light trailers and towing setups using a 48mm clamp. The 48mm tube (about 1.89") is a common size on small to medium utility and general-purpose trailers. The telescopic design allows height adjustment to raise and lower the coupling onto the towball and to stabilise the trailer when unhitched. The rated load is 100kg (approximately 220lb). Supplied as a jockey wheel assembly only; the clamp is not included. For mounting, use the compatible Maypole 48mm standard duty split clamp, part MP424. This unit is intended for standard duty applications where a 48mm jockey is specified and a 100kg rating is adequate.
Key Features:
- 48mm diameter jockey tube (approximately 1.89")
- Telescopic jockey assembly for height adjustment
- Standard duty specification
- 100kg load rating (approximately 220lb)
- Suits 48mm standard duty split clamp (Maypole MP424) - clamp not included
- Brand: Maypole
Typical Applications:
Used on light-duty single-axle trailers and small general-purpose or utility trailers where a 48mm jockey wheel is specified. Suitable for aiding coupling/uncoupling and stabilising the drawbar when parked. Common in domestic and light commercial towing, small plant transport where loads are modest, and fleet trailers built around 48mm clamp fittings. Mount with the Maypole 48mm standard duty split clamp MP424 (not supplied).
Also known as:
Jockey wheel; Nose wheel; Trailer jack; Drawbar jack; Trailer landing wheel; Maypole part number MP436
Product Specifications
| L&S Part No. | TR436 |
|---|---|

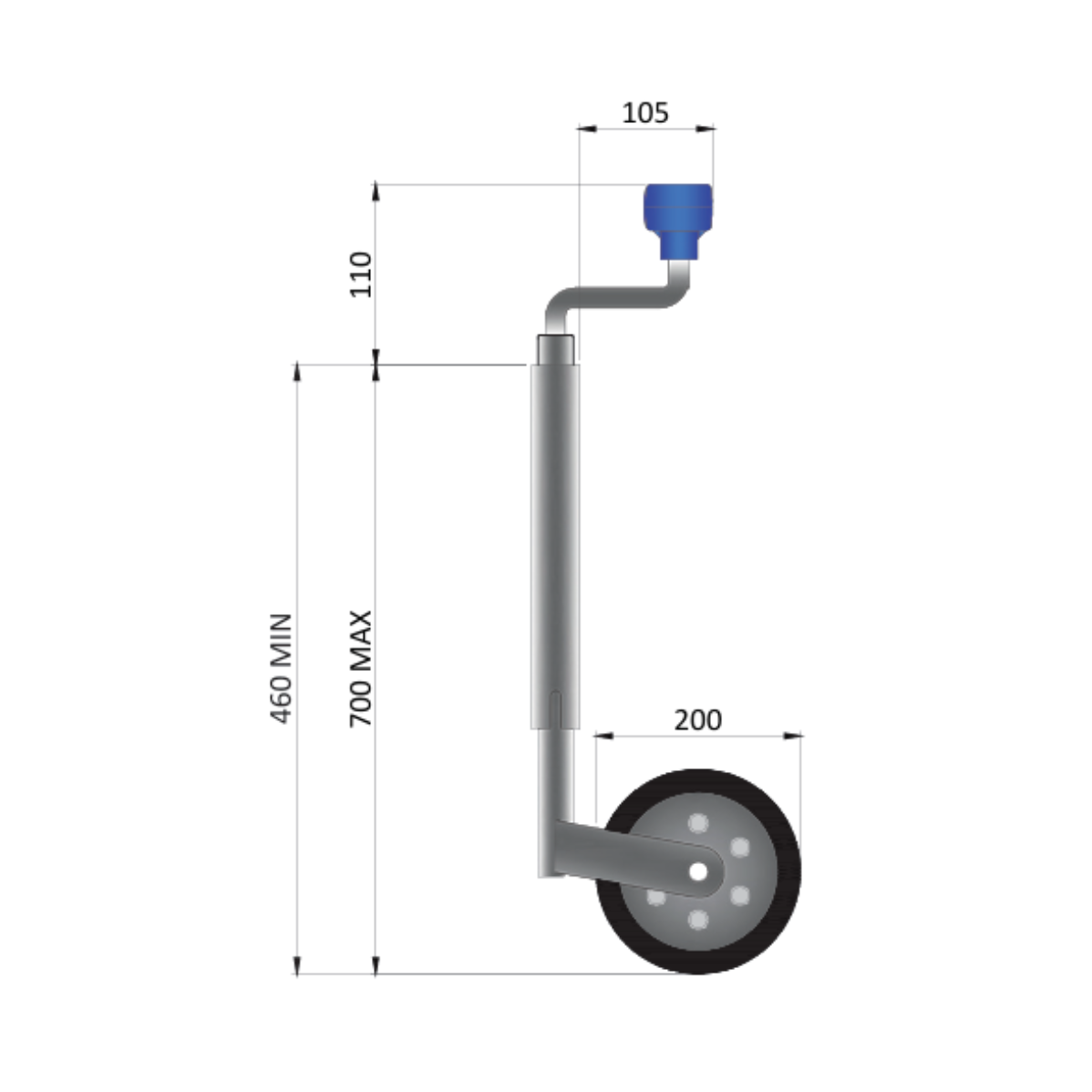

| Key Features | - 48mm outer tube fits standard 48mm clamps - 240mm height adjustment for levelling and hitching - Solid rubber tyre, 200 x 48mm, requires no inflation - Supports up to 100kg nose weight - Zinc-plated finish resists corrosion in wet conditions |
