Description
Overview:

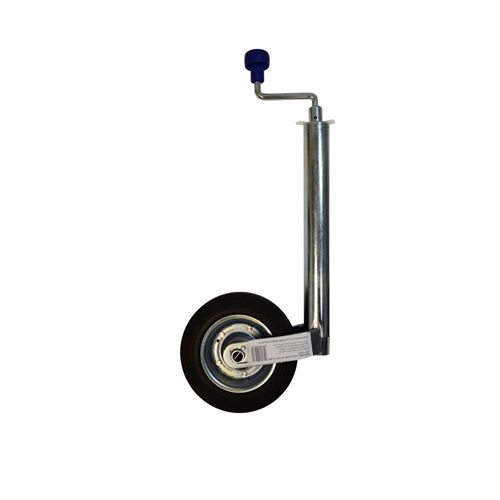

The Maypole 48mm Standard Duty Telescopic Jockey Wheel (100kg) is a reliable height-adjustment and support wheel for light trailers. It uses a solid rubber tyre on a durable steel rim to provide smooth rolling and long service life with minimal upkeep. The 48mm outer tube fits standard 48mm clamps and the clear zinc-plated finish helps resist rust in everyday outdoor use. Its telescopic design gives about 240mm (approx. 9.45 inches) of height adjustment, making it easier to level the trailer, hitch or unhitch safely, and manoeuvre when unladen. Rated to support up to 100kg (approx. 220 lb) nose weight, it is suitable for utility, plant, and leisure trailers used around worksites, farms, and driveways. Supplied as Maypole MP436, and compatible with clamp 201 434.
Key Features:
- 48mm outer tube suits standard 48mm jockey clamps for straightforward fitting

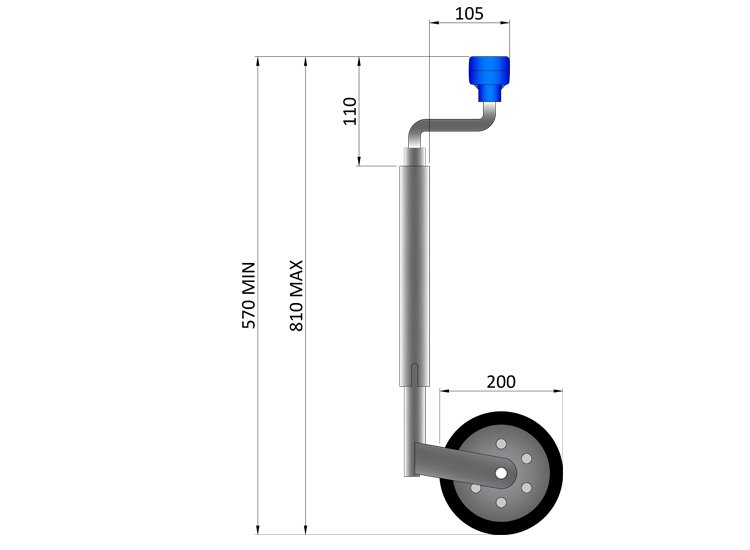

- Height extension range: 240mm (approx. 9.45 inches) for accurate levelling and hitching
- Handle extension: 103mm (approx. 4.06 inches) for improved leverage and control
- Wheel/tyre size: 200 x 48mm (approx. 7.87 x 1.89 inches) with a solid rubber tyre for zero inflation and low maintenance
- Durable steel rim for strength under everyday site and yard use
- Clear zinc-plated finish for enhanced corrosion resistance in wet or muddy conditions
- Static nose load rating up to 100kg (approx. 220 lb) for standard duty trailers
- Telescopic design provides smooth, precise height adjustment
- Compatible with Maypole clamp 201 434 and other 48mm clamps
- Maypole quality with identifiable MPN: MP436
Typical Applications:
Ideal for positioning and stabilising small plant, utility, domestic, and leisure trailers. Helps with hitching and unhitching, levelling for loading, and manoeuvring trailers carrying construction or garden machinery around yards, depots, farms, and driveways when not coupled to a towing vehicle.
Also known as:
Commonly referred to as a nose wheel, trailer jack, jockey jack, drawbar wheel, landing wheel, or caravan jockey wheel. You may also see it described as a 48mm jockey, 200 x 48 solid wheel assembly, 100kg jockey wheel, or by its code MP436.
Product Specifications
| L&S Part No. | TR436 |
|---|---|
| Manufacturer | Maypole |
| OEM No. | MP436 |
| Unit of Sale | 1 |
| Machine Type | Trailers |
