Description
Overview:

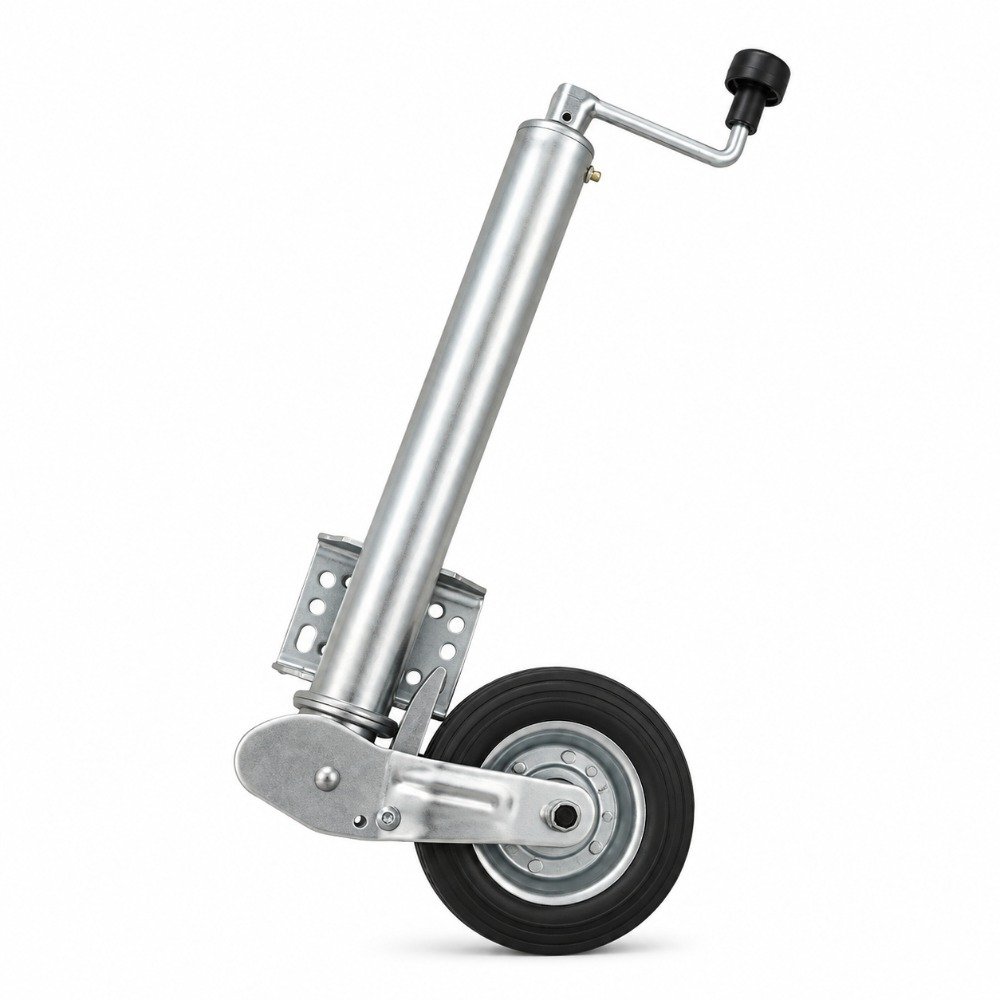

The 60mm Auto-Fold Jockey Wheel, 300kg, Solid Wheel (MPN 207 977) is a heavy-duty jockey wheel assembly for trailers and plant transport where a robust 60mm (approx. 2.36 in) tube format is required. It features an auto-fold mechanism that swings the wheel clear automatically as the trailer is towed away, reducing the risk of the wheel contacting the ground after hitching. The assembly carries a 300kg (approx. 661 lb) rating and is supplied with a solid wheel. A grease nipple is fitted at the top bearing to support regular lubrication and service life. The wheel used on this model is a 200mm (approx. 7.87 in) steel type, and a direct replacement is available as Maypole MP228. Suitable for use on trailers and transport equipment built to accept 60mm jockey wheel assemblies.
Key Features:
- 60mm tube diameter (approx. 2.36 in)
- Auto-fold mechanism swings the wheel clear automatically on tow-away
- 300kg load rating (approx. 661 lb)
- Solid 200mm diameter steel wheel (approx. 7.87 in)
- Grease nipple on the top bearing for easy maintenance
- Replacement wheel: Maypole MP228 200mm steel wheel
- Designed for installations that take a 60mm jockey wheel assembly
Typical Applications:
Used on heavy trailers and towing setups that require a 60mm jockey wheel format, including plant and equipment trailers, car transporters, and twin-axle goods trailers. The auto-fold action is suited to frequent hitching operations where the wheel needs to be cleared rapidly and reliably during tow-away. The 300kg rating and solid steel wheel make it appropriate for demanding site and transport duties within the plant hire and construction sectors.
Also known as:
Nose wheel, trailer jack, drawbar jack, landing leg, Maypole part number MP977
Product Specifications
| L&S Part No. | 207 977 |
|---|---|
| Part Type | Non Genuine Part |
| Fits Brands | Toro |
| Key Features | - 60 mm diameter steel tube for stable support - Rated to 300 kg static nose weight - 200 mm x 40 mm rubber wheel for controlled rolling - Auto-fold mechanism for quick hitching - 490 mm height extension range |
| Fits Models | VB9 |
