Description
Overview:

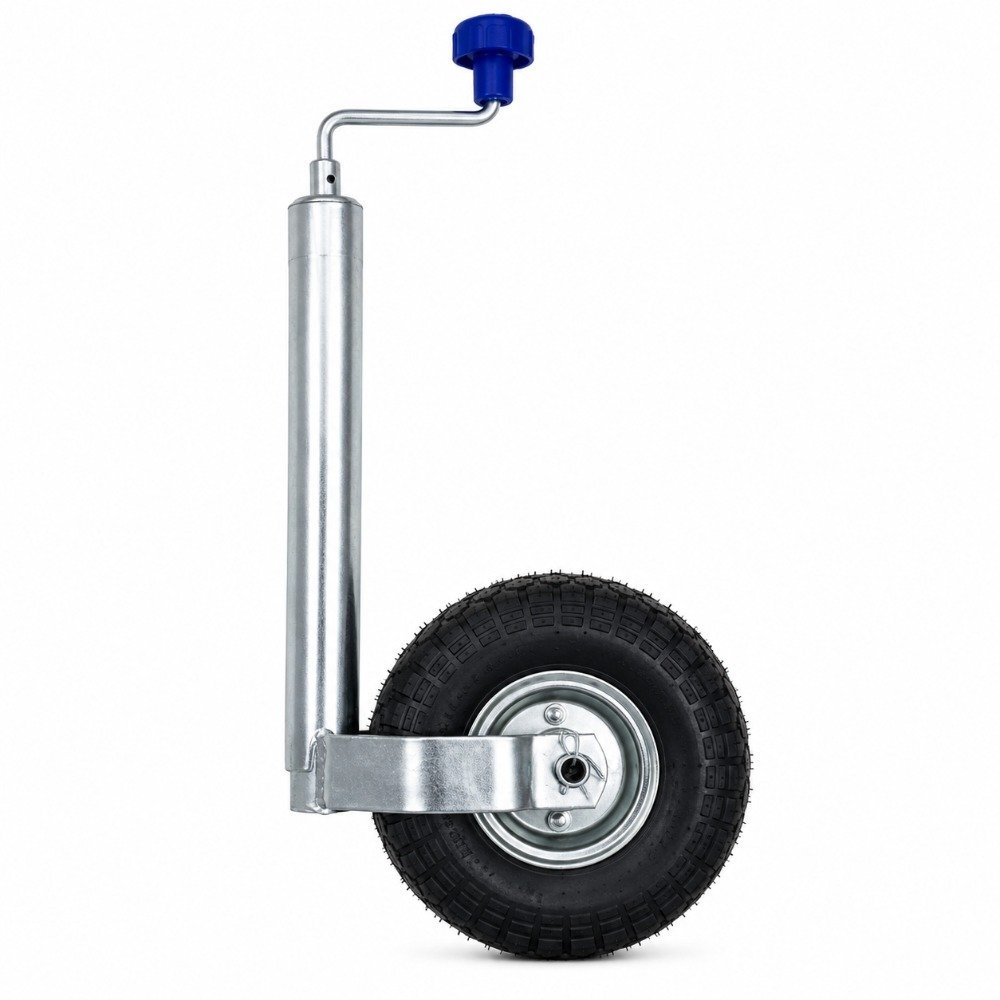

48mm Jockey Wheel (MPN 763 816) with 180kg rating, pneumatic wheel and 270mm lift range for use on trailers and towing set-ups that specify a 48mm tube. The 48mm outside diameter drawtube (about 1 7/8") suits common 48mm clamps and brackets. The pneumatic tyre is suited to uneven or soft ground where an air-filled wheel helps reduce sinkage and improves manoeuvrability when positioning a trailer by hand. Lift travel is 270mm (approximately 10.6"), providing height adjustment for hitching and levelling. Nose weight rating is 180kg (about 397lb). Supplied without a clamp; use a suitable 48mm clamp such as the Maypole MP8121 medium duty clamp where required. Intended for general trailer use in transport and towing applications where a 48mm jockey wheel format is specified.
Key Features:
- 48mm diameter jockey wheel tube (approximately 1 7/8")
- Nose weight rating: 180kg (approximately 397lb)
- Pneumatic wheel for improved rolling on uneven or soft ground

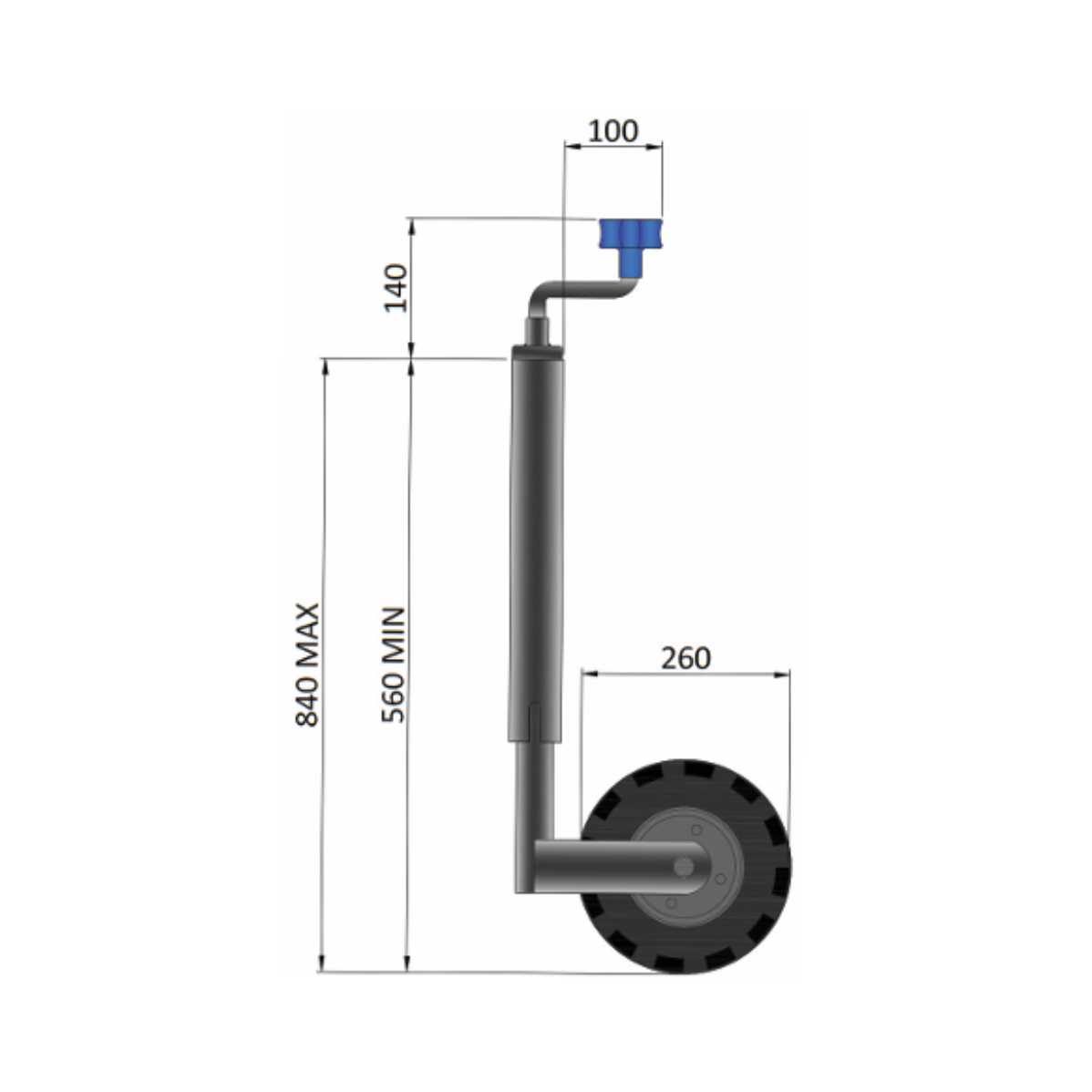

- Lift range: 270mm (approximately 10.6")
- Suits 48mm clamps; compatible clamp: Maypole MP8121 (48mm medium duty)
- Supplied without clamp
Typical Applications:
For use on general duty and plant trailers, builders' and utility trailers, and similar towing set-ups that require a 48mm jockey wheel and a nose weight capacity up to 180kg. The pneumatic tyre helps when moving trailers across gravel yards, grass, and softer ground. Fit with a 48mm clamp such as the Maypole MP8121 where a clamp is not already installed or requires replacement.
Also known as:
Jockey wheel; nose wheel; trailer jack; drawbar jack; landing leg; Maypole part number MP4375
Product Specifications
| L&S Part No. | 763 816 |
|---|---|
| Part Type | Genuine Part |
