Description
Overview:

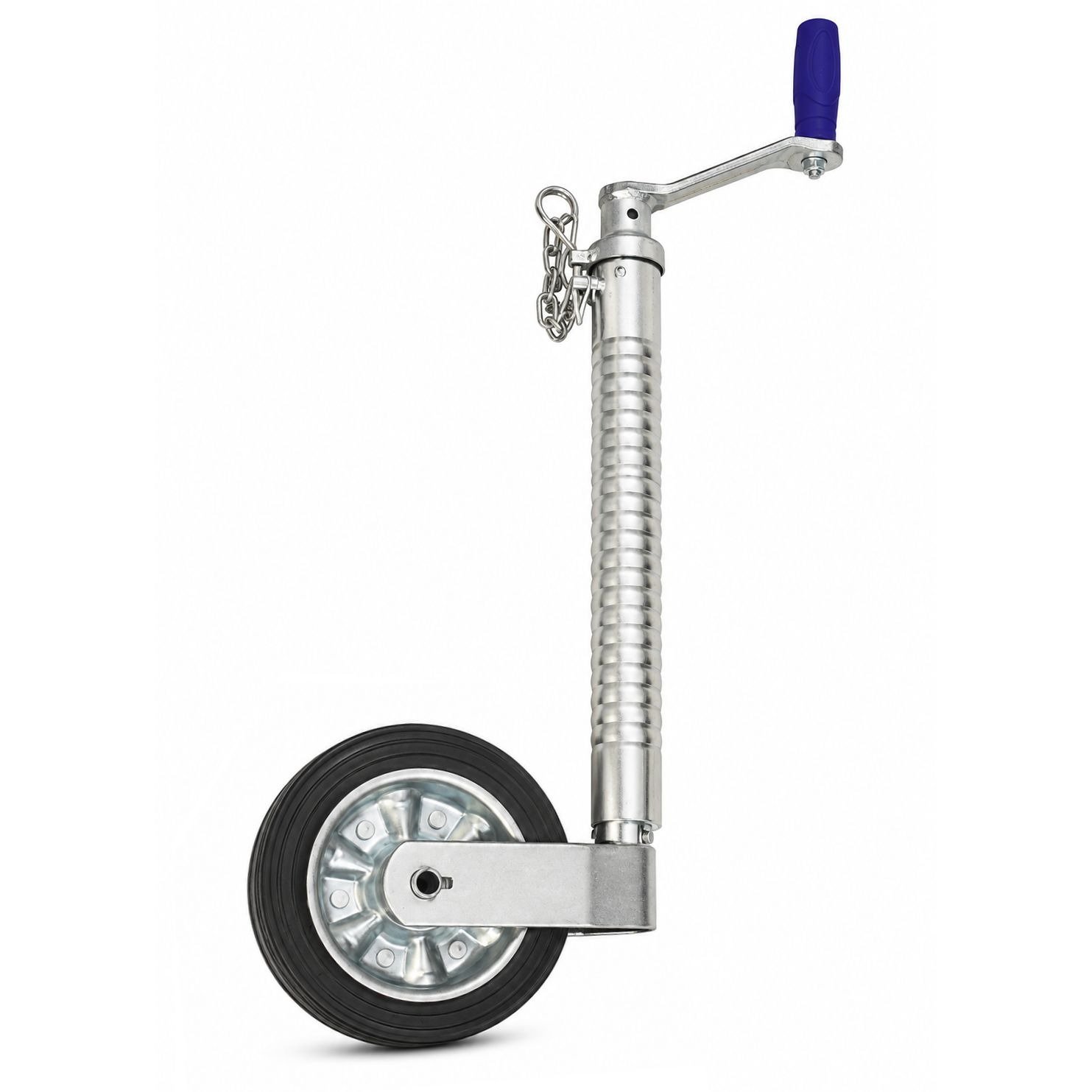

The Heavy Duty Serrated Jockey Wheel with a 48mm tube and 750kg static load capacity is engineered for robust use in professional trailer applications. Designed with a serrated outer tube, it ensures compatibility with standard 48mm serrated clamps, facilitating controlled height adjustments during coupling and parking. Constructed from steel with a JS500 protective finish, this jockey wheel offers superior corrosion resistance. It features a durable rubber tyre mounted on a rivetted steel rim and incorporates heavy-duty roller bearings for smooth winding. An integrated grease nipple allows for easy lubrication, and an R-clip and chain prevent the handle from rotating during transit.
Key Features:

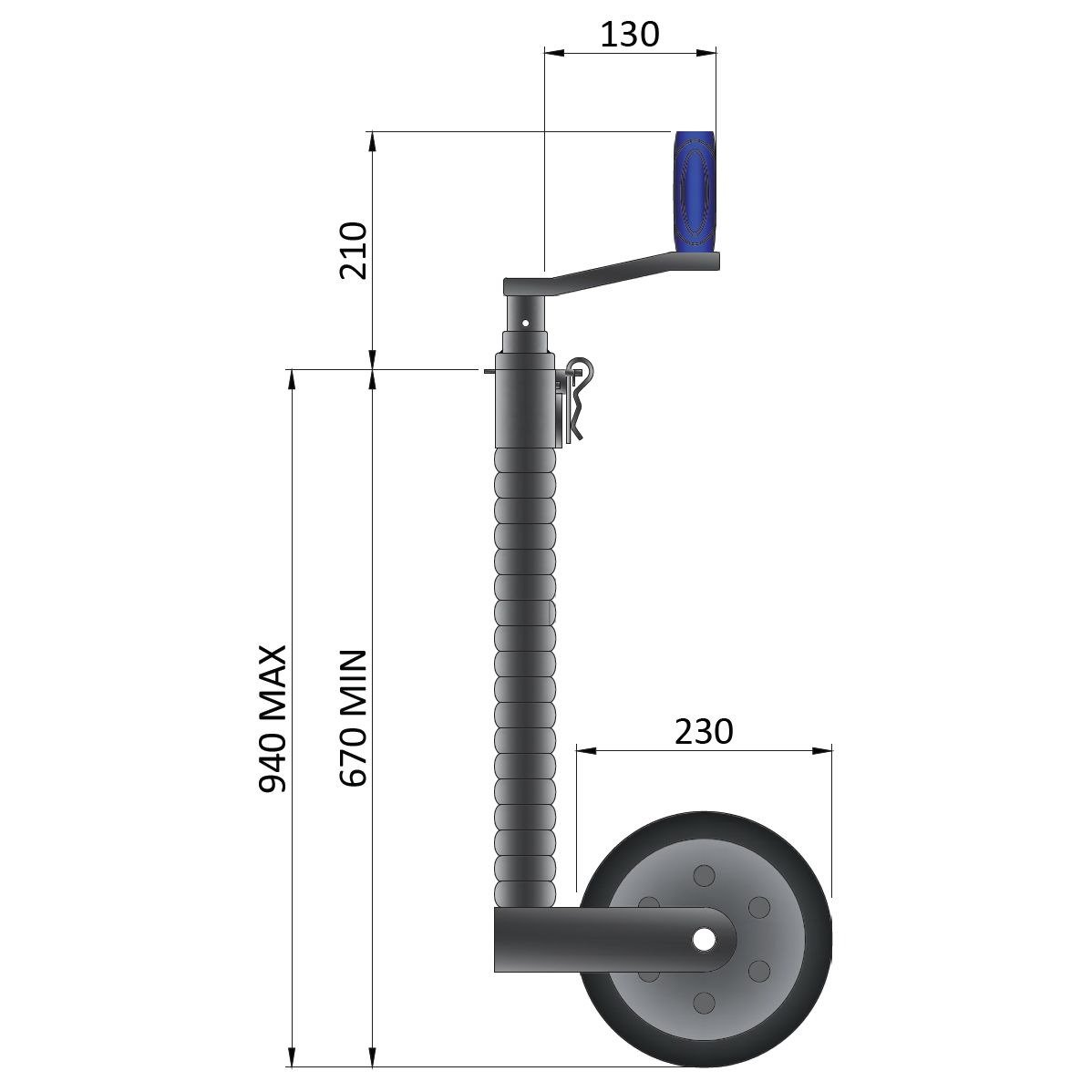

- Outer tube diameter: 48mm
- Height extension range: 270mm
- Handle extension: 130mm
- Tyre size: 230 x 55mm
- Max. static load capacity: 750kg
- Rugged construction for reliability
- Ergonomic blue handle grip
- JS500 finish for enhanced corrosion resistance
- Equipped with heavy-duty roller bearings
- Includes an R-clip and chain for handle security
Typical Applications:
Suitable for use with plant, commercial, and general duty trailers in hire, transport, and construction settings. Ideal for environments requiring reliable and robust jockey wheels to support heavy loads and frequent operation.
Also known as:
Trailer support wheel, serrated jockey wheel, heavy-duty jockey wheel, trailer jockey assembly.
Product Specifications
| L&S Part No. | 764 034 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - 48 mm serrated tube suits standard clamps - JS500 finish for corrosion resistance - Maximum static load capacity: 750 kg - Tyre size: 230 x 55 mm - Features heavy duty roller bearings |
