Description
Overview:

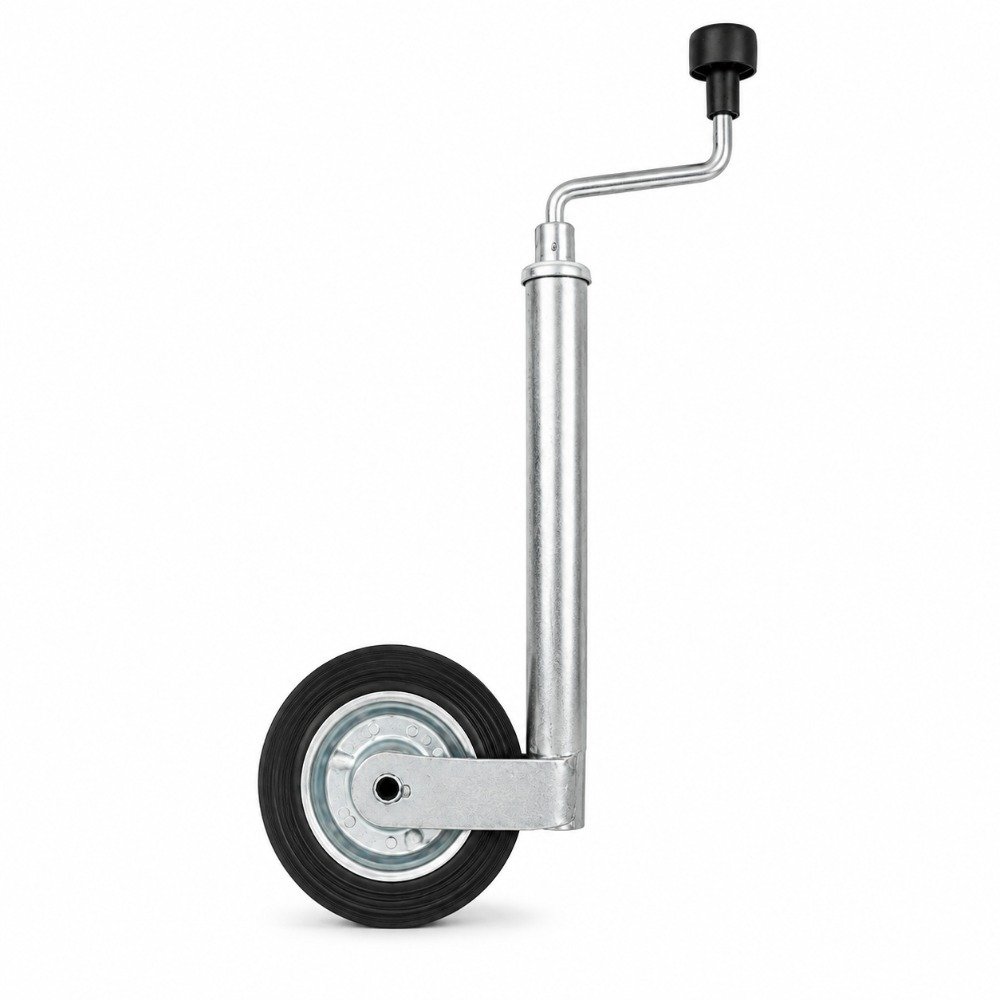

The 42mm Telescopic Jockey Wheel, 150kg, Solid Wheel (MPN 761 500) is a medium-duty jockey wheel assembly for general trailer support and manoeuvring. It uses a 42mm (approx. 1.65") diameter telescopic tube and a solid wheel for durability on hard standing and yard surfaces. This model incorporates Maypole's Rotalock anti-unwind feature to help prevent the tube from winding loose during transport. It is suitable for use on medium-duty goods and utility trailers where a 150kg (approx. 330lb) static nose load rating is appropriate. Supplied as the jockey wheel assembly only; the clamp is not included. When a clamp is required, use the compatible Maypole clamp MP224. Also known as Maypole MP2275, this unit is intended for straightforward installation and service in fleet and workshop environments where dependable, repeatable height adjustment is needed.
Key Features:
- 42mm diameter telescopic tube (approx. 1.65") for height adjustment
- Medium-duty classification suitable for typical utility and goods trailers
- 150kg rated static nose load (approx. 330lb)
- Solid wheel for robust, low-maintenance operation on firm ground
- Rotalock anti-unwind mechanism helps prevent loosening in transit
- Supplied without clamp; use compatible clamp Maypole MP224
- Maypole specification reference MP2275 for cross-checking and spares
Typical Applications:
Used on medium-duty single-axle and small tandem-axle goods trailers, general-purpose and yard trailers, and light plant transport where a 42mm jockey assembly is specified. Suitable for fleets and hire operations requiring a 150kg-rated nose support. Fit with the matching clamp Maypole MP224 when a new or replacement clamp is needed.
Also known as:
Jockey wheel; nose wheel; trailer jack; prop stand; Maypole part number MP2275
Product Specifications
| L&S Part No. | 761 500 |
|---|---|
| Key Features | - 42mm outer tube supports 150kg nose weight - 240mm telescopic height travel for easy levelling - 200 x 48mm solid rubber tyre, puncture-proof - Ball-race handle bearing for smooth winding - Zinc-plated steel finish resists corrosion |
