Description
Overview:

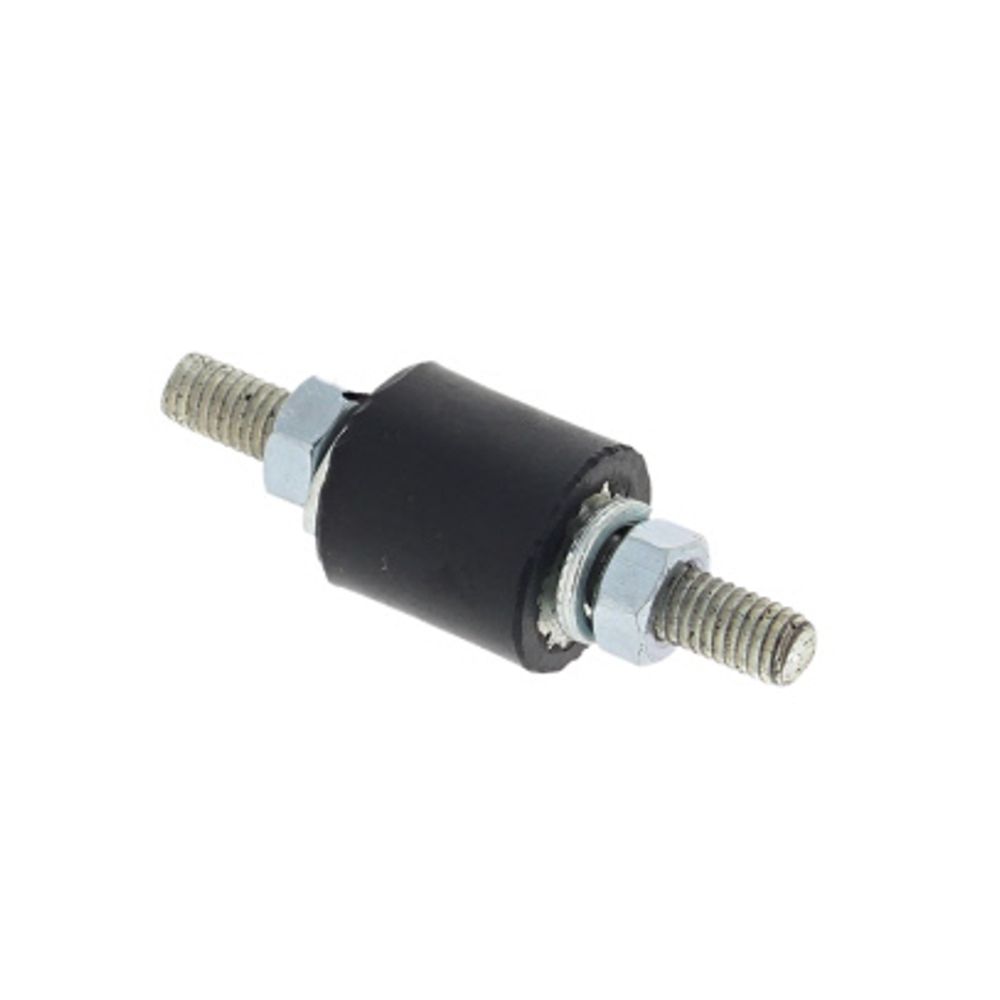

The Rubber Vibration Mount Male/Male 15x15mm M5 Thread (MPN: VM11H) is a compact, general-purpose anti-vibration bobbin for isolating shock and vibration between components and frames. It combines a resilient rubber element with two metal M5 male threaded studs for secure fixing. At 15 mm diameter x 15 mm height with 10 mm studs on each side, it is suited to small and medium assemblies where space is limited. Use it to protect bearings, brackets, enclosures, and sensitive parts in tools and machines such as small pumps, compressors, fans, generators, pressure washers, and garden machinery. By reducing transmitted vibration, it helps cut noise, minimise wear, and improve the service life of your equipment.
Key Features:
- 15 mm diameter x 15 mm height rubber bobbin with dual M5 male threads for versatile mounting
- 10 mm stud length each side for straightforward installation through brackets and panels
- Durable rubber element absorbs vibration and shock to help reduce noise and wear
- Helps protect housings, fasteners, and electronics from vibration-induced damage
- Compact form factor suits tight spaces and light-duty isolation tasks
- Works in compression, shear, or a combination depending on the mounting orientation
- Metal threaded studs provide a secure, repeatable fastening with standard M5 nuts or tapped holes
- Consistent performance for industrial, mechanical, HVAC, and garden/grounds machinery
- Assists in extending component life and improving operator comfort by limiting vibration transfer
- Easy to replace like-for-like in existing M5 bobbin mounts
Typical Applications:
Mounting small pumps, fans, blowers, and compressors; isolating control boxes, instrument panels, guards, and light housings; supporting small engine accessories on mowers, generators, and pressure washers; fixing fuel tanks and reservoirs; decoupling panels and frames to reduce resonance; general-purpose vibration isolation in workshop fixtures and plant equipment.
Also known as:
AV mount, bobbin mount, rubber bobbin, stud mount damper, shock mount, machine isolator, M5 anti-vibration bobbin, male/male bobbin, rubber buffer, vibration isolating stud mount, rubber bumper mount.
Product Specifications
| L&S Part No. | VM11H |
|---|---|
| Unit of Sale | 1 |
| Size | 15x15mm M5 Thread |
| Key Features | - 15 mm diameter x 15 mm height rubber bobbin - Dual M5 male threads for versatile mounting - 10 mm stud length each side for easy installation - Durable rubber absorbs vibration and shock - Suitable for small pumps, fans, and compressors |
