Description
Overview:

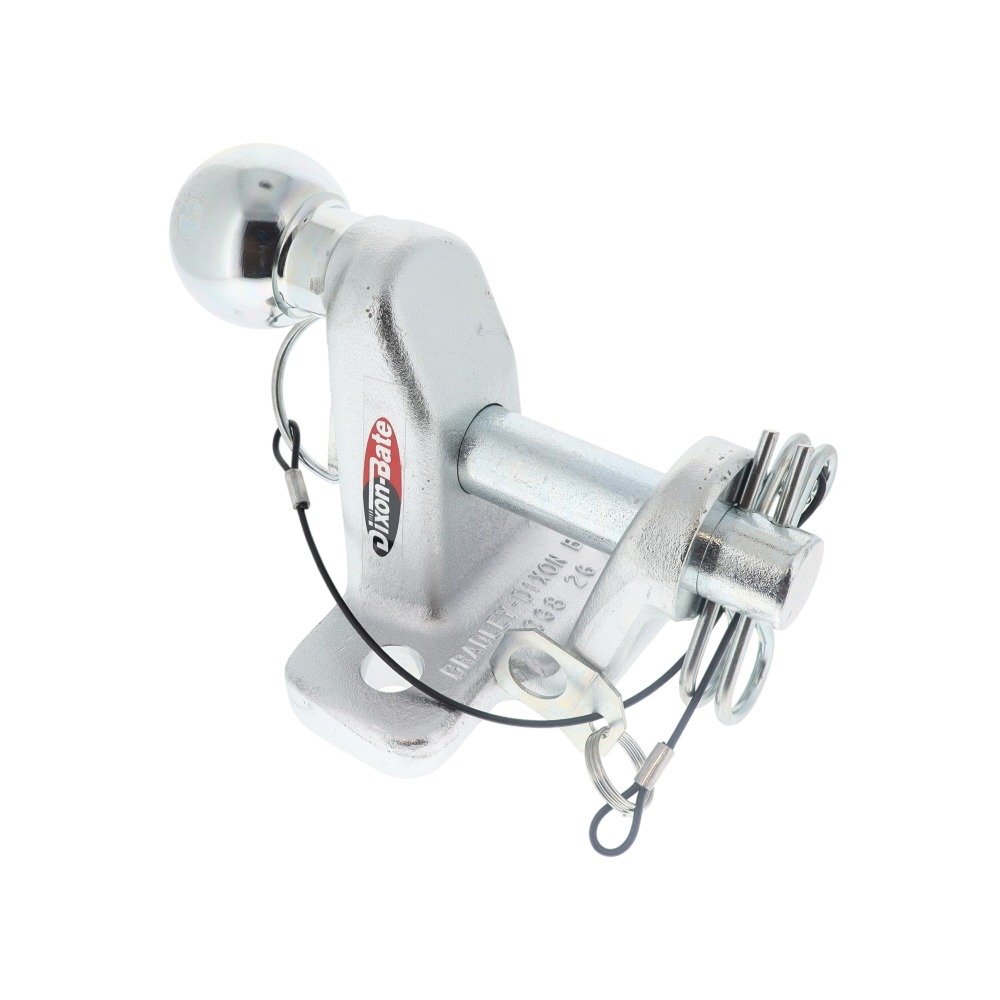

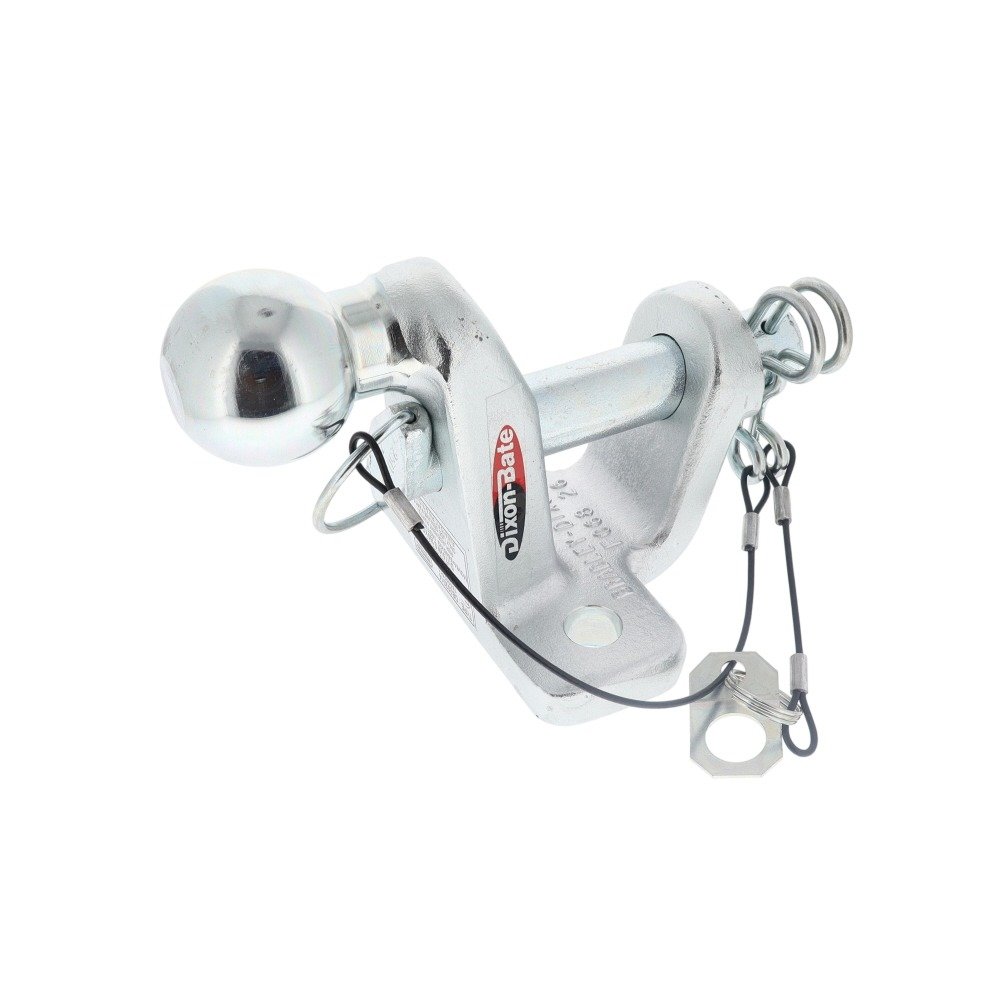

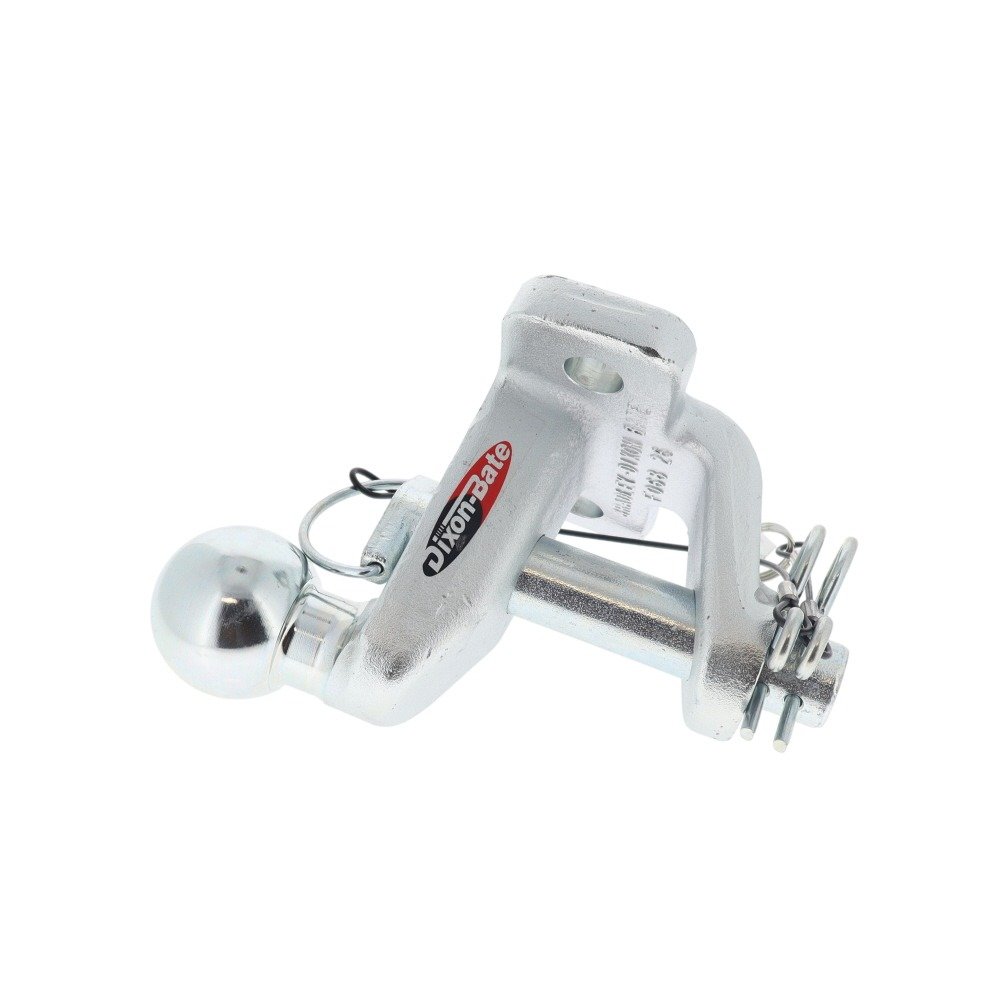

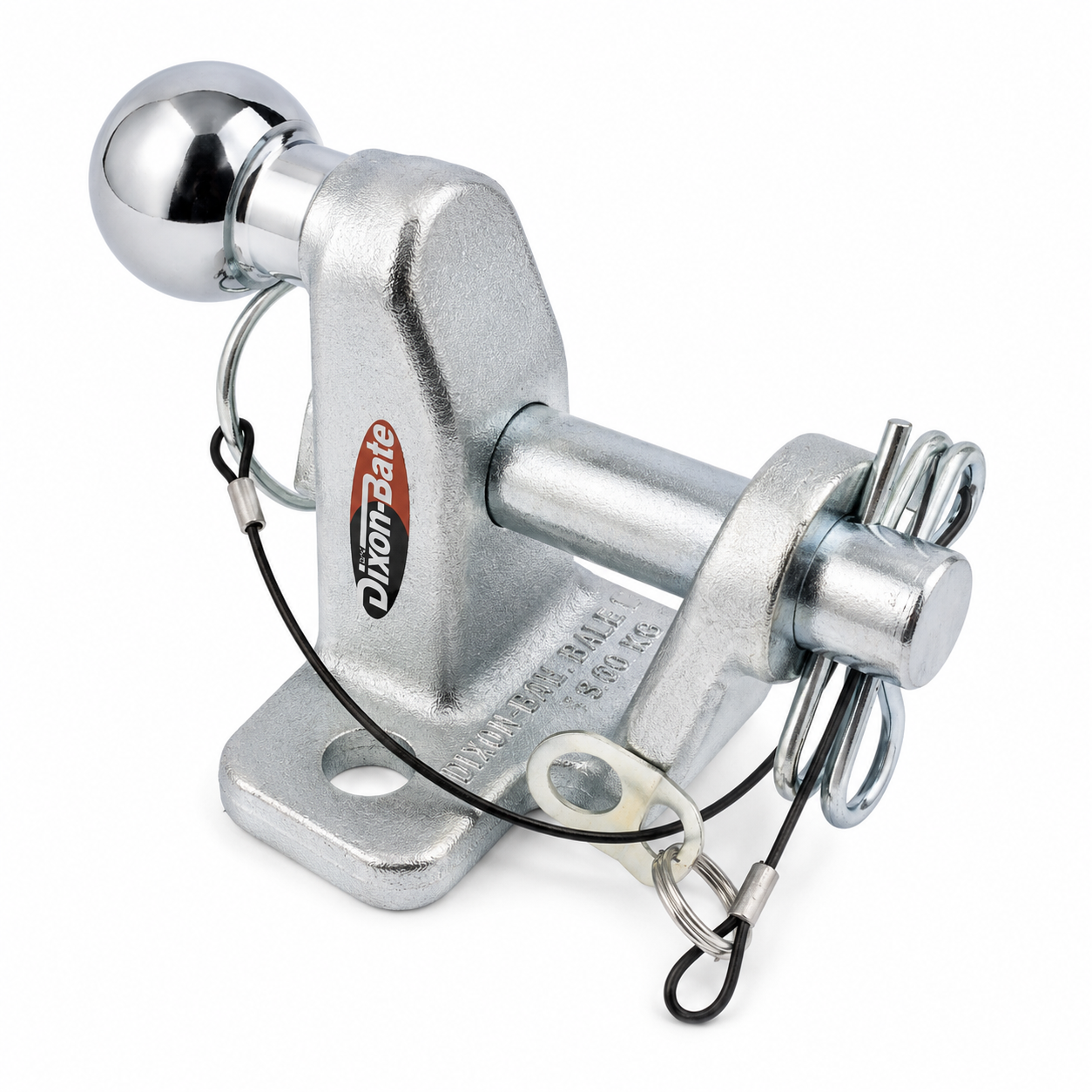

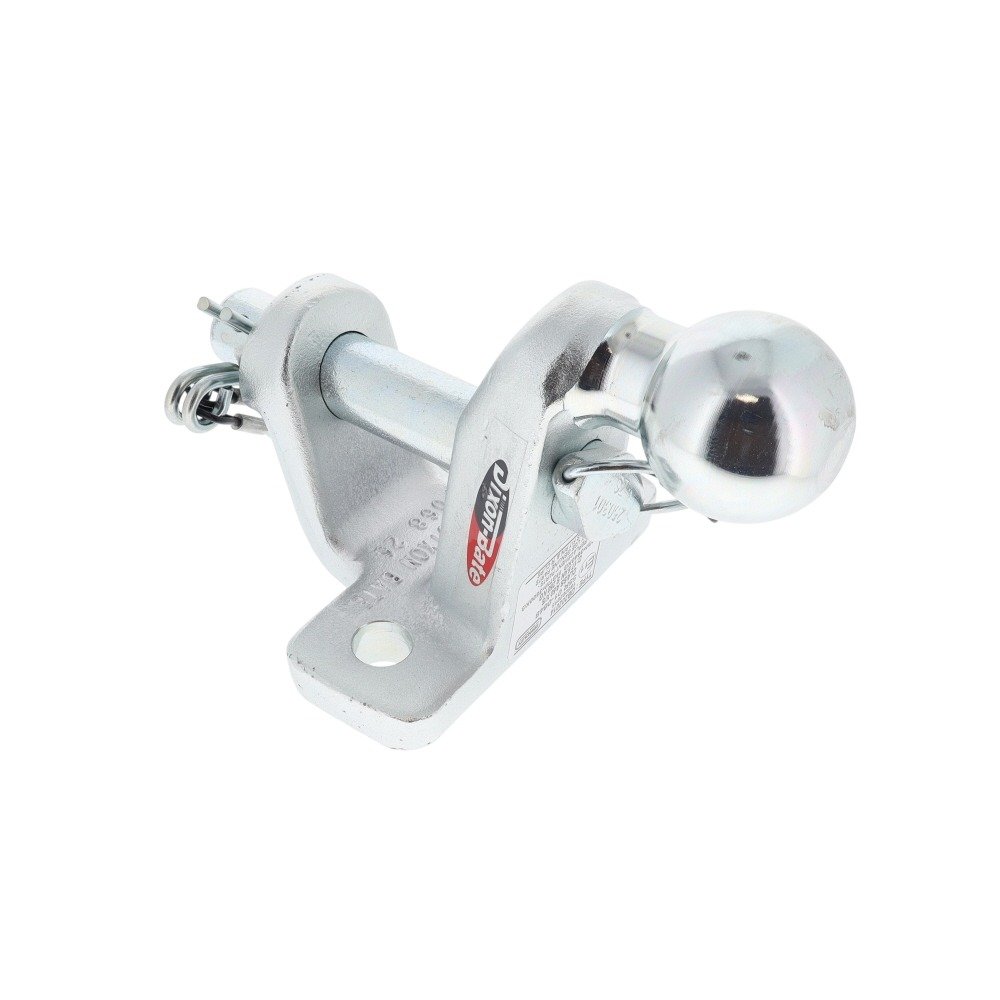

Bradley Dixon-Bate combination ball and pin coupling, carrying a 50mm tow ball and a 25mm pin jaw on one two-bolt mounting, so a vehicle can tow either a ball-hitched trailer or a towing eye trailer without changing hardware. Forged steel with a zinc and clear passivate finish. Bolts to the vehicle towing plate using two M16 bolts. Classified A50-X/S and type approved to UN/ECE Regulation 55. Supplied with the pin, R clips and retaining lanyard. Also listed as DB202014 and AL-KO Kober 185002015.
Specification:
- D-value: 17.5kN
- S-value (vertical load): 250kg
- Ball diameter: 50mm
- Pin diameter: 25mm
- Maximum trailer weight (MGVM): 3500kg
- Fixing: 2 bolt, M16
- Coupling class: A50-X/S
- Finish: zinc and clear passivate
- Approval number: E11 55R 01-0648
- Weight: 5kg
- Manufacturer part numbers: DB202014 / 185002015
- Bolts not included
Fitting:

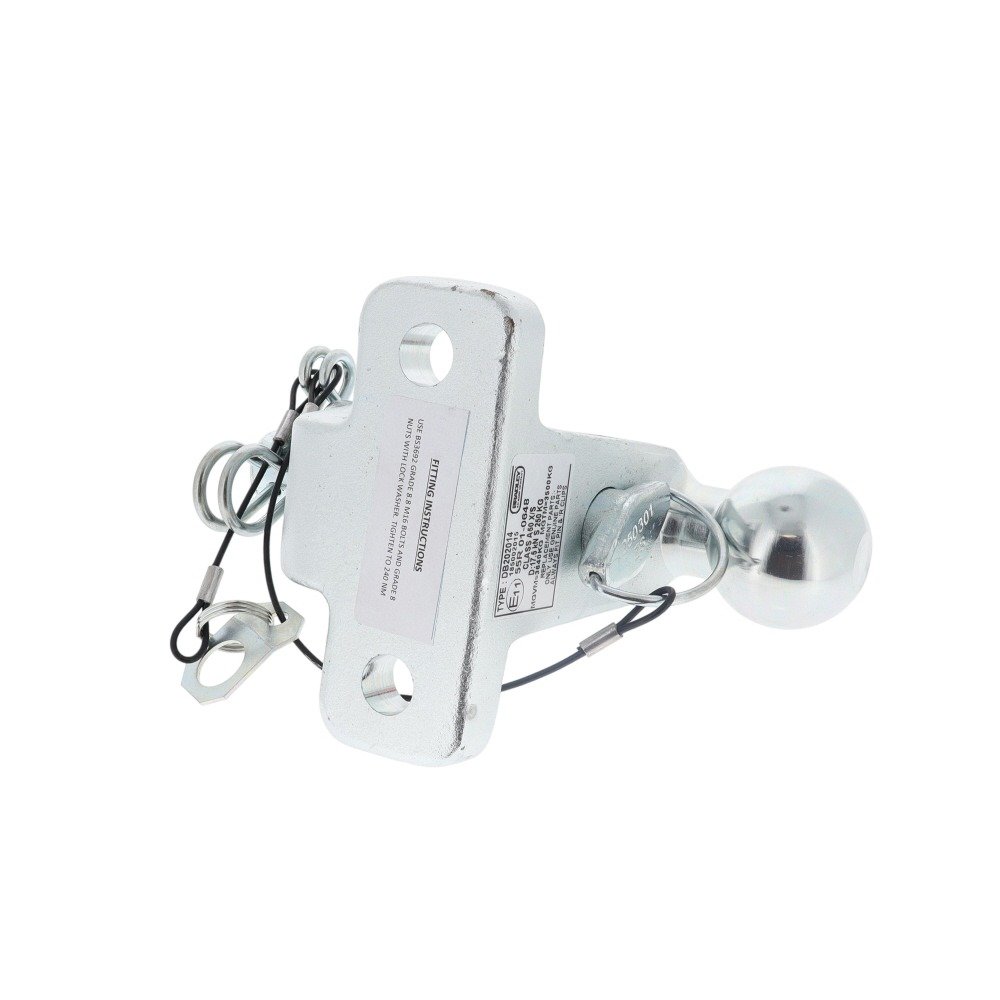

Use BS3692 grade 8.8 M16 bolts with grade 8 nuts and lock washers. Tighten to 240Nm and re-check after first use and at regular intervals thereafter. Always fit the pin and R clips before towing, and use genuine replacement parts only.
Towing Capacity:
The manufacturer's rated maximum is 3500kg and applies regardless of the towing vehicle.
Maximum braked trailer weight derived from the D-value:
- Behind a 3,500kg vehicle: 3,630kg, so the 3500kg rating governs
- Behind a 7,500kg vehicle: 2,340kg
These are coupling limits only. The lowest of the coupling limit, the towing vehicle's plated towing limit, the trailer's gross weight and the driver's licence entitlement applies. Centre-axle trailers are rated on Dc and V-value rather than D.
Typical Applications:
Mixed trailer fleets where both ball couplings and towing eyes are in service, typically on 4x4s, pick-ups and light commercials moving plant and utility trailers between sites.
Product Specifications
| L&S Part No. | 201658 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Al-Ko |
| OEM No. | 185002015 |
| Unit of Sale | 1 |
| Machine Type | Tow Couplings |
| Key Features | - D-value: 17.5kN - S-value: 250kg - Ball diameter: 50mm - Pin diameter: 25mm - Maximum trailer weight: 3500kg |
