Description
Overview:

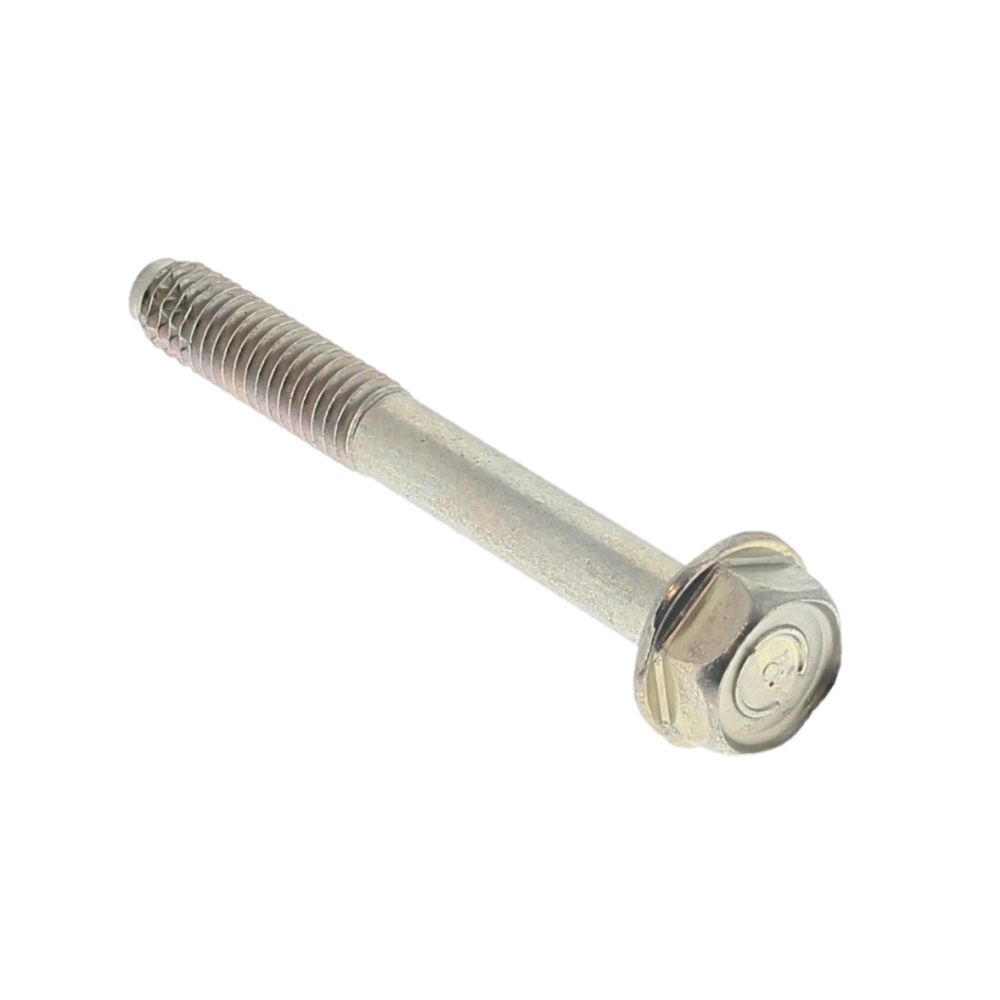

The Bolt Flange 6x47 is a genuine Honda fixing for securing components on small petrol engines, including the Honda GXV160H2 and GXV160UH2. Made from durable steel with a corrosion-resistant finish, it features an integrated flange to spread load and resist loosening under vibration. The bolt measures 6 mm in diameter by 47 mm in length (0.24 inches x 1.85 inches), suitable where an M6 flanged fastener is specified in Honda parts diagrams. Used across lawn and garden machinery and compact generators, it helps maintain alignment and tightness of covers, brackets and housings for reliable operation. OEM No. 90014-Z1V-000 ensures an exact match for the original hardware and straightforward replacement during servicing or repairs.
Key Features:
- Genuine Honda part for assured compatibility and fitment
- OEM reference 90014-Z1V-000 for precise replacement
- Size: M6 x 47 mm (0.24 in x 1.85 in) for specified applications
- Flanged hex head provides even clamping and protects mating surfaces
- Steel construction with corrosion-resistant finish for long service life
- Resists loosening under engine vibration and thermal cycling
- Helps restore correct torque and alignment when replacing worn bolts
- Suitable for routine maintenance, repairs, and full overhauls
- Easy to install with standard hand tools, reducing downtime
- Supports reliable performance of Honda engines and driven equipment
Typical Applications:
Used to fasten engine shrouds, recoil starter housings, brackets, guards and ancillary components on Honda-powered equipment where an M6 flange bolt is specified. Common on professional and domestic pedestrian mowers and compact generators. Ideal for replacing corroded or missing hardware to maintain safe, secure assemblies and consistent machine performance.
Also known as:
Flange bolt, hex flange bolt, M6 x 47 bolt, engine mounting bolt, Honda flange screw, flanged hex screw, fixing bolt for covers and brackets.
Fits Models:
EU3000I, EU3000IK1, GXV160H2, GXV160UH2, HRC216K3, HRD536K4 QXEH, HRH536 QXE, HRH536K3 HXE, HRH536K3 QXE, HRH536K4 HXEH, HRH536K4 QXEH
Alternate Part Numbers:
90014-Z1V-000
Product Specifications
| L&S Part No. | 90014 Z1V 000 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Honda |
| OEM No. | 90014 Z1V 000 |
| Unit of Sale | 1 |
| Machine Type | Engines, Mowers, Generators |
| Fits Brands | Honda |
| Key Features | - Genuine Honda part ensures compatibility with specified models - OEM reference 90014-Z1V-000 for precise replacement - M6 x 47 mm size fits specified applications - Flanged hex head provides even clamping - Steel with corrosion-resistant finish for durability |
| Fits Models | GXV160UH2 (GJABH) | HRH536 QXE | HRH536K3 HXE | HRH536K3 QXE | HRH536K4 HXEH | HRH536K4 QXEH | HRD536K4 QXEH |
