Description
Overview:

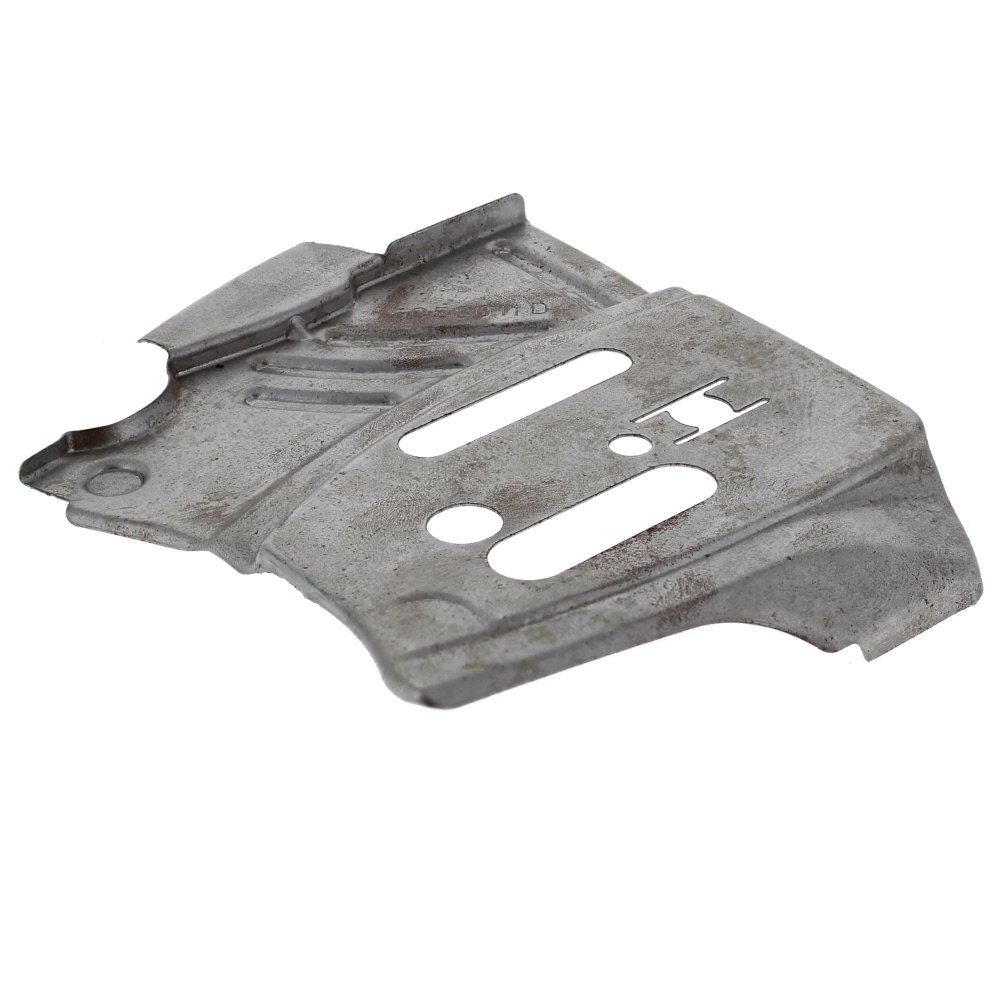

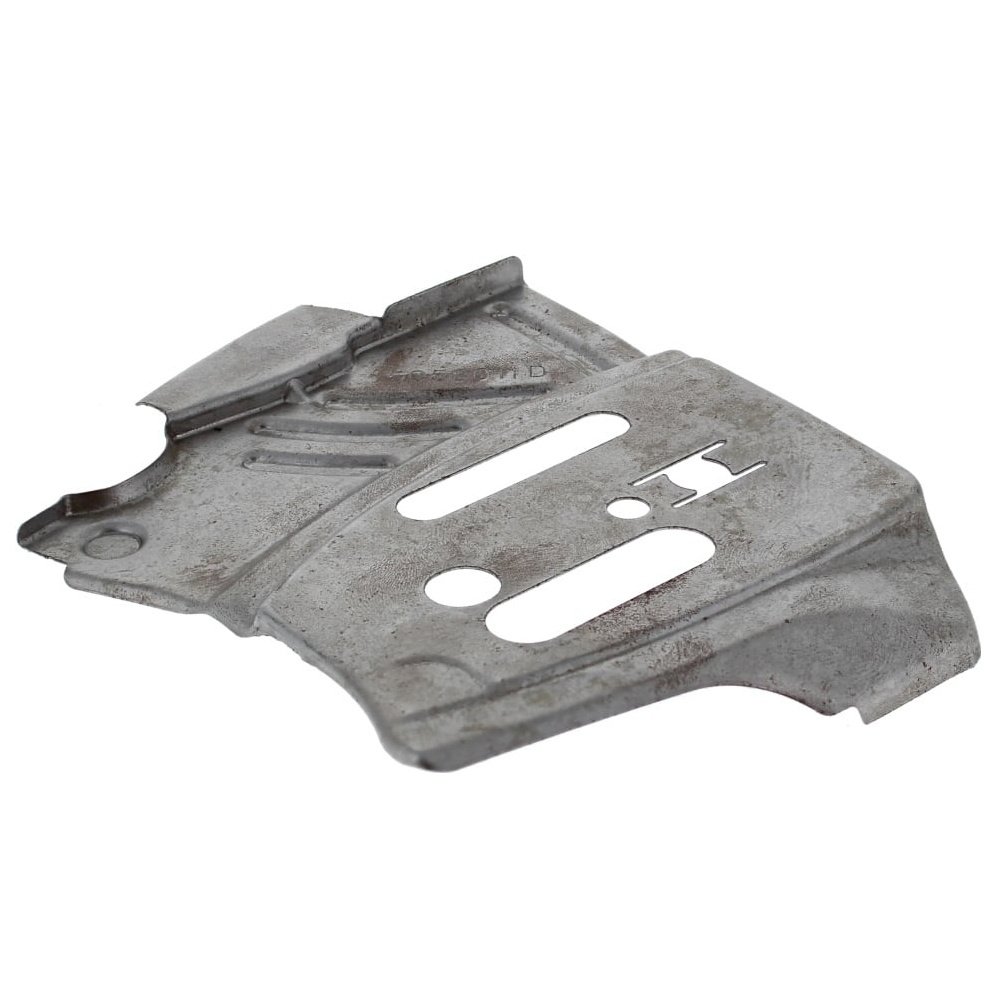

The Chain Guide Plate is a genuine Husqvarna component that supports accurate chain tracking and smooth running on professional chainsaws. Made from robust stamped steel with a corrosion‐resistant finish, it sits beside the guide bar mount to keep the chain correctly aligned between the bar and drive sprocket. This helps reduce wear on the chain, bar and clutch cover while maintaining cutting performance. Designed for Husqvarna 555 and 560 series machines, it is an exact‐fit replacement to original equipment. Supplied to OEM specification under Husqvarna reference 505 20 11-01 (MPN 505201101), it is suitable for regular maintenance or restoring performance after impact damage or heavy use. A practical choice for users who need consistent, reliable chain guidance in demanding work.
Key Features:
- Genuine Husqvarna OEM part for assured fit and compatibility
- Durable stamped steel plate with corrosion‐resistant finish for long service life
- Maintains precise chain alignment for smoother cutting and consistent performance
- Helps minimise wear to bar, chain and drive components
- Direct replacement using existing fixings; no modifications required
- Stable chain guidance supports reliable operation in tough conditions
- Engineered to integrate neatly under the clutch cover and bar area
- OEM reference: 505 20 11-01; MPN: 505201101
Typical Applications:
Used during felling, snedding, logging, firewood preparation and site clearance where sustained, accurate cutting is needed. Ideal for routine servicing after bar or chain changes, and for restoring alignment if the original plate is bent or worn. Suitable for professional forestry crews, arborists, landscapers and home users who want dependable chain tracking and reduced component wear.
Also known as:
Chain plate, guide plate, bar guide plate, chain guide shim, alignment plate for chainsaws. These terms describe the thin steel plate that supports the chain's path at the bar mount, helping keep the chain running true for safer, smoother cutting.
Fits Models:
Husqvarna 555
Husqvarna 560
Husqvarna 560XP
Husqvarna 560XPG
Jonsered CS2258
Jonsered CS2260
Alternate Part Numbers:
505 20 11-01, 505201101
Product Specifications
| L&S Part No. | 505 20 11 01 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Husqvarna |
| OEM No. | 505201101 |
| Unit of Sale | 1 |
| Applications | 555, 560, 560XP, 560XPG, CS2258, CS2260, Husqvarna 555, Husqvarna 560, Husqvarna 560XP, Husqvarna 560XPG, Husqvarna560XP, Husqvarna560XPG, JonseredCS2258, JonseredCS2260 |
| Machine Type | Chainsaws |
| Fits Brands | Husqvarna |
| Fits Models | 555 | 560XP, 560XPG |
