Description
Overview:

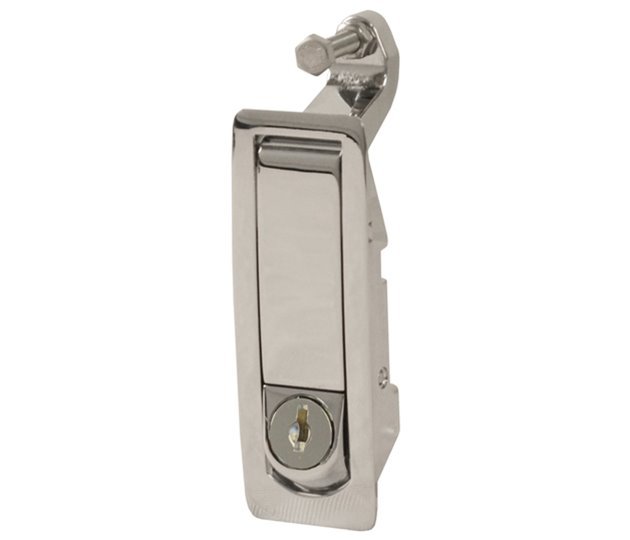

The Chrome Raised Compression Latch (MPN 800 1225) is a locking, keyed‐alike latch for secure closure and rattle control on access doors, hatches and panels. The body is zinc alloy die‐cast with a chrome plated finish, supplied with a zinc‐plated pressed steel clamp plate to engage the rear of the panel. Its compression action pulls the panel tight against the seal to help minimise vibration in service. The latch measures 109 mm long by 33.5 mm wide (4.29 in x 1.32 in) and covers a broad adjustable grip range of 1-24 mm (0.04-0.94 in) to suit different door and frame offsets. Chosen where a raised pattern is preferred over a flush style, it is suitable for use on commercial vehicle bodywork and equipment enclosures across transport, plant and auxiliary applications.
Key Features:
- Zinc alloy die‐cast body with chrome plated finish
- Locking, keyed alike cylinder for common keying across multiple units
- Raised compression action to pull panels closed and reduce rattle
- Overall length: 109 mm (4.29 in)
- Body width: 33.5 mm (1.32 in)
- Adjustable grip range: 1-24 mm (0.04-0.94 in)
- Supplied with zinc‐plated pressed steel clamp plate
- Suitable for vehicle and equipment enclosures on road and plant fleets
Typical Applications:
Used on commercial vehicles and equipment including trucks, trailers and buses, as well as gensets and plant installations. Commonly fitted to toolboxes, storage lockers, cab compartments, horsebox lockers and side or rear access doors where a secure, keyed latch with compression is required.
Also known as:
Compression cam latch; Raised compression catch; Toolbox compression latch; Keyed‐alike panel latch
Product Specifications
| L&S Part No. | 800 1225 |
|---|---|
| Unit of Sale | 1 |
