Description
Overview:

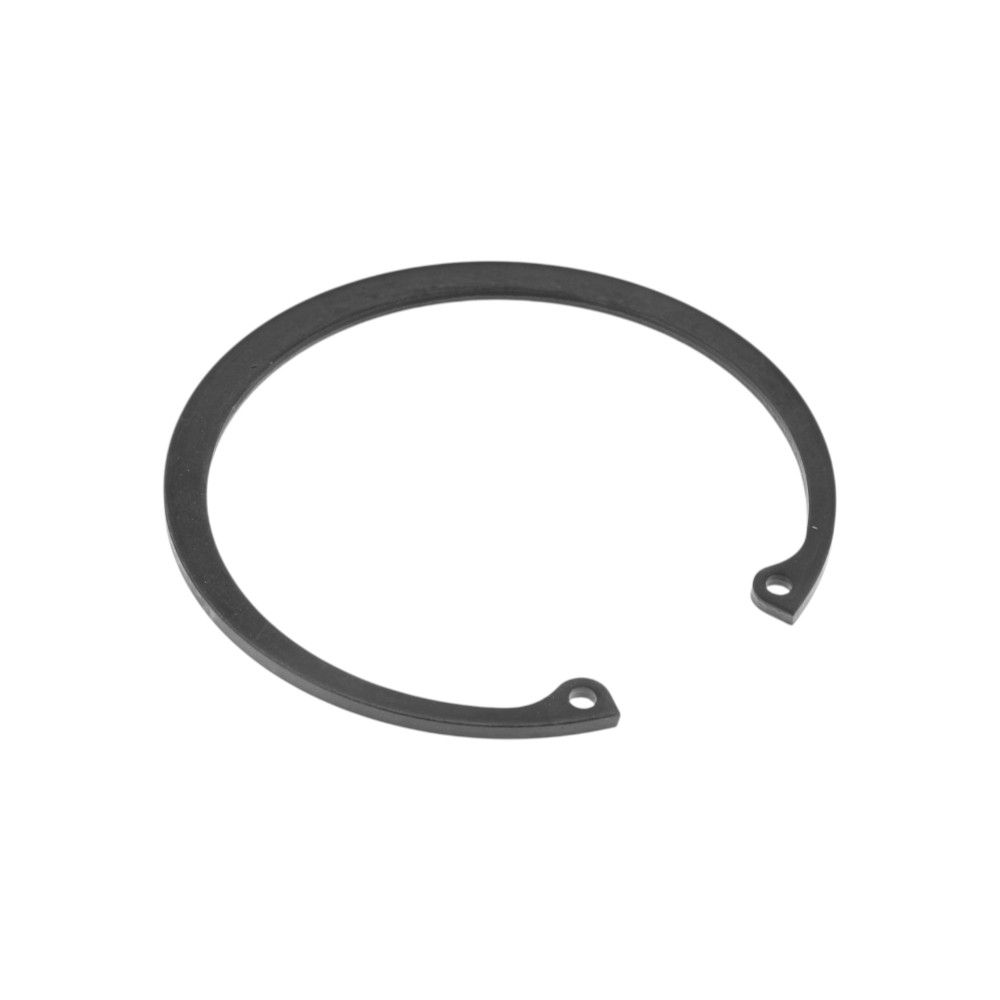

The Circlip Internal for Bomag BVP 10/36 and BVP 12/50, Manufacturer Part Number (MPN) 09224400, is a Genuine Bomag retaining component for bores. Made from high‑strength, heat‑treated spring steel, it fits into a machined groove to hold bearings, bushes and gears securely inside housings. This internal circlip (sometimes called a snap ring) is engineered to OEM tolerances for a precise fit and reliable component retention in Bomag plate compactors, rammers and rollers. It is suitable for routine maintenance, repair and overhaul where restoring factory specification is important. Use appropriate circlip pliers for installation and confirm the correct size via your Bomag parts diagram. Genuine Bomag part for consistent performance and long service life in demanding site conditions.
Key Features:
- Genuine Bomag OEM part for assured compatibility and quality
- Direct replacement for OEM/MPN 09224400
- Internal circlip for bores: secures components in a housing groove
- High‑carbon spring steel construction for strength and elastic recovery
- Heat‑treated for durability under vibration and shock loads
- Precise thickness and profile to match OEM groove dimensions
- Chamfered lug holes for easy fitting with circlip pliers
- Helps prevent axial movement of bearings, gears and bushes
- Suitable for plate compactors, rammers and other Bomag machinery
- Ideal for maintenance, repair and overhaul to restore factory spec
- Check bore/groove and parts diagram before ordering to ensure correct size
Typical Applications:
Used to retain bearings, gears, sleeves and bushings within housings on Bomag equipment. Typical locations include exciter housings on plate compactors, gearbox or clutch housings, and other internal assemblies subject to vibration. Helps maintain correct axial location of rotating parts, reducing wear and preventing component drift during operation.
Also known as:
Internal C‑clip, Seeger ring, bore locking ring, internal retaining clip, circlip for bore, locking ring for housings.
Fits Models:
BVP 10/36, BVP 12/50, BVP 18/45, BVP 18/45D, BP 10/35, BP 10/36-2, BP 12/40, BP 12/50A, BP 15/36-2, BP 18/45 D-2, BP 25/50, BP 6/30, BP 8/34, BPS 18/45, BR 90, BR95
Alternate Part Numbers:
09224400
Product Specifications
| L&S Part No. | 09224400 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Bomag |
| OEM No. | 09224400 |
| Unit of Sale | 1 |
| Machine Type | Rammers, Compactors |
| Fits Brands | Bomag |
