Description
Overview:

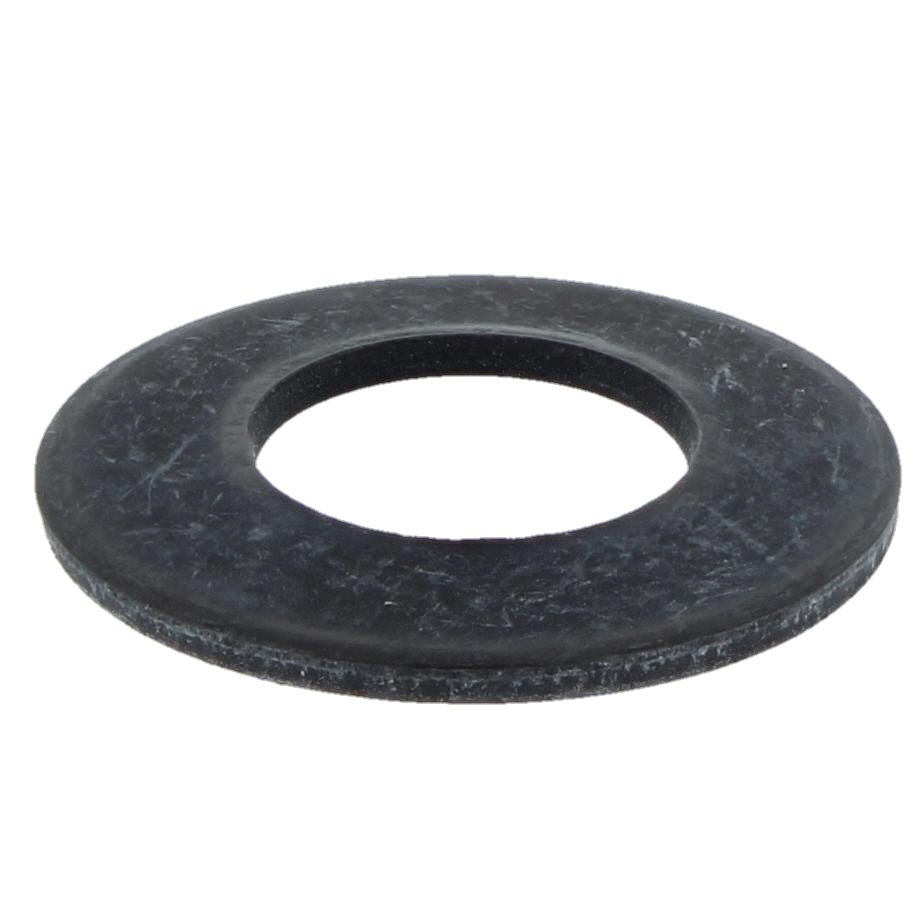

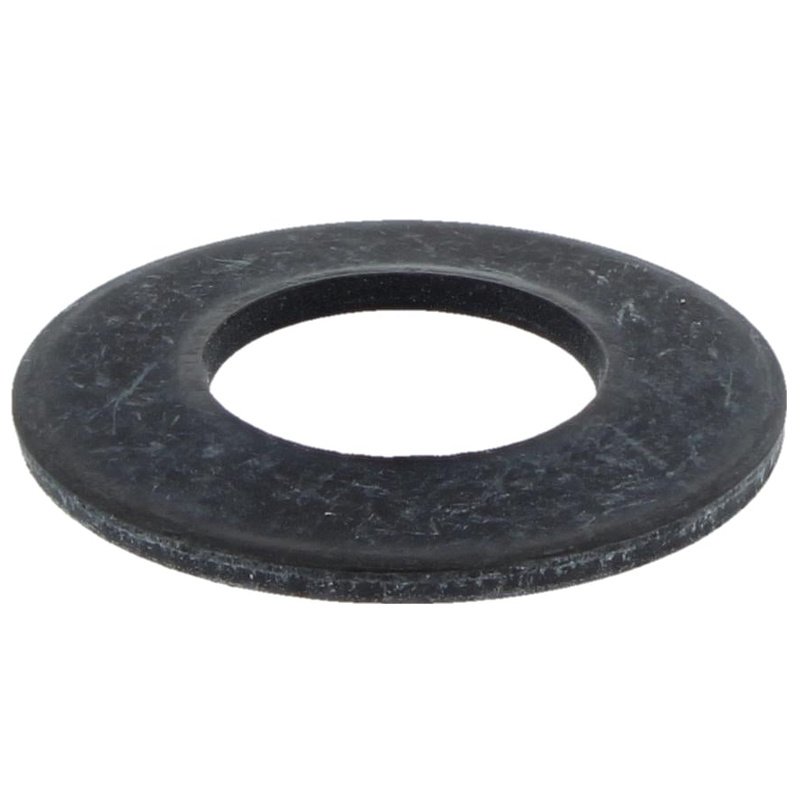

The Cup Spring for Stihl hedge trimmers is a small but critical component that helps maintain correct preload in assemblies, keeping moving parts aligned and working smoothly. This genuine Stihl part is formed from durable spring steel in a cup (conical) shape to deliver consistent tension in compact spaces. It is engineered to Stihl specifications for reliable fit and function on compatible machines, including the HSE 41 and HSE 51. By restoring the spring force in worn or damaged setups, it supports smooth operation of controls and linkages, helping your trimmer cut cleanly and perform as intended. Genuine Stihl quality ensures the correct thickness, hardness, and profile for long service life and dependable performance.
Key Features:
- Genuine Stihl OEM part for assured compatibility and fit
- Robust spring steel construction for long-lasting tension and resilience
- Cup (conical) profile provides strong preload in a compact form
- Helps restore smooth operation of handles, linkages, and related assemblies
- Consistent performance supports clean cutting and reliable control
- Precision-made to the correct Stihl dimensions and tolerances
- Suitable replacement for worn or deformed cup springs
- Easy to fit with basic hand tools on compatible models
Typical Applications:
Used to provide preload and take up play in assemblies within Stihl hedge trimmers and related tools. Typical locations include control linkages, handle or trigger mechanisms, and other interfaces where a compact spring force is required. Replacing a fatigued or flattened cup spring can reduce vibration, improve control feel, and help maintain consistent cutting performance during regular garden maintenance or professional trimming work.
Also known as:
Cup washer, Belleville washer, conical spring washer, coned disc spring, spring washer (cup type), hedge trimmer cup spring, Stihl cup spring 9485 648 1560.
Fits Models:
BT 45, HE 400, HE 450, HLA 65, HLA 66, HLA 85, HLA 86, HSE 41, HSE 51
Alternate Part Numbers:
9485-648-1560, 94856481560
Product Specifications
| L&S Part No. | 9485 648 1560 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 94856481560 |
| Unit of Sale | 1 |
| Applications | BT 45, BT45, HE 400, HE 450, HE400, HE450, HLA 65, HLA 66, HLA 85, HLA 85 Hedge, HLA 86, HLA65, HLA66, HLA85, HLA86, HSE 41, HSE 51, HSE41, HSE51 |
| Machine Type | Electric Hedgetrimmers, Long Reach Hedgetrimmers, Drills |
| Fits Brands | Stihl |
| Fits Models | HSE41, HSE51 | BT 45 | HE 400 | HE 450 | HLA 66 | HLA 85 Hedge | HLA 86 | HLA 65 |
