Description
Overview:

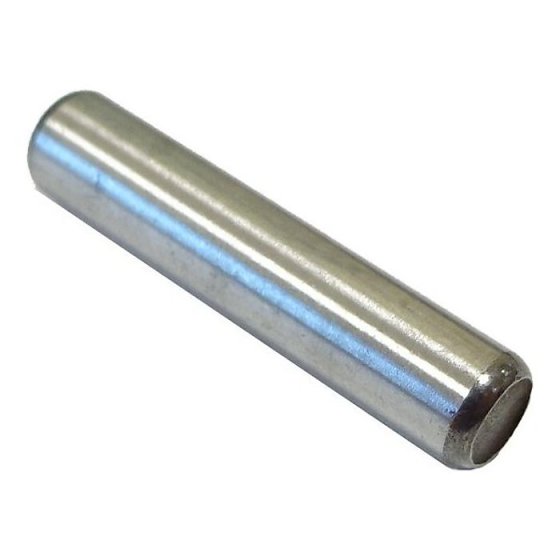

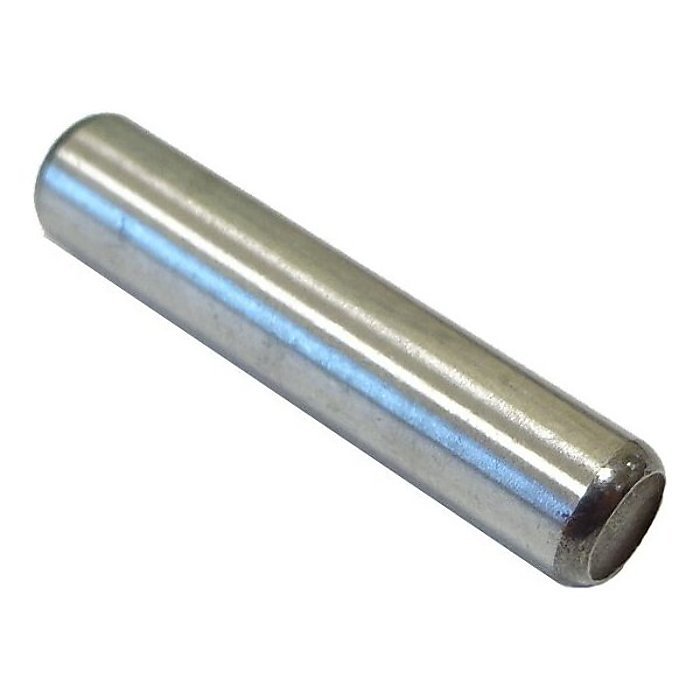

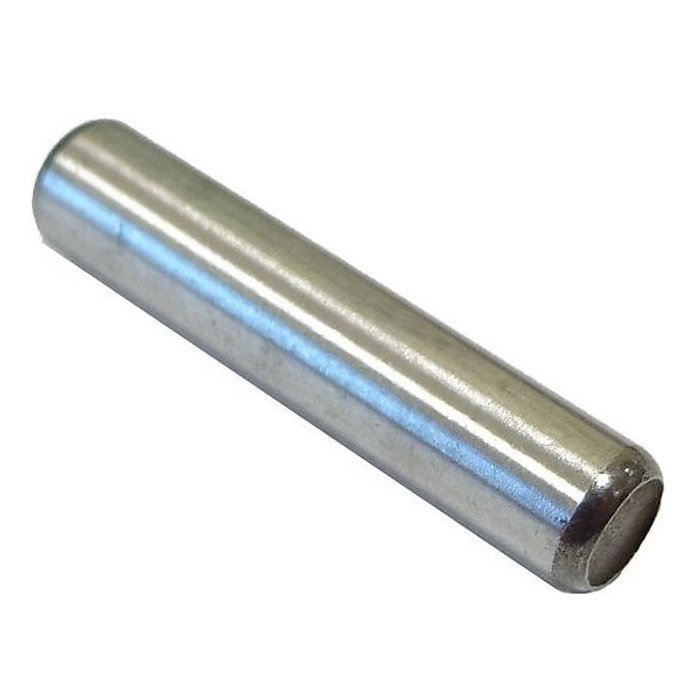

This Cylindrical Pin 5x24 is a genuine Stihl OEM part designed to secure and align components in your machine for smooth, reliable operation. Made from durable metal and precision-machined to 5 mm diameter by 24 mm length, it provides the correct fit where a locating pin is required within the assembly. It is suitable for selected Stihl hedgecutters and chainsaws, including the HS 45 and MS 200, where accurate positioning of moving parts helps reduce play and wear. Use it as a like-for-like replacement when the original pin is worn, bent, or missing to maintain performance and protect surrounding components. Its straightforward, cylindrical profile supports easy installation during routine maintenance or repair work on compatible Stihl equipment.
Key Features:
- Genuine Stihl OEM part for assured compatibility and reliability
- Precision size: 5 mm diameter x 24 mm length to match factory specification
- Durable metal construction designed to withstand repeated loads in service
- Cylindrical, straight-profile pin for accurate alignment of mating parts
- Helps maintain smooth operation and reduces excess vibration and wear
- Straightforward to fit with standard hand tools during routine servicing
- Direct replacement for worn or missing pins on listed Stihl models
- Supports long service life when installed in clean, correctly prepared bores
Typical Applications:
Used to locate and secure components within hedgecutter and chainsaw assemblies during repair or maintenance. Suitable when refurbishing linkages, housings, or drive-related parts on compatible Stihl machines, restoring correct alignment and dependable performance.
Also known as:
Dowel pin, locating pin, alignment pin, guide pin, machine pin, hinge pin, fixing pin, hardware pin.
Fits Models:
020, 020 T, 020T, HS 45, HS 52, HS45, HS52, MS 200, MS 200 T, MS200, MS200T
Alternate Part Numbers:
9381-651-2640, 93816512640
Product Specifications
| L&S Part No. | 9381 651 2640 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 93816512640 |
| Unit of Sale | 1 |
| Applications | 020, 020 T, 020T, HS 45, HS 52, HS45, HS52, MS 200, MS 200 T, MS200, MS200T |
| Machine Type | Hedgetrimmers, Chainsaws |
| Fits Brands | Stihl |
| Fits Models | MS200, MS200T | HS45 | 020, 020T | HS52 |
