Description
Overview:

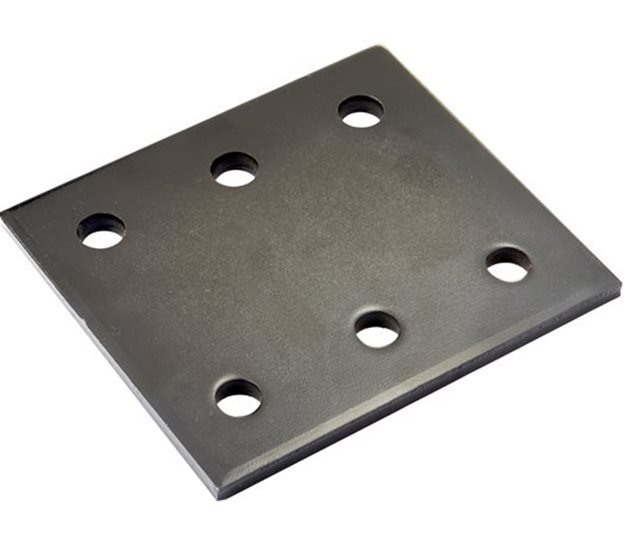

This DAF LF body mounting retainer plate (MPN 800 1330) is a pressed mild steel plate used within the body-to-chassis mounting assembly on LF range trucks. Designed for bolt-on installation, it serves as a robust backing/retaining plate for the body mounting bracket and can be used in upper or lower positions as required by the assembly. The plate measures 150 mm long (5.91 in) by 135 mm wide (5.31 in) with an 8 mm thickness (0.31 in), and is finished in a durable black powder coat to resist corrosion in service. It is configured with six mounting holes sized Ø13.5 mm (0.53 in) to suit typical body mount hardware. Suitable for DAF LF Euro 4, Euro 5 and Euro 6 models, it is commonly used on commercial trucks and relevant trailer body systems where compatible.
Key Features:
- Pressed mild steel construction for strength and durability
- Black powder-coated finish for corrosion resistance
- Dimensions: 150 mm (5.91 in) length x 135 mm (5.31 in) width x 8 mm (0.31 in) thickness
- Six mounting holes: Ø13.5 mm (0.53 in) for bolt-on fixing
- Suits DAF LF Euro 4, Euro 5 and Euro 6 applications
- Intended for use as a retainer/backing plate in a body mounting bracket assembly
- Applicable to truck and trailer body mounting systems
Typical Applications:
Used on DAF LF distribution chassis to retain and support the body mounting bracket where the body is secured to the chassis rails. Suitable for maintenance or replacement of body mount hardware on commercial trucks and compatible trailer installations.
Also known as:
Body bracket backing plate
Chassis body mount back plate
Six-hole body mount plate
Body mounting base plate
Body bracket retention plate
Product Specifications
| L&S Part No. | 800 1330 |
|---|---|
| Unit of Sale | 1 |
